Japan brand ISUZU 14M-16M hydraulic aerial working platform truck for sale

Product Details

Product Description

Item	Name	Model/type
1	Product brand	Isuzu aerial working platform truck for sale
2	Product name	CLW5061JGKQ6
3	Chassis model	QL1070BUHWY
4	Max working height	14m(person height 1.7m included)
5	Main technical parameters for working	Distance between ground to the working platform: 12.3m Max working range of the working platform≥6.46m Working range at the max working height of the working platform≥2.05m Working height at the max working range of the working platform ≥8.6m Max loading capacity of the working bucket: 200kgs
	Outriggers	type：H type outriggers Nos.：4 Operating way：Independently adjustable and can also be linked Horizontal span：2680mm Longitudinal span：3050mm
	Hook	Max lifting mass ≤1000kg，Safety value: 900kg。 Max lifting height: 7.2m
	Main operation	Operation position: turntable and working bucket- double working position operation Operation mode: Manual hydraulic or electronic control operation
6	Hoarding and platform board	Steel toolbox and hoarding, Pattern non-slip walking board, Stainless steel railing
7	Boom structure	3 sections folded crane boom
8	Slewing device	Two-way 360° continuous rotation
9	Engine model	KH1CN6LB ISUZU/120hp diesel Euro 6 engine
10	Overall dimension(LWH)	7400×2000×3100
11	Total mass	5600kg
12	Curb mass	5275kg
13	wheelbase	3360mm

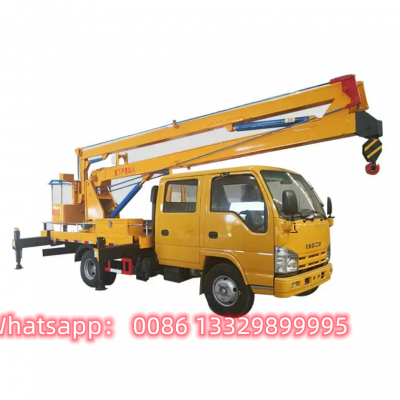

ISUZU 4*2 14m truck mounted aerial working platform adopts ISUZU double cabs driver cab with original air conditioner and power steering, 3360mm wheelbase, 7.00R15 rail tires*6+1, air cut braking, 5 speed gearbox, 4KH1CN6LB 88KW/120hp diesel Euro Ⅵ engine, ABS, etc.
The max working height of ISUZU double cabs folded truck mounted aerial working platform is 14m( person height of 12.3m included).
3 sections folded boom, The working bucket and the turntable are operated by dual working positions, electro-hydraulic control, with remote flameout. The working arm rotates 360 degrees, four hydraulic outriggers, with hooks, a safe lifting weight of 900kg, a working bucket with a load limit of 200kg, and a lighting lamp inside the bucket. Steel toolbox, pattern anti-skid walking table, stainless steel fence.
4. Main features:
1. The boom and outriggers are made of low-alloy Q345 profiles, with no welds around, beautiful in appearance, large in force and high in strength;
2. The front V and rear H-type four hydraulic outriggers have good stability and a larger bearing surface. Each hydraulic outrigger is individually adjustable and can be adjusted according to the working ground environment. Even if the ground is uneven, the whole vehicle can be stabilized by adjusting the outriggers.
3. The working bucket is equipped with night operation lights to make night operation safer.
4. The turntable can rotate 360°, using a column reducer, the torque is larger and safer than the worm gear.
5. The hydraulic system is equipped with a hydraulic locking system, whose function is to lock the cylinder in place after reaching the required position to prevent accidents.
6. Use manual and electric integrated dual-purpose electromagnetic electric control multi-way valve to ensure that even if the circuit fails, manual operation can still be used to ensure the safety of personnel working at heights.
7. Stepless speed regulation is realized through the throttle valve during the boarding operation;
8. The hanging basket adopts external tie rod mechanical leveling, which is more stable and reliable;
9. The turntable and the hanging basket are equipped with start and stop switches, which are easy to operate and save fuel;
10. The rear outriggers of the vehicle are equipped with warning signs to improve the safety of warnings during vehicle operation.
If you're interested in our aerial working platform truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: 0086 13329899995.
More pictures of ISUZU double cabs 14m-16m aerial working platform truck is as below.
