Touch Screen High Performance Dynamic Online Check Weigher Checkweigher Weight Checking Machine Checkweighers Price with Mettler Toledo Load Cell and CE

Product Description

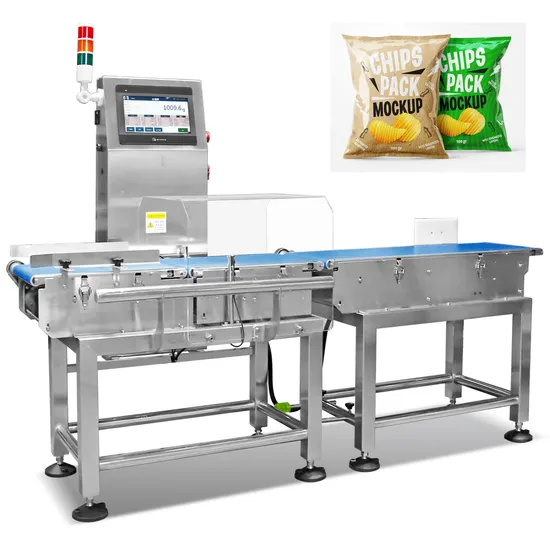

Touch Screen High Performance Dynamic Online Check Weigher Checkweigher Weight Checking Machine Checkweighers Price with Mettler Toledo Load Cell and CE Product show
Paramters

Model	TT-CW300
Power supply	AC220V±10% 50Hz (60Hz)
Max. weighing	5000g
Weighing accuracy	±0.5g to ±2g
Maximum speed	80BPM
Power Rating	0.4kw
Weighing resolution	0.1g
Conveying speed	30 to 90 meters per minute
Available material weighed size	≤300mm(L) x 290mm(W)
Conveying belt size	446mm(L) x 300mm(W)
Control system	High speed A/D sampling controller
Machine dimension	1811mm(L) x 810mm(W) x 1353mm(H)
Operating director	Facing to the machine, left-side in, right side out/ right-side in, left-side out
Rejecting method	Pusher(other options: air blow, swing bar, turning plate, other special method)
Air Compressor requirement	0.6 to 1 Mpa
Air pressure Interface	Diameter 8mm
The working environment	Temperature: 0ºC to 40ºC Humidity: 30% to 95%
Frame material	Stainless steel 304
Pre-set products no.	99

Product Feature
•Customization:
The machine can be customized as per the sizes, weight and characteristics of the products checked.
OEM service is available for us. Our professional designer would make your private idea into being.
•Easy Integration:
Adjustable height and modular design is available.
•Sturdy and robust construction:
Stainless Steel 304 frame ensures precise and stable measurement during dynamic working period and hygiene.
•Easy to use:
Touch screen operating system is easy to be used with user password protection.
LCD touch screen offers both Chinese and English interface and easy to be used. Interface with multi-languages is available.
•Easy to clean:
The belt made of food grade material, which is convenient to be assembled and disassembled, is easy to be cleaned.
•Variable Speed:
Speed can be changed depend on application situation by frequency control motor.
•High Speed and Accuracy:
High grade load cell with ultra-fast processor ensures excellent weight checking accuracy and speed.
•Automatic mean sampling function/Self-learning:
No manual setting of upper and lower limits, automatic sampling can take the mean value.
Parameters setting recovery function is available.
Product parameters quick switch is available.

•Reporting Data:
Real time reporting data, which can grasp production status at any time and be exported to Excel file, is available.
Storing 1 year production data in USB disk is available too.
•Rejection:
Customized kinds of rejections are available.
•Intelligent:
Manual or automatic reset as well as dynamic zero tracking is available.
The weight value can be corrected automatically.
•Centralized control:
It can control many check weighers by a computer or man-machine interface.
•Different Detection Modes:
Default Mode, Static Mode and Power saving mode are available.
•Faulty report:
The system can detect and report faulty part of the system makes it easy to diagnose problems.
•Connectivity: Standard output ports, RS-485 and RS-232, can export data and connect to PC.
It can connect external devices, such as labeling machines, printers, scanners, computers, etc.
•Waterproof and Brand:
Waterproof design for anti-erosion from liquid.
IP65 for all components which are imported from world famous supplier is available.
---------------------------------------------------------------------------------------------------
Please Click Here for More Details
Application Check weigher machine can check packed products' weight online whether their weights are overweight or underweight and reject the unqualified products. That ensures the weight of products meet standard.
It is used in automatic packing production lines.

Check weigher is widely used in the kinds of foods and other kinds of products which are packed in bags, sachets, boxes, jars, cans, cartons, bottles, cases, etc.
Optional Rejections
---------------------------------------------------------------------------------------------------
Please Click Here for More Details
Cases
Company Profile
FAQ 1.What industry is CW300 check weigher suitable for?
CW300 check weigher suitable for electronics, pharmacy, food, beverage, health products, cosmetics, light industrial and agricultural products, etc.
2.What is the function of CW300 check weigher?
CW300 check weigher not only is used to check if a single finished product is within the preset target weight but also to check missing parts of a full carton(missing bottles, boxes, pieces, bags, cans, etc.)
3. How can we choose the machinery?
Please contact our sales, provide products and your requirements of them, we will give you solution with suitable machine and offer the most favourable quotation to you accordingly.
4. What is the leading time?
Regular machine can be delivered within 20-25 days. For customized machines, it need be evaluated depend on the project. 5.How long is the warranty period? Whole machine 1 year. In warranty period, the new parts which are free will be sent to you to replace the broken ones.
6. What are the payment terms? T/T, L/C, Western Union, or 100% L/C at sight. T/T 30% as deposit, and 70% before delivery. We will show you the photos and videos of the products and packages before you pay the balance.
7. Is the updated production process information available? After order is confirmed, the updated production details such as products photos and videos will be available for you.The machine should be delivered after we test it and confirm its operation with you.
8. What kind of transportation we can provide? Sea shipping, air transportation and international express.We solemnly promise: equipment and material contact parts are 304 stainless steel material
or food grade plastic, in line with the health requirements.We warmly welcome and sincerely invite you to visit our factory. We will pick you up at airport, and the best accommodation will be provided for you. ---------------------------------------------------------------------------------------------------
