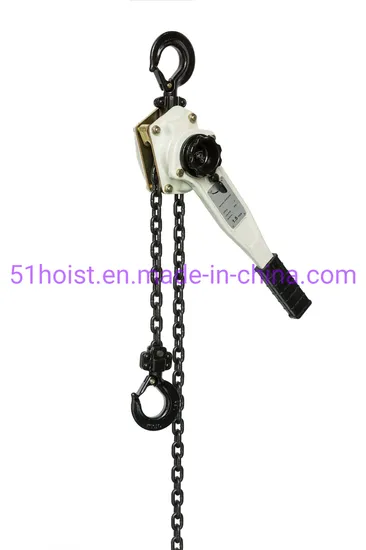

Shuang Ge Brand Hsh-E Lever Block0.5t-9t

Product Description

Capacity: 0.25T-9TGrade 80 load chain-wafios; Safe factor 4:1.More than 3 rounds inspections before export out.Excellent quality, top in China, always the leader.Largestand best chain machine produce group in China, which imported from Wafios Germany and Italy.Excellent after-sale serve, market agent support and protection.Sample order and trail order are acceptable.AcceptOEM, more than 20 years OEM experience for world brand company.

Model	Capacity (t)	Standard lift(m)	Running test load(T)	Headroom (mm)	Load chain		Effort required to lift max load(N)	Main Dimensions(mm)					Packing Size (cm)	Extra weight per meter of extra lift(kg)	Lenghth of leverhandle (mm)	Net weight (kg)
					Falls of Chain	Dia+Pitch (mm)		A	B	C	D	E
HSH-E0.5	0.5	1.5	0.75	260	1	5	340	105	78	95	35	28	35x10x11	0.52	300	4
HSH-E0.75	0.75	1.5	1.125	325	1	6	140	148	90	136	35	29	37x13x17	0.8	280	7
HSH-E1	1	1.5	1.5	340	1	6	250	148	90	136	40	34	37x13x17	0.8	280	7.2
HSH-E1.5	1.5	1.5	2.25	380	1	8	220	172	98	160	47	38	51x14x19	1.4	410	11
HSH-E3	3	1.5	4.5	480	1	10	320	200	115	180	54	44	54x19x22	2.2	410	21
HSH-E6	6	1.5	7.5	620	2	10	340	200	115	235	62	52	54x19x22	4.4	410	31
HSH-E9	9	1.5	11.25	700	3	10	360	200	115	340	85	56	55x29x22	6.6	410	47

FAQ
Q1:Why Choose Wuyi Lifting?
A:Wuyi established in 1952,more than 70 years experience in the chain hoist field with professional technical team.
Q2 :Can I have samples to test?
A: Yes, Sample can be sent for testing.
Q3. Q:Guarantee
A: One year
Q4: Q:OEM service
A: OEM service is available.
Q5. What's the lead time for regular order?
A: The normal delivery time is 30-45 days.
Q6. What is your payment terms?
A: 30% T/T in advance, 70% balance before shipment or L/C.
Q7. What is your terms of packing?
A: Cartons with Pallet or wooden case
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

---
