Double End Grinding Test Equipment (SCM-200)

US$1.00-2,500.00 1 set (MOQ)

Basic Info.

Model NO.

SCM-200

Automation

Automatic

Precision

High Precision

Application

Concrete Curb, Granite, Marble

Type for Grinding Machine

Disc Grinding Machine

Grinding Method

Wet Grind

Condition

New

Milling Wheel Specification

C200×c32×40mm

Weight

600kg

Transport Package

Wooden Case

Specification

1400× 1350× 1200mm

Origin

China

HS Code

84642090

Production Capacity

30 Sets/Month

Product Description

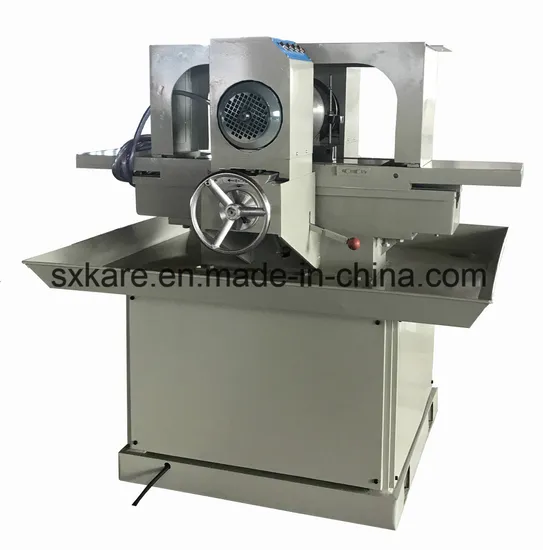

SCM-200 Double End Grinding Test Equipment
The SCM-200 Double End Grinding Test equipment is used for milling the double ends of the specimen after cutting and making the high precision specimen. There are C200 diamond milling wheels fixed on the both motion milling heads. Fix the specimen on the work table. To and fro when operating. The milling head could be used automatically, or by manual forward to grinding. The automatic forward speed is adjustable.

Grinding range	≤150×150×150mm
Milling wheel specification	C200×C32×40mm
Grinding motion head power	1.1kW×2
Error	≤0.05mm
Sample accuracy	within 100mm of depth of parallelism, planeness, verticality
Outline dimension	1400×1350×1200mm
Weight	600Kg
