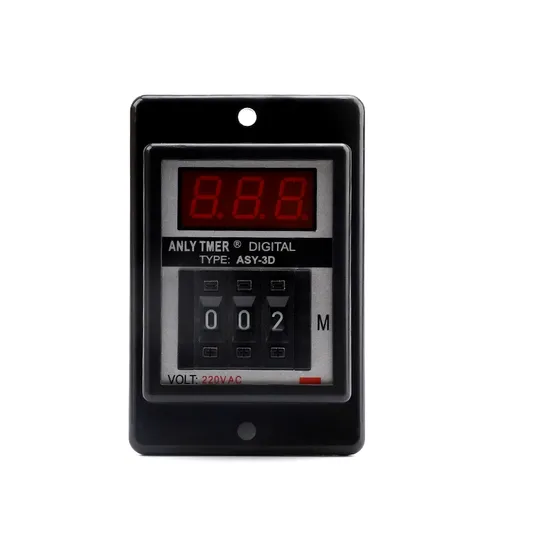

Asy-3D/2D Digital Display Time Relay Asy-3sm/2sm Delay Relay Digital Time Relay

US$4.20-5.20 100 Pieces (MOQ)

Basic Info.

Model NO.
ASY-3D/2D
Phase
1
Electricity Type
Ac
Number of Pole
2
Load
Weak Power Relay
Protective Characteristics
Enclosed Relay
Action Principle
Electromagnetic Type
Size
Subminiature
Type
Electric Parameter Relay
Transport Package
Carton Packaging
Specification
42.5cm*38cm*58cm
Trademark
ANLYTMER
Origin
Zhejiang Province
HS Code
8536490000
Production Capacity
10000

Product Description

Basicinformation
Model ASY Series Stage 1
Power Type Communication
Numberof poles
2
Principle of action Electromagnetictype Size Miniature
Type Electrical parameter relay Voltage AC/DC12VAC/DC24V,AC36V,AC110V,AC220V,AC380V
Power 50Hz/60Hz Makemethod CycleDelay
TimeRange 999S/999M Contact capacity AC220V5A(resistance)
Transport bag Carton Trademark ANLYTMER
Origin Zhejiang Production capacity 10000
Packaging and Delivery
Packing size 42.5cm*38.00cm*58.00cm
Packing grossweight 22.8.000kg

Notifications 1. Since the relay has a time recording function, please preset the delay time before powering on, and the interval between restarting the relay is ≥ 5s. 2. Please set the dial to the time you want, connect the power supply, and then the LED screen starts timing from 0, when the preset time is reached, the delay contact is changed to stop timing to complete the timing control. 3. Reset function: Please connect Terminals 1 and 3 at any time, and the relay will return to the initial state. 4. Pause function: Please connect Terminals 1 and 4 at any time, then stop timing and keep the current time. When the terminal is disconnected, the relay will continue timing. 5. Please use a shielded lead wire. When the lead wire is connected to the reset terminal or connected to the pause terminal, it is too long in a high electric field environment. Do not put voltage or ground into the reset terminals (1,3), pause terminals (1,4). Failure to do so can damage the relay.
