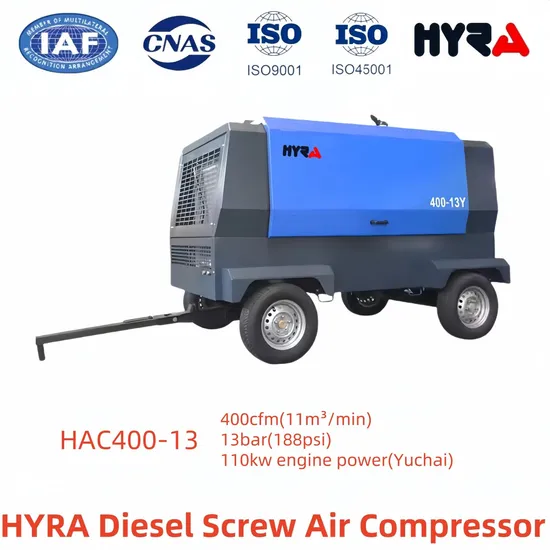

Hac400-13 400cfm Portable Diesel Screw Air Compressor 13bar 188psi Mining Air Compressor for Pneumatic Pick Portable Air Compressor

Product Description

HAC400-13Y outstanding overall performance,widely applied to hydropower, railway, ship repairing, mining, highway, spray, oil and gas field, water well drilling rig, municipal construction, etc.
1:Equipped with yuchai 110 kW engine,And intelligent control system,Precise control of fuel injection.
2:Matching high-strength single-stage compression screw.
3:The machine head adopts heavy-duty high-strength direct drive design,Ensure stable and reliable quality.
4:equipped with an intelligent monitoring system,Let you keep track of the running status of the equipment at any time,Safe and convenient.
Product Parameters

item	value
Diesel engine	110
Engine power	110
Air Delivery(m³/min)	10
Air Delivery(cfm)	400
Pressure(bar)	13
Air end	Single
Gas tank volume(L)	120
Screw machine oil volume(L)	54
Rated speed(rpm)	2400
Idling speed(rpm)	1400
Diesel engine lubricants(L)	12
Coolant volume(L)	25
Fuel tank volume(L)	150
Air capacity	400cfm
Size(mm)	3860*1900*1960
Weight(kg)	2450
Machine travel mode	Two/Four rounds - movable

Detailed Photos

model		HAC330-8Y	HAC400-13Y	HAC450-08	HAC550-16C	HAC700-18C	HAC18-18C	HAC-24/22	HAC-30/25C
Compressor	Air delivery(m3/min)	10	10	12.5	16	18	18	24/22	30
	Air delivery(cfm/min)	350	400	450	550	650	700	850/800	1100
	pressure(bar)	8	13	8	16	18	18	18/22	25
Diesel Engine	Manufacturer	YUCHAI	YUCHAI	YUCHAI	C U M M I N S	C U M M I NS	C U M M I N S	YUCHAI	C U M M I N S
	Rated power(kW)	85	110	110	157	194	157	228	264
	Rated speed(rpm)	2400	24200	2200	2000	1900	1900	2000/1850	1900
	Idling speed(rpm)	1400	1400	1400	1300	1400	1400	1300	1400
Size L*W*H(mm)		2880*1740*1760	3250*1850*1850	3250*1850*1850	3000*2020*2300	4600*2050*2410	3200*1670*2100	3460*1870*2300	3460*1960*1950
Weight(kg)		1950	2450	2450	2800	3280	3200	4200	4600
