circuit analyzer
general instructions:
This circuit analyzer is a special test device designed for AC low-voltage distribution line quick fault location. With simple operation, accurate measurement and other features, it can detect multiple problems on a line, such as causing to electric shock, electrical fire. abnormal operation of equipment, etc.
Product Description

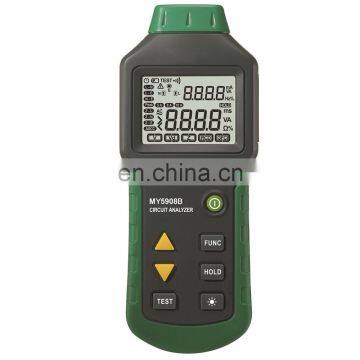

HT-5908A--Circuit Analyzer
feature
--data storage
--Quickly check the correct wiring
--Identifies proper wiring in 3-wire receptacles
--solve faulty splices and connections,
--solve incorrect wiring
--solve undersized wiring
--solve faulty GFCIs
--solve faulty or incorrectly wired AFCIs
--solve incorrect line voltage
--solve poor ground quality
--TRMS AC voltage measuremen
--ower quality monitor
Functions
--TRMS measuring AC voltage
--Artificialload 12A, 15A, 20A measuring line drop
--Measuring phase voltage, neutral line (zero line )voltage to earth, peak voitage, frequency
--Measuring phase (live line). neutral line (zero line ).earth line conductor impedance
--ldentifying 3-wire socket connection mode (zero for left and live for right, having earth line or not)
--Test the reliability of residual current device (RCD) and response action time
--Test the reliability of GFCI action and response action time
--Backlight function
-- data hold function
Specifications
| Range
| Resolution
| Accuracy
|
Line voltage
| 85.0~135.0V
| 0.1V
| ±(1.0%+2)
|
Peak Line Voltage
| 120.0~190.0V
| 0.1V
| ±(1.0%+2)
|
Voltage with Loading equipments
| 10.0~135.0V
| 0.1V
| ±(2.5%+2)
|
Line frequency
| 45.0~65.0HZ
| 0.1HZ
| ±(1.0%+2)
|
Impedance-live and Neutral & Earth
| 0.00~3.00Ω
| 0.01Ω
| ±(2.5%+2)
|
| >3.00Ω
| 0.01Ω
| NO ensure
|
Neutral-Ground Voltage
| 0.0~10.0V
| 0.1V
| ±(2.5%+2)
|
RCD trip time
| 1ms~6.5S
| 1mS
| ±(1.0%+2)
|
RCD trip current
| 30mA~37mA
| 0.1mA
| ±(1.0%+2)
|
GFCI trip time
| 1ms~6.5S
| 1mS
| ±(1.0%+2)
|
GFCI trip current
| 6mA~9mA
| 0.1mA
| ±(1.0%+2)
|
Voltage drop
| 0.1~99.9%
| 0.1%
| ±(2.5%+2)
|
Voltage drop load current
| 12/15/20A
|
General
|
Power supply
| 6*1.5V AAA Batteries
|
Product size
| 194mm*78mm*37mm/7.64"*3.07"*1.46"
|
Product weight
| 254g/0.56lb
|
Certificate
| CE/ETL/RoHS
|
Safety rating
| CAT III 300V
|
Accessories include
|
Power cord
|
|
Carry bag
|
|
Battery and user´s manual
|
|
