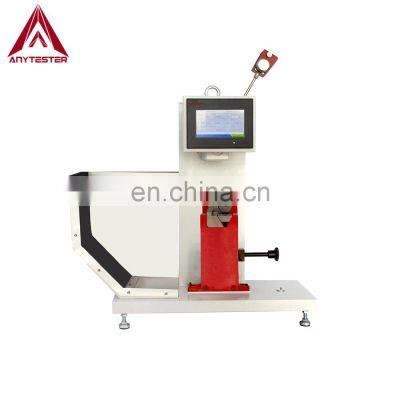

Product DescriptionAT420 Series Universal Pendulum Impact Tester is used to determine the impact toughness of non-metallic material such as rigid plastics, reinforced nylon, glass reinforced plastics, ceramics, cast stone, electrical insulating material, etc. StandardASTM D256ISO 179, 180JB/T 8761GB/T 1843Note: For more standards, please contact usSpecificationModelAT420AAT420BImpact velocity2.9m/s, 3.5m/sImpact energyIzod1J (optional), 2.75J, 5.5J11J, 22JCharpy0.5J (optional), 1J, 2J, 4J, 5J7.5J, 15J, 25J , 50JAngle of Striking edge30° ± 1° (Charpy)Resolution0.01JDistance between striking edge and top surface of jaw22.0mm±0.2mm (Izod)Corner radius of striking edgeIzodR=0.8mm±0.2mmDetails & Features★ The innovative design allows this tester to be used for both Izod and Charpy test.★ Digital type, PLC touch screen control and display★ Unique and innovative design: vice and pendulum allows operator to run alternatively Charpy and Izod tests without changing the instrument geometry.★ Impact speeds of 3.8m/s &3.5m/s as well as multiple impact energies can be generated by one pendulum.★ High mass, traditional pendulum design concentrates energy at the impact point with minimal energy loss due to vibration.★ The electrics contain a high-resolution encoder for accurate measurement of the impact angel.★ Touch screen control for quick and easy input of parameters, interactive software allows for users input regarding complete, partial hinge broken and non-broken samples.★ Results are automatically corrected for energy loss due to air and mechanical friction.★ Multiple safety protection ensures the operation safety of operators.★ Smart dimension measuring device is introduced to AT420 series impact tester, width, thickness as well as residual thickness of test sample can be exported to touch screen directly.★ Test result will be calculated automatically.Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
>>
