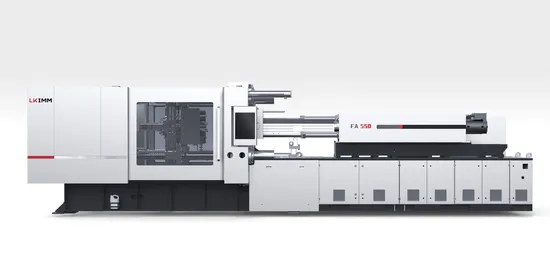

Lk Forza-III 650 Ton Plastic Injection Molding Machine

Product Description

Brief Introduction
LK group specializes in the design manufacture and sales of die casting machines, high precision injection molding machines, CNC machine centers, and industrial integrated control systems. Our market share of die casting machines is over 60%, the injection molding machine ranks among the top 3 in China.
We have more than 10 production bases worldwide, most in domestic China, 1 in Taiwan, and 1 acquired company in Italy. Our injection molding machine centers are Zhongshan in Guangdong and Ningbo in Zhejiang. There are over 60 sales and service centers in the world, and our high-quality after-sales service and 24-hour prompt response system provide customs all-around fully coverage customers service.
This series of products with advanced technology, stable performance, and excellent quality, is widely used in household appliances, auto parts, logistics, packaging, high-speed train, pipe fittings, and other fields of plastic products production, especially suitable for deep cavity and low-pressure injection molding process products production. The clamping force of the Forza series with 450 to 7000 tons.
Forza 450 ton - 7000 ton
1.The compact two-plate closure unit makes it possible to install large plates.
2.The module for quick change of molds is plug and play.
3.Excellent dry cycle performance.
4.Servo drive system for large tonnage machines.
5.Linear guide rails for the clamping and injection motion support
6.Single Cylinder injection unit.
Use of application
Crate, Pallet, Garage bin, Pail, Automotive, Electrical Appliances, Car Body, Power train, Interior, Home appliances
products Display
Technical Parameter List

	ITEM	UNIT	FA650
Injection Unit	Injection Device		Injection Unit 1				Injection Unit 2
	Injection System		3500			5000
	Shot Weight(ps)	g	1527	1737	2199	2271		2546	3143
	Screw Diameter	mm	75	80	90	85		90	100
	Injection Volume	cm^3	1678	1909	2416	2496		2798	3454
	Injection Pressure	Mpa	210	185	146	204		182	147
	Screw L/D Ratio	L/D	24	23	20	24		22	20
	Injection Rate	cm^3/s	586	678	858	615		690	852
	Screw Speed	r/min	146			130
	Hopper Capacity	L	125			150
Clamping Part	Clamping Force	KN	6500
	Die Height(Min-Max)	mm	400-950
	Max.Daylight	mm	1750
	Space Between Tie Bars	mm	1050*910
	Ejector Stroke	mm	250
	Ejector Force	KN	195
Others	Pump Motor Capacity	KW	41.4+47.7
	Max. Working Pressure	Mpa	17.5
	Oil Tank Capacity	L	1100
	Heating Capacity	KW	39			45
