530ton Battery Cabinet/ Power Box Injection Molding Machine Stable Performance, High Quality

Product Description

530ton Battery Cabinet/ Power Box Injection Molding Machine (Model: ZX-530)

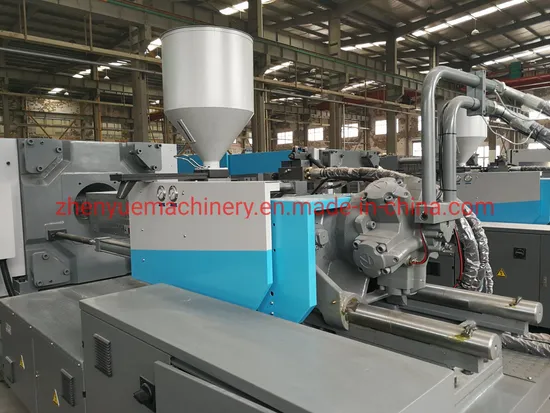

1,Photo

ZX-530	Injection Unit Date		A	B	C
	Screw diameter	mm	80	85	90
	Screw L/D ratio	/	22.3	21	19.8
	Theoretical shot volume	cm3	2136	2412	2704
	Shot weight(PS)	g	1965	2219	2487
	Injection rate	g/s	425	480	538
	Max.screw speed	rpm	140
	Clamping Unit
	Clamping force	KN	5300
	Toggle stroke	mm	800
	Space bettween tie bars	mm	830x830
	Min.mold thickness	mm	330
	Max.mold thickness	mm	800
	Hydraulic ejection stroke	mm	210
	Hydraulic ejection force	KN	126
	Others
	Hydraulic system pressure	Mpa	17.5
	Pump motor	kw	56.5
	Heating capacity	kw	34.9
	Oil tank capacity	L	1000
	Machine dimensions	m	9.1x2.1x2.5
	Machine weight	Ton	19.7

2, Technical Parameter
4, Machine Dimension (ZX-530)
5, Technical Characteristics
6, Machine Factory
7, Contact Information
Contact Person: Mr. Tony
Comapny: Ningbo Zhen Yue Machinery Co.,Ltd.
Address: No.39, Lane 158, Huangcheng West Road, Ningbo, China.
Zip Code: 315012
Mobile: +86 13656841356
Tel: +86 574 87082687
Website: zhenyuemachinery.en.made-in-china.com
Remark:
1, the company reserves the right to revise all information (including word, photo) above.
2, due to technology development, the machine design or specification would be changed without any prior notice.
3, if you need CE machine, please tell us in advance of order. Otherwise, we provide normal machine (not CE machine). CE machine is special and expensive.

---
