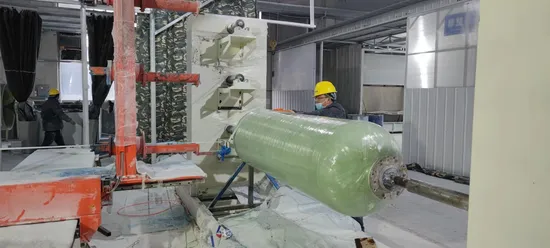

Yaskawa AC Servo Motor System Controlled RO Tank Winding Machine, Production Line

Product Description

I. Company Profile
Hengshui Fangchen FRP Equipment Technology Co., Ltd. is a scientific and technological enterprise specializing in the development and production of FRP equipment. Since its establishment, the company has been committed to the research and development of FRP equipment, and has successfully produced the fourth generation winding equipment so far. The technical level occupies a leading position in the same industry in China, and the equipment produced is sold all over the country. Has achieved a good reputation.
II.Main performance indicators and technical parameters:
The 4VFW-500 micro-control winding equipment produced by our company is a high-tech mechatronics product. The whole winding process is controlled by microcomputer program, which has the characteristics of beautiful line shape, high accuracy and convenient operation and use. There are major innovations in the software: the cone is wound with equal wall thickness, saving raw materials and reducing costs.
This series of winding machine numerical control system adopts 32-bit high-performance CPU and super large-scale programmable device FPGA. Real-time control and hardware interpolation technology ensure the high efficiency of the system with μm precision. Editable PLC makes the logic control function more flexible and powerful. Data transmission is more reliable and accurate.
A. Full digital control
All-digital data transmission is adopted between the numerical control system of this series winding machine and other control units (such as servo drive unit and IO module), which not only avoids data transmission errors caused by external interference during data transmission, but also improves data transmission speed. Data transmission is more reliable and efficient.
B. The latest G code numerical control technology
Numerical control G code technology has the characteristics of digitalization, openness, interoperability and interchangeability, and strong adaptability to field equipment environment. The application of bus technology can save hardware configuration and simplify the installation and maintenance of lines.
Because the control equipment has the alarm function of each floor, and can send the relevant diagnosis and maintenance information to the control system through digital communication, it is convenient to query the operation, diagnosis and maintenance information of all equipment, so as to analyze the cause of the fault early and solve the fault quickly, and shorten the maintenance downtime. At the same time, due to the simplified system structure and simple wiring, the workload of maintenance is also reduced.
C. High reliability and high performance
All the core hardware of the numerical control system adopts the products of internationally renowned manufacturers, and the production adopts advanced chip technology, and it leaves the factory after passing strict tests. After years of technical accumulation, the core technology of the control system software of winding machine has been repeatedly verified by many models, which has the characteristics of high control accuracy, reasonable and efficient winding algorithm, good winding effect and high reliability.
D. system interface with unified operation style and openness
Having a friendly human-computer interaction interface is an important index for evaluating user experience. After repeated verification by various models and feedback from different users, we have repeatedly revised the relevant details of system operation to make the system operation easier and more convenient. In addition, the system design has the characteristics of openness, and different customers can customize and develop their own exclusive operation interface according to different production process requirements.
E. Integrated fully enclosed structure and fan-free dustproof design.
Simple and compact structure and easy installation is a trend of product development of system manufacturers. The appearance design of this series of winding machine numerical control system adopts an integrated and thin design scheme to facilitate on-site installation and transportation. The structural design takes into account the requirements of different production environments, and adopts a dust-proof design with low power consumption, complete sealing and no fan, which is beneficial to the heat dissipation of the system, while avoiding the entry of dust and oil pollution, and greatly improving the service life of the system.
The main performance indexes of the winding machine are as follows:
1, mold rotation-the first coordinate:
Maximum diameter of products: φ Φ500mm.
Maximum length of product: 1500mm.
Maximum load of single shaft: 30Kg
Spindle speed: 0-100 rpm;
Clamping mode:
Spindle side: three-jaw chuck+roller
Tail side: top+roller
Spindle drive system: Yaskawa AC servo motor system and supporting high-precision precision worm gear reducer.
2, the trolley linear reciprocating motion-the second coordinate:
Maximum winding length of trolley: 1500mm.
Maximum travel of trolley: 1500mm.
Maximum moving speed of trolley: 60m/min
Transmission mode of trolley: precision gear+rack+linear guide rail.
Trolley drive system: Yaskawa AC servo motor system and supporting high-precision precision worm gear reducer.
3, the trolley arm-the third coordinate:
Maximum stroke of trolley arm: 250mm
The telescopic speed of the boom is adjustable.
Maximum speed of boom movement: 30m/min
Boom transmission mode: rack+ball linear guide rail
Boom drive system:Yaskawa AC servo motor system and supporting high-precision precision worm reducer.
4, Guide wire head rotation-the fourth coordinate:
The guide wire head can rotate 360 degrees.
The guide wire head can rotate to any angle.
Maximum rotating speed of guide head: 60rpm.
Rotary drive system:Yaskawa AC servo motor system and supporting high-precision precision worm gear reducer.

---
