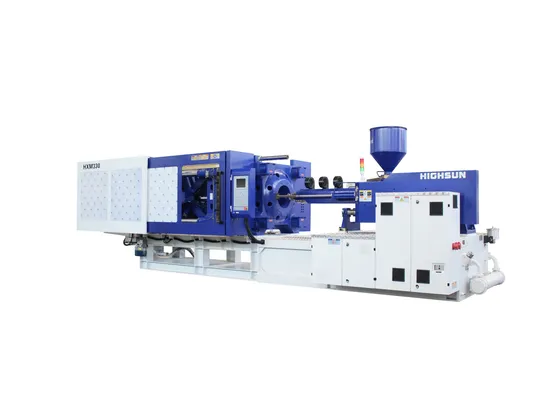

Hxm330 UPVC Plastic Injection Moulding Machine with New Design

US$40,000.00-80,000.00 1 Set (MOQ)

Basic Info.

Model NO.
Injection molding machine
Type
Plastic Injection Molding
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Energy Saving
Servo Energy Saving
After Sales Service
After Sales Service
Voltage
According to Countries
Showroom Locate
Malaysia,Russia,Turkey,Uzberkistan
Condition
New
Machine Weight
11.2ton
Transport Package
Standard Packing
Specification
7.20x2.36x2.18M
Trademark
HIGHSUN
Origin
China
HS Code
8477101090
Production Capacity
7000sets/Year

Packaging & Delivery

Package Size
720.00cm * 236.00cm * 218.00cm
Package Gross Weight
11200.000kg

Product Description

HIGHSUN PVC fitting machine, clamping force:218-1100T Adopt the special designed screw & barrel for PVC material, install the air fan for cooling barrel, to avoid the material overheating and coking; Increased bigger grade oil motor to facilitate PVC raw material plasticizing and molding; Enlarge the width of clamping unit cover sheet, to suit PVC fitting molds (core puller cylinder) installation convenience; Supply with special technical solution for PVC injection, not only modify the screw & barrel like others, but also the special solution contains complete hydraulic system and injection unit.
HX(*)330PVC
Injection Unit
Screw diameter mm 65
Screw L/D ratio L/D 21
Injection capacity in theory cm³ 1062
Injection weight(PVC) g 1274
Injection pressure MPa 162
Injection rate g/s 342
Plasticizing capacity g/s 58
Screw speed rpm 160
Clamping Unit
Clamping force KN 3300
Moving mould-plate stroke mm 660
Max.Mould height mm 750
Min.Mould height mm 250
Space between tie-bars mm 720x670
Hydraulic ejector force KN 125
Hydraulic ejector stroke mm 180
Ejector number n 13
Other
Pump pressure MPa 16
Motor/Driving power KW 37
Heating capacity KW 20.35
Machine dimension m 7.20x2.36x2.18
Machine weight t 11.2
Oil tank capacity L 680
