| Punch and Die |
| Material: 42CrMo Overall quenching process, high hardness and good wear resistance.(the tool photos are only for reference, we can also do customization) Can also be designed according to customer product. |
| ITEM | VALUE |
| Model | WE67K 100T3200 |
| Slider Stroke | 200mm |
| Max opening Height | 480mm |
| Throat Depth | 400mm |
| Length of Working Table | 3200mm |
| Width of Working Table | 150mm |
| Dimension | 3850x1850x2600mm |
| Weight | 8000KG |
| Main Motor Power | 7.5KW |
| Warrenty | 2 years |

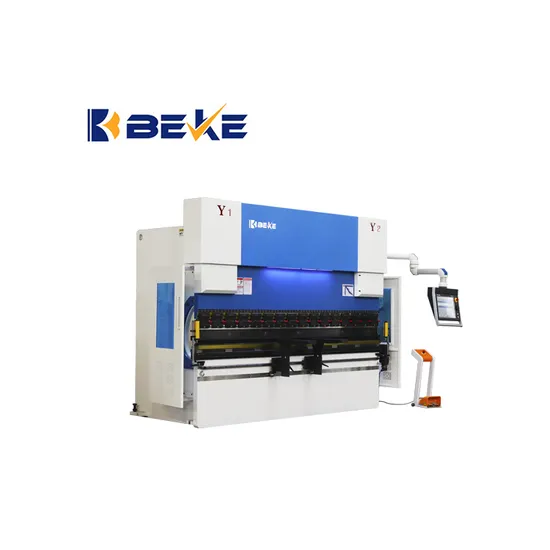

| BEKE WE67K Series CNC press brake | |
| BEKE WE67K Series CNC press brake is with price that you can afford and long life quality. It has higher bending precision than NC press brake, faster bending speed and easier operation, less failure rate. It can save your time and energy. | |
| DELEM DA66T CNC Control system | |
| Features: 3D visualisation in simulation and production 17″ high resolution colour TFT Full Windows application suite Delem Modusys compatibility (module scalability and adaptivity) USB, peripheral interfacing User specific application support within the controllers multitasking environment Sensor bending & correction interface | |
| A closed-loop control hydraulic system is formed by proportional electro-hydraulic valves, grating scales, and synchronouly controlled cylinders on both sides. Each of them is independently limited by the CNC system and they feedback accurate data to ensure the accurate running precision of the slider. SIEMENS main motor SUNNY oil pump Bosch-Rexroth hydraulic valve They are well-known brands with reliable quality, compact structure and beautiful appearance Convenient and quick maintenance | |
