Multi Head CNC Outer Polishing Machine,Grinding,Automatic,Grinding Machinery,Wax Polishing,Pot Polishing,Digitally Controlled,Soup Pans Frying Pans Griddle

Product Description

Product Description

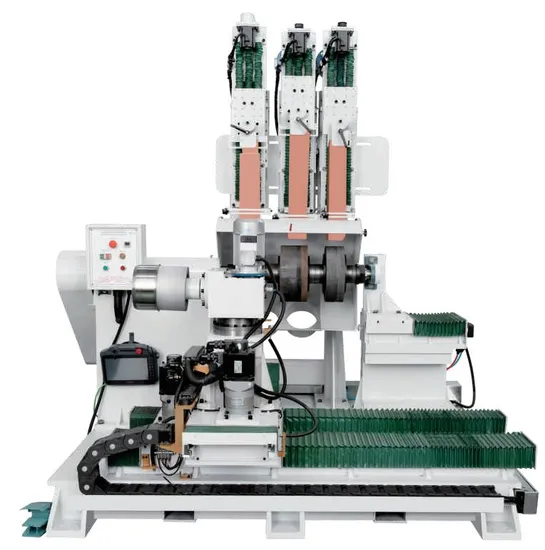

DSP4140-ZD multi head CNC outer polishing machine is a new generation of digitally controlled polishing machines continuously developed on the basis of our company's series of products. The overall layout of the machine is a horizontal overall design. The base reference adopts the "" shaped base mechanism form of German and Japanese mainstream brand machine tools, and is subjected to complete stress relief annealing treatment to achieve sufficient rigidity and stability. When the main shaft is equipped with three sets of polishing wheels and the speed is up to 2700 r/min, the vibration of the machine base does not exceed 0.02 mm. Without the need to tighten the foundation screws, the machine has no obvious vibration and displacement. At the same time, the control system of the machine adopts "high-speed field bus"technology, which can achieve high-speed and accurate trajectory and polishing process control of the machine, and can complete polishing processes for different parts such as edges, bottoms, and sides in one clamping operation. It is suitable for mass polishing production of the outer surfaces of soup pans, frying pans, frying pans, and other products.
Product Parameters

Function	Outer surface polish
Polishing wheel set	≤3(Effective length of single side machine spindle wheel mounting:700mm)
Size of workpiece	Dia.:Φ140~380mm;H: 250mm
Weight of workpiece	≤20Kg(
Size of abrasive wheel	Dia.:≤Φ350;Height: ≤160 Inner hole dia.:Φ25
Motor power	Abrasive wheel motor: 7.5KW×2	X axis: 2KW
	Workpiece motor:0.75KW	Y axis: 1.5KW
	Wax motor:0.75KW×2	Q axis: 2KW
Total power	20.75KW
Speed	Abrasive wheel: 2900rpm Workpiece:60~200rpm
Waxed way	Solid wax/ Liquid wax (Optional. subject to contract)
Workpiece holding	Vacuum adsorption(gas electric interlock: the machine cannot be started when workpiece is not tightly sucked)
Dimension	About 2400×2200×2300

Company Profile

Packaging & Shipping
FAQ
Q1: How is the warranty?A1: Warranty time is 12 months after BL date.Q2: Can we visit your factory before order?A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking. Q3: Do you have a stock?A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.Q4: What's the MOQ?A4: One set only.Q5: Can you provide customized machines?A5: Yes, we can design and manufacture according to your specific requirements.

---
