Factory Price Silo System Drum Sieve Machine Grain Pre Cleaner

Product Description

factory price silo system drum sieve machine grain pre cleaner
Product Description

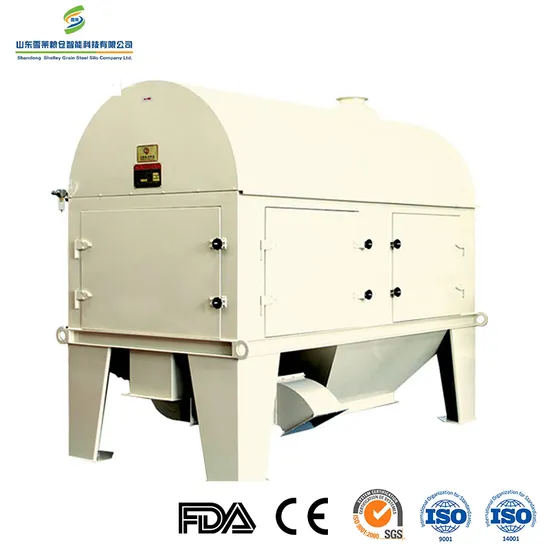

TQLY adjustable angle double barrel cleaning screen is a new type of cleaning equipment introduced by our company.It is widely used in food,starch,oil,alcohol and other industries.It mainly removes the impurities in the original grain such as corn,soybean, wheat, rice, etc.through the sieve cylinder to achieve continuous screening,and separates the large impurities larger than the inner sieve hole and the small impurities smaller than the outer sieve hole from two different outlets. When the original grain is cleaned,the material enters the sieve cylinder from the feeding port. Through the rotation of the sieve cylinder,the material is continuously separated in the sieve cylinder, and the net grain,large impurities, fine impurities and light impurities flow out according to the specific position.

Specification

Model parameter		TQLY 100/220	TQLY 100/320	TQLY 100/320-4B	TQLY 100/420	TQLY 125/420	TQLY 125/520
Produce quantityT/H	corn	30-50	40-80	120-180	60-100	75-130	85-150
	wheat	35-55	50-90	120-160	70-100	80-120	80-140
	Soybeans	40-55	45-90	120-200	65-100	80-150	80-165
	Rice	20-30	30-40	70-90	45-80	55-90	65-110
National Tsing Hua University miscellaneous rate(%)		80	80	80	80	80	80
Cleanup rate(%)		40	40	40	40	40	40
Power(Kw)		2.2	4	2×4	5.5	7.5	7.5
Air volume(m3/h)		3000	4000	7500	5500	6000	7000

Features
* Suitable to remove light dust or chaff. * Fan can be situated to cyclone with negative pressure to minimize dust leaks when exhaust ducting. * Equipped with 4 fitted mounting brackets. * Fully galvanized construction for outdoor use.
* Triple extraction point for 3 times the performance. * Fully adjustable internal guides to ensure the best performance on every crop. * Side viewing panels to see the adjustment effects.
Wearing partslist
The double-barrel cleaning screen produced by our company is guaranteed for one year under normal use by the customer.The vulnerable parts are provided free of charge according to the time shown in the following table. The details are as follows

Number	Item	Warranty time
1	Bearing	Within 6 months
2	Universal joints	Within 6 months
3	Riding wheel	Within 6 months
4	Sieve plate	Within 6 months
5	Chain	Within 6 months

---
