Welcome to visit

Highsun Machinery Molding Machine Suppliers

US$18,000.00-565,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
HXM128
Structure
Horizontal
Plastic Type
PS, ABS, PP, PE, HDPE, PA, EVA
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Energy Saving
Servo Energy Saving
After Sales Service
Engineers Available to Service Machine
Voltage
380V/50Hz, According to Countries
Showroom Locate
Malaysia, Russia, Turkey, Uzbekistan
Condition
New
Injection Weight
206g PS
Space Between Tie Bar
410X370
Machine Weight
3.2 Ton
Transport Package
Standard Package
Specification
4.41x1.2x1.89
Trademark
Highsun
Origin
China
HS Code
8477101090
Production Capacity
7000 Sets / Year

Packaging & Delivery

Package Size
441.00cm * 120.00cm * 189.00cm
Package Gross Weight
3200.000kg

Product Description

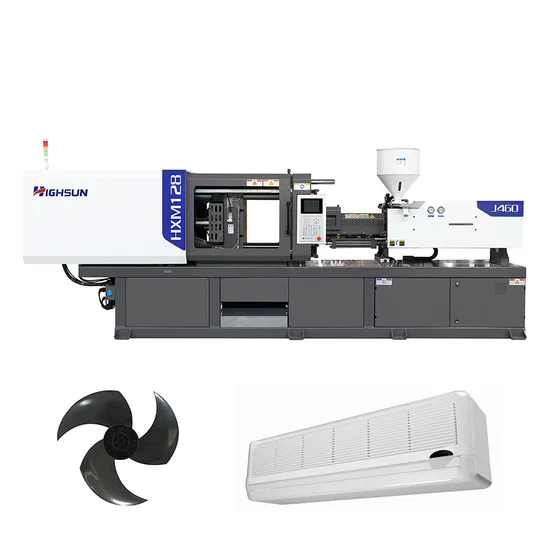

1.Picture
MODEL:HXM128
TECHNICAL PARAMETER TABLE A B C
INJECTION UNIT SCREW DIAMETER mm 35 38 42
SCREW L/D RATIO L/D 23.8 22 19.9
INJECTION CAPACITY IN THEORY cm3 192 226 277
INJECTION WEIGHT(PS) g 175 206 252
oz 6.1 7.2 8.8
INJECTION PRESSURE MPa 208 176 144
INJECTION RATE g/s 87 102 126
PLASTICIZING CAPACITY g/s 11 13 15
SCREW SPEED rpm 265
CLAMPING UNIT CLAMPING FORCE KN 1280
MOVING MOULD-PLATE STROKE mm 350
MAX. MOULD HEIGHT mm 450
MIN. MOULD HEIGHT mm 150
SPACE BWTWEEN TIE-BARS (W×H) mm 410x370
HYDRAULIC EJECTOR FORCE mm 45
HYDRAULIC EJECTOR STROKE KN 120
EJECTOR NUMBER n 5
OTHERS PUMP PRESSURE MPa 16
MOTOR /DRIVING POWER KW 13/15
HEATING CAPACITY KW 10.5
MACHINE DIMENSION (L×W×H) m 4.41x1.2x1.89
MACHINE WEIGHT t 3.2
OIL TANK CAPACITY L 235

2.Application
3.Processing,assembling production line
5.Loading containers
6. Customer case
Client in China produce shoe for many famous companies
7.Client in Malaysia
