Elsky Industrial PC with CPU 5th Generation Broadwell Core I7 5500u 5600u DDR3 RJ45 LAN VGA HD_Mi Lvds Ipc6000

Product Description

Product Description:

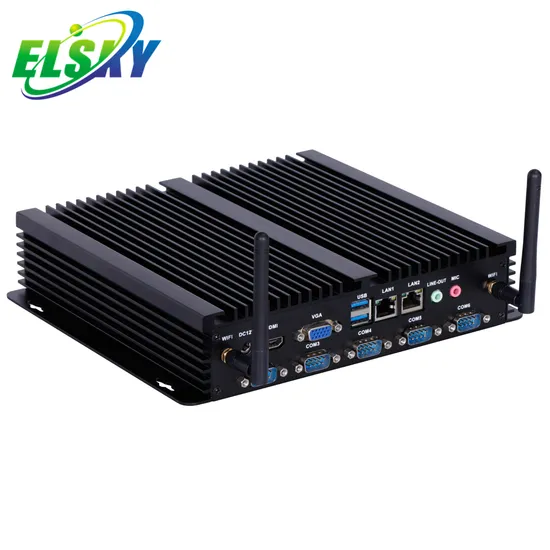

ELSKY High Performance Industrial PC IPC6000

with CPU processor 5th generation core i7 5500U 5600U Dual core 2.0GHz-3.1GHz
Bay trail SOC chipset DDR3 Max 8GB RAM Memory
Integrated HD Graphics in CPU
Integrated Realtek 8111E 1000Mbps LAN chip
or Realtek 8105E 100Mbps LAN chip optional
Integrated Realtek ALC662 HD digital audio decoder
or Integrated Cmedia HS_100B USB optional
Specification:

Model	IPC6000-6COM-2LAN-6USB
Motherboard Model	QM9400H-2L6C; QM9500H-2L6C
Color	Black
Case material	Aluminum alloy
Case size	234x205x53mm(LxWxH)
Cooling	Fanless
Power	1xDC_IN	DC Port: 5.5x2.5mm; Support DC 12V or 19V
		Recommend 12V 5A and above power adapter; Recommend 19V 3A and above power adapter.
CPU	Support 4th Generation Haswell Core i3 i5 i7 Processors: i3-4005U,i5-4200U,i7-4500U,etc; Support 5th Generation Broadwell Core i3 i5 i7 Processors: i3-5005U,i5-5200U,i7-5500U,etc.
Memory	1xSODIMM DDR3 1600MHz 1.35V Memory slot,up to 8GB RAM.
Storage	1xSATA3.0 hard disk interface		Not support 3.5-inch SSD/HDD.
	1xMSATA		SATA signal
Ethernet	2xRJ45 LAN; Option 1xRJ45 LAN Option 1: Realtek RTL8111F / i211 1000Mbps LAN chip; Option 2: Realtek 8105E/8106E 100Mbps LAN chip; Support Wake-on-LAN and PXE function.
WIFI	1xMini PCIE slot; Support WIFI/3G/4G/GPS,etc.
Display	Integrated HD Graphics in CPU; Support single display,dual display copy/expansion,single display in DOS.
	1xVGA DB15	Support resolution 1920*1080@60Hz
	1xHDMI 1.4	Support resolution 4096/3840*2160@30Hz
USB	2xUSB3.0(Blue color); 4xUSB2.0(Black color)
Serial Port	COM1 ,COM3, COM4, COM5, COM6: RS232
	COM2: RS232 (Default) Option RS422/485
3G/4G/5G	1xSIM Card slot
GPIO	Option(4xInput, 4xOutput)
Power On	Option(AUTO_SW jumper pin setting)
Audio	Integrated Realtek ALC662/660/892/887,Cmedia HS-100B USB...... HD Audio chip.
	1xLINE	Support Audio output
	1xMIC	Support Microphone input
Switch	1xPOWER button
Operating Environment	Operating temperature:-20ºC~60ºC; Working humidity:5%~95% Relative humidity, no condensation.
BIOS	AMI BIOS;Support timing switch,remote switch,identify devices intelligently.
Watch Dog	Watch Dog programming supports hardware reset function (256 levels, 0~255 seconds).
Operating System	Compatible with Win 7, Win 8, Win 10, Linux
Options	Option VESA mounting bracket (70x70mm)
	Option 8-bit GPIO terminal block(4xInput, 4xOutput)
	Option DC 12V/19V terminal block
	Option laser-engraving LOGO on the case

Price Explanation!!!
All of prices are barebone Mini PC(Motherboard+CPU+Case).
If you need Memory,SSD,HDD,WIFI,License operating system,3G,4G,GPS,power adapter and other accessories, please contact us to get the prices.
Different configurations, different prices.
We will quote according to your request.
If you need to purchase in large quantities, or want to know about promotional activities/clearance sale, please contact us for the best price.
The prices of this product link are for reference only!
We don't update product links frequently. If you want to know the latest price, please contact us.
Notice:
The prices will vary with exchange rates and material costs.
All prices are subject to change without notice.
All product specifications are subject to change without notice.
Thank you for your attention and support!
Product Uses
Packaging & Shipping
Packaging
Before delivery,we guarantee that every item will be tested and carefully packed with individual Anti-static bubble bag and separated by stiff cardboards in carton boxes.
1Piece/Carton(G.W. : 1.0-1.5KG);
5Pieces/Carton(G.W. : 5.0-7.5KG);
10Pieces/Carton(G.W. : 10.0-15.0KG);
Shipping
3 working days after received full payment(In stock).
Express:DHL,Fedex,UPS,TNT,etc.
Company Informaton

In the year of 2009,Shenzhen Elsky Technology Co.,Ltd. is specially engaged in the research,production and sales of all kinds of mini-ITX motherboard and mini PC for POS,ALL-IN-ONE PC,Digital signage,Advertising LCD Player,Network,Telecommunication and other industries.Meanwhile,we have OEM/ODM service for global customers.

As a motherboard and mini PC manufacturer, ELSKY concern with the design,development and production more than 10 years, We won the CCTV Securities Information Optimizing Brand and the members of Intel Intelligent Manufacture in China and the member of Intel IoT Solutions Alliance.
Our Services
Trade Term:
MOQ:1 piece;
Payment Term:T/T,Western Union,Paypal,Cash,etc.
Delivery: within 3~5 working days after received buyer's payment.
Shipping ways: DHL/FedEx/TNT/UPS,optional.
Product Support:After-Sales-Service,Technical Support,Product Manual,etc.
Warranty: 3 years for motherboard and 1 year for CPU.
You can also choose these accessories to buy together:
Intel other CPU:2nd~11th Gen.Processors;
Memory(RAM):1GB,2GB,4GB,8GB,16GB;
SSD(SATA or MSATA):2GB,4GB,8GB,16GB,32GB,64GB,128GB,240GB,etc;
HDD:80GB,128GB,160GB,256GB,320GB,500GB,750GB,1TB,2TB;
Power Adapter;
Mini PC chassis;
OPS Card;
WiFi module;
Fiber optic module;
increasing COM,LAN,USB,VGA,LVDS,HD_MI,Optical fiber,LPT,IDE Port On motherboard;
......
Other special Services:
increasing I/O interfaces or remove I/O interfaces;
installing pre-system(Win System,Linux System,etc);
Setting buyer's logo on startup screen;
Software error reporting;
Hardware error reporting;
BIOS Upgrade;
Watchdog;
Compatibility problems;
...... FAQ Who we are?
We are Shenzhen ELSKY Technology Co., Ltd.
"ELSKY"is our own brand.
We are "Intel Internet of Things(IOT) solutions alliance"member, "Intel Chinese intelligent manufacture base"member,and Intel authorized core partner.
What we do?
We develop, produce, sell, industrial motherboard, mini PC.
We have many types of motherboards, like ATX, Mini-itx, Nano-itx, 3.5inch, 4.0inch, OPS, Firewall, NUC, x86, embedded, industrial motherboards.
Our products mainly use for industrial production, banking, shops, supermarkets, transportation, medical and other industries.
They also application to ordering machines, cash registers, ATM, digital signage, advertising machines, spot welders, electronic whiteboards, conference equipment, teaching equipment, multimedia players and other equipments.
Q: How many engineers are there in your company?
A: Now we have 35 engineers and technicians.
For the company to develop better, we moved to a new office address in July 2018, we have expanded our office space, now we have 6000 square meters office space. Every year we continue to increase our staff to meet the needs of the company's development. Welcome to visit our company.
Q: What's your payment ways?
A: We accept T/T, Western Union, Paypal, ****** Trade Assurance, Alipay, Wechat Pay, Cash, etc.
Q: What's your shipping ways?
A: DHL, FedEx, TNT, UPS, CDEK, EMS, Aramex, Epacket, etc;
Appointing shipping agent by buyer;
Coming to our company to pick up the goods by yourself;
Delivery to your door in Shenzhen;
......
Q: What's your MOQ?
A: No need to customize our products (in stock), MOQ is 1 piece;
If the product is not in stock, MOQ is 100~500pcs.
Design a new chassis for our motherboard, MOQ is 100pcs.
If you want to customize new motherboard, please contact us to learn more.
Q: What is lead time of the products?
A: Within 1~3 working days after full payment completed.
The delivery period begins when we receive the amount.
Our all motherboards/mini PCs and accessories have been passed the BurnInTest, QC testing before delivery.
Q: Can you provide OEM/ODM service?
A: Yes, of course!
You can add or remove the interfaces, modules, pins, etc;
You can add your logo on startup screen or chassis;
You can customize your chassis,motherboard;
......
You can customize freely as you want, but the unit price will be different depends on the configuration of your needs, please contact us to get more details!
Q: If I add our logo on chassis or startup screen,what is MOQ?
A: Under normal circumstances, the MOQ is 1 piece, the price will not change.
Q: What operating system does your motherboard/Mini PC support?
A: Supporting Win 2000, Win CE, Win XP, Win 7, Win 8, Win 10, Linux, Ubuntu, Pfsense, Mikrotik, etc.
Q: How long is your warranty period?
A: The warranty period of motherboard is 3 years;
The warranty period of accessories is 1 year.
Please contact us to get more details!
Q: What is your after-sales service?
A: 24/7 customer service around the world;
24/7 On-site service in China;
Product data support;
Technical Support;
Project support;
Software, hardware support;
......
Q: What should I do if the motherboard/mini PC is broken?
A: If the motherboard/mini PC is naturally damaged(it is not man-made damage), and the motherboard/mini PC is still under warranty, we will accept the repair. Please contact us to get more details!
Q: What should I do if my devices can not compatible with the motherboard/mini PC?
A: Sorry, this issue has nothing to do with product quality, we do not accept return the motherboard/mini PC.
If you want to replace the motherboard/mini PC, we accept. We follow the principles "To return the overcharge and demand payment of the shortage".
Please contact us to get more details!
Q: What can our mini PC do for?
A:
1. It application to Word, Excel, PPT, Photoshop, CAD, CoreIDRAW, etc;
2. Using for online shopping and chatting;
3. Connecting to your TV to watch movie and play games;
4. Supporting 3D games/3D movie;
5. They support two or three screens 4K/2K display;
6. Our motherboard/mini PC supports industrial control needs.
To get more information,please contact us at any time!

---
