Product Application

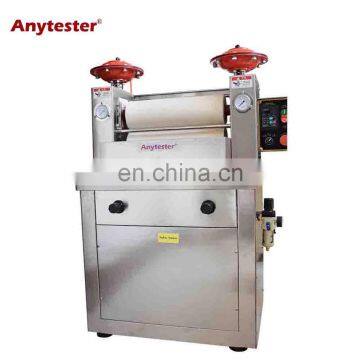

AT274A Vertical Pneumatic Heavy Duty Padder is used to check the quality of auxiliary. It is widely used in dyeing and finishing plant, manufacture of auxiliary and dye.
Nowadays customer has a high requirement on textile quality, not only the precise color but also the comfortable hand-feeling. You can use this padder to simulate the real production environment and get high repeatability sample. Also you can use this machine to develop more dyeing technology such as fireproofing, dust-resistant, oil-resistant, water-repellent, breathable etc. This padder is an ideal solution to cut down the waste of time and invest due bad dyeing technology.
Main Features
1. High quality NBR rubber and stainless steel ensure a long time life, also have a good appearance.
2. Use two separate pneumatic cylinders to drive the membrane to provide uniform pressure to the roller.
3. NBR rubber and pressure-absorbing rate 20 ~ 110% make the machine can be widely used for most textile
4. Better safety system. It's equipped with Knees touch stop button and emergency stop button on the control panel. The motor has reverse function, once the machine stop by safety button, the motor will turn back.
5. It equipped with cleaning spray gun to clean the padder, make it expediently
6. Removable liquor tank make it easy to change and clean.
Technical Specification For AT274A Vertical Pneumatic Heavy Duty Padder
|
Type
| Vertical
|
Roller length
| 420mm
|
Roller diameter
| 130mm
|
NBR Rubber hardness
| 700shore
|
Roller speed
| 0 ~ 18RPM adjustable
|
Max. pressure
| 0.6MPa
|
Pressure division
| 0.01MPa
|
Power supply
| 220V, 50Hz
|
Dimensions
| 900*800*1230mm
|
Weight
| 160kg
|
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.
Packaging
|
Size
| 900(L) * 800(W) * 1230 (D)
|
Weight
| 160 KG
|
Packaging Details
| The normal package is export wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
