Rubber Banbury Intensive Dispersion Kneader Machine

US$18,000.00-58,000.00 1 Set (MOQ)

Basic Info.

Model NO.
55L 75L
Certification
CE, ISO
Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
Vertical
Overall Dimension
3280X1930 X3070mm
Product Name
Automatic Control Rubber Internal Mixer 55L
Weight
10500kg
Motor Power
110kw
Voltage
220V-660V
Using Life
More Than 15 Years
Transport Package
Standard Wooden Case
Specification
35L~110L
Trademark
Zhihong
Origin
Qingdao City, Shandong China
HS Code
8477800000
Production Capacity
10sets/Month

Product Description

Rubber Banbury Intensive Dispersion Kneader Machine
Usage
The rubber kneader is mainly used for plasticating and mixing rubber and plastics, and also applicable for mixing or kneading sticky materials.


Features: With completely sealed condition, materials are mixed or plasticated under certain pressure, controllable temperature, which makes high production efficiency and obtains excellent stable quality. Spiral angle and over lapping length of the blades of the rotors are of reasonable design and make the materials to be dispersed uniformly. Surface where is contacted with the materials are all plated with hard chromium and polished, which is corrosion-resistant and wear-resistant. Jacket construction is adopted in parts that surfaces contact with materials to achieve excellent water-cooling or steam heating effect and fit in with the needs of plastics and rubber precessing technology. Feeding from back door on the frame(or a separate top door)is convenient for continuous process operation in a production line. The mixing chamber is able to turn forward by 140°around the front rotors to discharge and is easy for changing pigments and cleaning the chamber. Programmable logic controller(PLC) is adopted in the electric-control system, which has reliable control function and alarm function, and interlock safety-protection function and it is procuded with serial interface of net.
Technical Parameters
Model
Item
X(S)N-
35× 30
X(S)N-
55× 30
X(S)N-
75× 30
X(S)N-
110× 30
Total Volume of Mixing Chamber (L) 75 125 180 250
Working Volume of Mixing Chamber (L) 35 55 75 110
Driving Motor Power (KW) 55 75 110 185
Tilting Motor Power (KW) 2.2 2.2 4 4
Tilting Angle 140 140 140 140
Rotational Speed Of Rotor (Front/Rear) (r/min) 32/24.5 30/24.5 30/24.5 30/24.5
Pressure of Compressed Air (MPa) 0.5~0.8 0.6~0.8 0.6~0.8 0.6~0.8
Capacity of Compressed Air (m3/min) ≥ 0.9 ≥ 1.0 ≥ 1.0 ≥ 1.5
Pressure of Cooling Water (Rubber Mixing) (MPa) 0.3~0.4 0.3~0.4 0.3~0.4 0.3~0.4
Pressure of Heating Steam( Plastics Mixing) (MPa) 0.5~0.8 0.5~0.8 0.5~0.8 0.5~0.8
Overall Dimention (mm) L 3200 3280 3330 3930
W 1900 1930 2620 3 000
H 2950 3070 3 340 3660
Weight (kg) 6500 7800 10500 14900

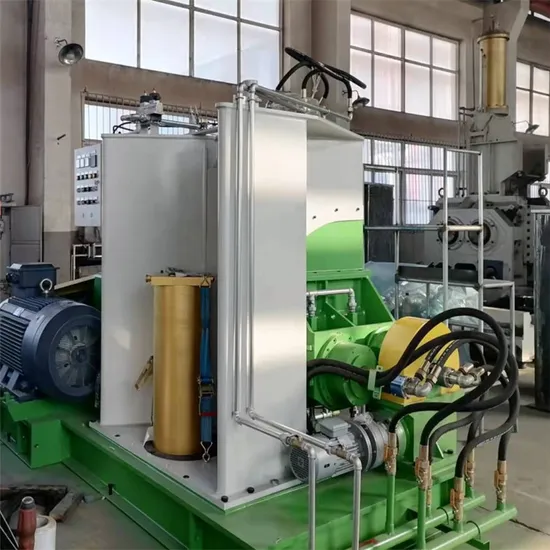

Products picture
