Material Laser Collimating Lens 0.6 Numerical Aperture 4.05mm Focal Length L-Bal42 Wavelength 639um

US$1.50-5.50 100 Pieces (MOQ)

Basic Info.

Model NO.
M14P0508F1015-47
Type
Collimating Lens
Transmittance
>95%
Shape
Ball, Hemisphere
Material
Optical Glass
Lenses Color
Clear
Customized
Customized
Coating
HC
Wavelength
400um-700um
Transport Package
Carton
Specification
M6, M7, M8, M9, M10
Trademark
3V-Tech
Origin
China
HS Code
3225961661

Product Description

Product Description A collimating lens is an instrument that converts light from each point in the aperture column into a parallel column of collimating light.Lens type depends on aberration requirements,For low requirements, simple lenses, such as flat convex or double convex lenses, maybe used and a larger relative aperture is allowed.High requirements,Achromatic lens will be use, the relative aperture is also appropriately reduced.Collimator lens is one of the mainly products in Sunday. We have standard ones and also accept customer-made. 3V-tech has collimator lens with single aspheric, doublet lenses, triplet lens.
Specification:
Shell Material: Aluminum or Copper.
Lenses:aspheric lens,two lenses,three lenses (Glass),single apron, two aprons.
We also accept customization.

Product Parameters

No.
Size
(mm)
EFL
(mm)
NA
CA
(mm)		 Aperture working distance
(mm)		 Design wavelength
λ(nm)
Material
Coating
(nm)
M7P0505F0302-47 M7×P0.5×5.0 2 0.54 2.4 0.7 650 D-ZK3 400-700
M9P0505F0302-47 M9×P0.5×5.0 2 0.54 2.2 0.7 650 D-ZK3 400-700
M9P0508F0302-47 M9×P0.5×8.0 2 0.54 2.4 0.7 650 D-ZK3 400-700
M9P0508F0302-S-47 M9×P0.5×8.0 2 0.54 2.4 0.7 650 D-ZK3 400-700
9P0508F0302-S-47 M9×P0.5×8.0 2 0.54 2.4 1 650 D-ZK3 400-700
M9P0510F0302-S-47 M9×P0.5×10.0 2 0.54 2.4 0.7 650 D-ZK3 400-700
M9P0565F0302-47 M9×P0.5×6.5 2 0.54 2.4 0.7 650 D-ZK3 400-700
M6P0505F0306-47 M6×P0.5×5.0 6 0.2 2.4 4.71 530 D-ZK3 400-700
SJLTF061000-6580 M9×P0.5×7.5 10 0.25 5 3.88 635 D-ZK3 650-800
M9P0506F0612-D-47 M9×P0.5×6.0 12 0.23 5.5 10.14 530 D-ZK3 400-700
M9P0508F0612-47 M9×P0.5×8.0 12 0.23 5.5 8.64 530 D-ZK3 400-700
M9P0508F0612-D-47 M9×P0.5×8.0 12 0.23 5.5 10.14 530 D-ZK3 400-700
M9P0510F0612-D-47 M9×P0.5×10.0 12 0.23 5.5 4.6 530 D-ZK3 400-700
M9P0508F0615-47 M9×P0.5×8.0 15 0.15 5 8.88 635 D-ZK3 400-700
M9P0508F0708-47 M9×P0.5×8.0 8 0.33 5.4 6.13 635 D-ZK2 400-700
M9P0510F0708-47 M9×P0.5×10.0 8 0.33 5.4 6.13 635 D-ZK2 400-700
M9P0510F0708A2-47 M9×P0.5×10.0 8 0.33 5.4 2.62 635 D-ZK2 400-700
M9P0510F0708B1-47 M9×P0.5×10.0 8 0.4 6.5 6.13 635 D-ZK2 400-700
M9P0575F0708-47 M9×P0.5×7.5 8 0.38 6 2.92 635 D-ZK2 400-700
M9P051519F0708-47 M9×P0.5×19.0 8 0.28 5.1 2.66 635 D-ZK2 400-700
M9P051519F0708-D-47 M9×P0.5×19.0 8 0.28 5.1 2.66 635 D-ZK2 400-700
M12P051421F0708-7011 M12×P0.5×21.0 8.1 0.4 6.4 3.278 905 D-ZK2 700-1100
M10P0508F0811-47 M10×P0.5×8.0 11.2 0.31 7 8.875 635 D-ZK3 400-700
M14P0508F1015-47 M10×P0.5×8.0 15.18 0.3 9.5 10.35 639 L-BAL42 400-700
M6P0505F3038-47 M6×P0.5×5.0 3.77 0.3 2.4 2.51 635 L-BAL35 400-700
M6P0506F3038-47 M6×P0.5×6.0 3.77 0.3 2.4 2.51 635 L-BAL35 400-700
M7P0565F4762-47 M7×P0.5×6.5 6.2 0.3 4 3.59 633 D-ZK3 400-700
M8P0508F4762-47 M8×P0.5×8.0 6.2 0.3 4 3.59 633 D-ZK3 400-700
M9P0508F4762-47 M9×P0.5×8.0 6.2 0.3 4 3.59 633 D-ZK3 400-700
M9P0508F4762-S-47 M9×P0.5×8.0 6.2 0.3 4 3.59 633 D-ZK3 400-700
M9P0508F4780-47 M9×P0.5×8.0 8 0.25 4 5.44 530 D-ZK3 400-700
M9P0508F4780-D-47 M9×P0.5×8.0 8 0.25 4 2.878 530 D-ZK3 400-700
M9P0508F6340-47 M9×P0.5×8.0 4.05 0.6 5.3 2.23 445 D-ZK3 400-700
M9P0508F6340-7011 M9×P0.5×8.0 4.05 0.6 5.3 2.23 445 D-ZK3 700-1100
M9P0508F6340-S-47 M9×P0.5×8.0 4.05 0.6 5 2.23 445 D-ZK3 400-700
M9P0510F6340-47 M9×P0.5×10.0 4.05 0.6 5.3 2.23 445 D-ZK3 400-700
M9P0510F6340-7011 M9×P0.5×10.0 4.05 0.6 5.3 2.23 445 D-ZK3 700-1100
M9P0510F6340-S-47 M9×P0.5×10.0 4.05 0.6 5 2.23 445 D-ZK3 400-700
M9P0514F6340-BD-47 M9×P0.5×14.0 4.05 0.6 5 2.23 445 D-ZK3 400-700
M9P05605F6340-47 M9×P0.5×6.5 4.05 0.6 5.3 2.23 445 D-ZK3 400-700
M9P051520F6340-D-47 M9×P0.5×20.0 4.05 0.6 5 2.23 445 D-ZK3 400-700
M9P05605F6340-47 M9×P0.5×6.5 4.05 0.6 5.3 2.23 445 D-ZK3 400-700
M9P051520F6340-D-47 M9×P0.5×20.0 4.05 0.6 5 2.23 445 D-ZK3 400-700
M9P0508F6380-S-47 M9×P0.5×8.0 8 0.33 5.5 6.49 530 D-ZK3 400-700
M9P051514F6380-D-47 M9×P0.5×14.0 8 0.33 5.4 3.6 530 D-ZK3 400-700
M9P0508F635107 M9×P0.5×8.0 10 0.17 5.2 4.71 786.5 L-BAL42 786.5±20
M9P0514J048 M9×P0.5×14.0 4.795 0.4 3.8 1.711 450 / 400-700
M9P051416F273-D-47 M9×P0.5×16.0 13.396 0.2 5.3 2.483 650 / 400-700
M9P0510F273 M9×P0.5×10.0 12.842 0.19 5.0 7.076 405 / 400-700
M9P0510F273 M9×P0.5×10.0 13.396 0.19 5.0 7.512 650 / 400-700
M9P0510F273 M9×P0.5×10.0 13.554 0.19 5.0 7.643 850 / 700-1100
M9P0510J543 M9×P0.5×10.0 5.378 0.3 3.4 2.95 405 / 400-700
M9P0510J543 M9×P0.5×10.0 5.434 0.3 3.4 2.916 650 / 400-700
M9P0510J543 M9×P0.5×10.0 5.46 0.3 3.4 2.923 850 / 700-1100
M9P051043 M9×P0.5×10.0 9.322 0.25 5.0 3.815 405 / 400-700
M9P051043 M9×P0.5×10.0 9.635 0.25 5.0 4.018 650 / 400-700
M9P051043 M9×P0.5×10.0 9.73 0.25 5.0 4.087 850 / 700-1100
M9P05105-S M9×P0.5×10.5 9.322 0.25 5.0 4.778 405 / 400-700
M9P05105-S M9×P0.5×10.5 9.635 0.25 5.0 4.981 650 / 400-700
M9P05105-S M9×P0.5×10.5 9.73 0.25 5.0 5.050 850 / 700-1100
M9P0508 M9×P0.5×8.0 9.001 0.27 5.0 3.535 405 / 400-700
M9P0508 M9×P0.5×8.0 9.795 0.27 5.0 4.260 650 / 400-700
M9P0508 M9×P0.5×8.0 9.991 0.27 5.0 4.441 850 / 700-1100
M9P0514J98-BD M9×P0.5×14.0 9.001 0.27 5.0 5.751 405 / 400-700
M9P0514J98-BD M9×P0.5×14.0 9.795 0.27 5.0 6.476 650 / 400-700
M9P0514J98-BD M9×P0.5×14.0 9.991 0.27 5.0 6.657 850 / 700-1100
M9P051614J98-D M9×P0.5×14.0 9.001 0.27 5.0 4.251 405 / 400-700
M9P051614J98-D M9×P0.5×14.0 9.795 0.27 5.0 4.976 650 / 400-700
M9P051614J98-D M9×P0.5×14.0 9.991 0.27 5.0 6.657 850 / 700-1100

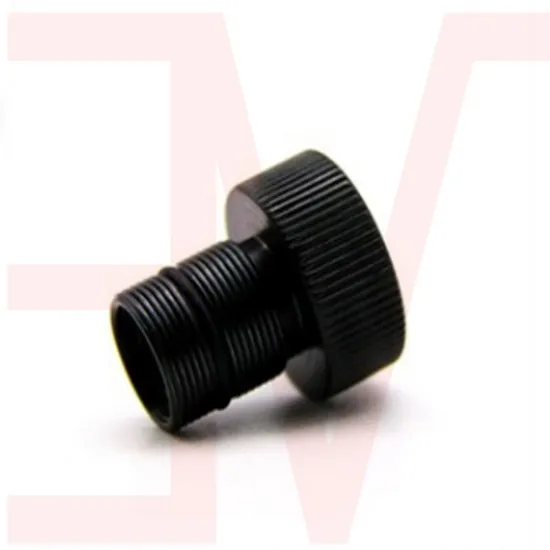

Detailed Photos
