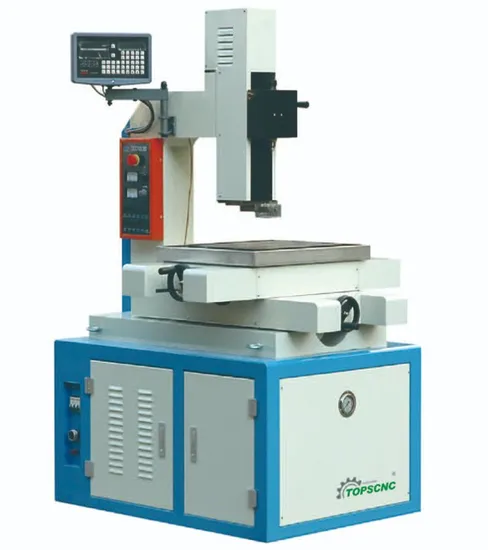

Highly Active and Accuracy Wire EDM Drilling Machine

Product Description

Technique parameters

Technique parameters	unit	DD703	DD703.30	DD703.32	DD703.40
Worktable size	mm	320x440	320x440	360x610	460x690
Worktable travel	mm	200×300	300×400	320×400	400x500
Z-axis travel	mm	280	300	300	300
Max.load on table	mm	200	200	200	200
Main spindle speed	rpm	60
Diameter of electrode	mm	φ0.3-φ3
MAX.distance from guider to worktable	mm	240	300	400	500
water tank	L	25
Filtering model		Shallow-gap filter
Working medium		water
MAX.working pressure	Mpa	7
Power supply		380V,3Ph,50Hz
Max.woking current	A	30
Power consumption	Kw	3
Machine weight	kg	700	850	1300	1700
Machine demensions	mm	1060×750×1700	1060×750×1760	1550×1170×1800	1800x1380x1800

Products advantages
1) It can drill small holes on the materials. Such as stainless steel, quenched steel, carbide,copper, aluminium,etc
2) It can drill the deep holes with diameters 0.3-3mm and depth-diameter ratio 200:1 or more. 3)Working speed is 30-60mm depth per minute it can directly drill on oblique curved surfaces. 4) It can water as workingfluid.5) It can become a machine with multi-axis numerical control or numerical display for the user requirement.
Our Factory
Our Services
1) Quality : We take care of the product quality in order to provide good service to our customers.
2)Warranty: One year after shipment,consumables are not included.
3)The quotation do not include installation and education training fee.
4) Payment Method: T/T or L/C
5) Delivery time : 20--25 days
6) Packing : Standard export wooden cases
7)Port: Shanghai
Contact us
Company:Jiangsu Dongqing CNC Machine Tool Co.LtdAddress:East Suburb Development Zone,Taizhou city,Jiangsu Province,China Web:topscnc.en.made-in-china.com

---
