Large Capacity Fish Feed Factory Machine Production Line Double Screw Extruders

Product Description

Large Capacity Fish Feed Factory Machine Production Line Double Screw Extruders
Large Capacity Fish Feed Factory Machine Production Line Double Screw Extruders
Factory Scale Fish Feed Production Plant Machine Line Floating Sinking Fodder Extruder
catfish rainbow trout grass fish tilapia feed production machine floating feed mill plant manufacturing equipment Product Description
Large Capacity Fish Feed Factory Machine Production Line Double Screw Extruders is high and new technical program as to catch the developing fish feed market. fish feed line mainly use maize, fish powder, meat powder and some food additive as main raw material, through mixing, extruding, roasting, flavoring to get the final puffed pet food. This line is fully automatic, high capacity and with different of shapes.
a. Raw Materials: adopts corn flour, fish meal as raw materials
b. Products: different shapes are made by adjusting the dies from extruder
c. Capacity: 140 - 160kg/h, 240 - 260 kg/h, 500 - 600 kg/h, 1ton/h
d. Flow chart:
Mixing system---Extrusion system---Drying system---Flavoring system---Packing system
e. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries
f. Machines Materials: All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function.

Product Parameters

Fish Feed Production line composition:
Mixer →Screw Conveyor →Extruder →Air conveyor→Dryer→Hoister with Flavor→ Oil Sprayer→ Roller
Voltage
Three phases: 380V/50Hz, Single phase: 220V/50Hz in China , we can make
it according to customers' Local voltage according to different countries

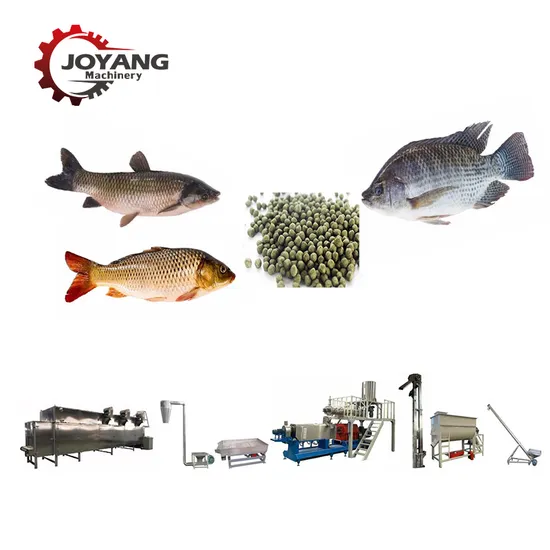

Automatic Floating sinking fish food feed machine pictures
Technical parameters of floating fish feed machine sinking food pellet making line extruder

Item	JY-65	JY-70	JY-85	JY-90	JY-95	JY-120
Installed Power	76kw	95kw	180kw	160kw	200kw	250kw
Power Consumption	54kwh	66kwh	120kwh	130kwh	145kwh	180kwh
Production Capacity	140 - 160 kg/h	240 - 260 kg/h	300-500kg/h	600-800kg/h	800-1200kg/h	1800-2500 kg/h
Dimension	17*2*2.5m	22*2*2.5 m	30*3*3.5m	42*5*6.0 m	45*5*6.0 m	58*6.5*7.5 m

Company Profile
Shandong Joyang Machinery Co., Ltd.is a professional supplier of Stainless Automatic Fish Feed Extruder Machine Floating Pellet Food Line. We are located in Jinan, the capital of Shandong Province. Our company is full of staff with many years of experience in supplying the food process machines.
Our main products include Fortified Rice Kernel Making Machine, fish feed making machine, pet food making machine, pasta making machine, snack food making machine, kurkure making machine, hot air drying machine, tunnel microwave machine, vacuum microwave machine, thawing microwave machine, instant noodle machine etc. Our machines are customized machines , our professional engineers will supply the most suitable solution to different customers to meet their various demands.
We have developed the "JY" series aquatic fish feed machine ornamental guppy golden fish koi food extruder production machinery plant line in various specifications in accordance with CE standards.

Our service
We will provide the most thoughtful services for our clients: Before sale services:
1.Provide the free consultation of the equipment
2.Provide the standard device and the flow chart
3. According to the clients' special requirement, offering the reasonable plan and free design helping to select the equipment.
Services during the sales:
1.Help client design the factory and offering professional advice, free engineering drawing for the factory layout.
2.Welcome to visit our factory or the domestic clients' factory.
3.Inspect the machine before leaving the factory.
After sale services:
1. Oversea install and debug the equipment.
2. Train the first-line operator.
3. Provide the basic formula
4. Operation/ Service/ Maintenance Manual: Provided In English.
floating fish feed machine sinking food pellet making line extruder
floating fish feed machine sinking food pellet making line extruderTwin screw floating fish feed machine extruder fresh water aquatic fish food pellet production machine plant line
catfish rainbow trout grass fish tilapia feed production machine floating feed mill plant manufacturing equipment
Inflated puffed feed granules extruder floating fish feed pellet machine mill plant animal food production equipment
All water depth fish feed processing line aqua marine ornamental food pellet extruder machinery

---
