China Supplier Lab use rotary evaporators economic 1-100L Our Product
•Feature and Description
Motor has the function of 10-120 RPM stepless speed regulation and automatic lifting , revolving consists of a set of stable and reliable micro motor, speed motor and integrated circuit control device. In the role of electronic speed, it can rotating steadily in 10-120 RPM range, it has reached the advanced level at home and abroad.
1 Quick and easy lifting mechanism
2 Evaporator along the horizontal direction can lean in 0-45 ℃ arbitrarily.
3 Vertical condensation system of high rate of evaporation
4 Vacuum sealing way
5 Automatic control temperature digital display

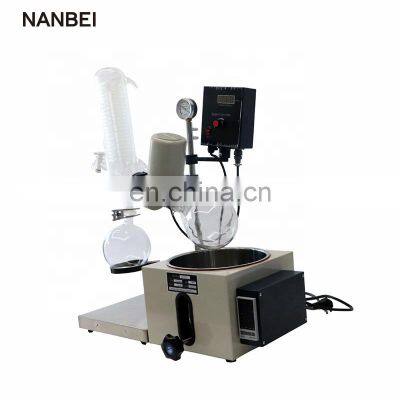

•Picture for rotary evaporator with chiller and vacuum pump
•Usage and Application
Rotary evaporator is the necessary basic instrument for chemical industry, medicine industry,
institutions of higher learning and scientific research laboratory and other units, it is the main means for manufacturing and analyzing experiments when they do extraction and concentration.
Customization is no problem for us. Please told us your reqeust first, then we could customiz for you.
•Technical data
Model
| NBRE-201D
| NBRE-301
| NBRE-501
|
Glass meterial
| GG-17
|
Holder material
| Stainless steel
|
Pot shell Material
| aluminium alloy
270*270*195mm
| aluminium alloy
270*296*240mm
| aluminium alloy
310*320*240mm
|
Pot bravery
| Stainless steel
250*140mm
| Stainless steel
255*170mm
| Stainless steel
280*170mm
|
Plate size
| 280*330
| 350*330
| 350*330
|
Evaporator flask
| 2L 24#
| 3L
flange mouth:Φ50mm
| 5L
flange mouth:Φ50mm
|
Collect flask
| 1L 24#
| 2L 35#
| 3L 35#
|
Vacuum degree
| 0.098Mpa
|
Rotary speed
| 0-120RPM
|
Rotary power
| 30W
| 40W
| 40W
|
Heating power
| 1.5KW
| 2KW
| 2KW
|
Heating temp.
| 0-400℃
|
Temp. accuracy
| -1℃
|
Lifting stroke
| 120mm
|
Voltage
| 220/110V 50/60HZ
|
Dimension
| 700*440*885mm
| 660*330*970
| 700*335*1009
|
Packing size
| 590*460*460mm
| 1000*460*450
| 1040*620*410mm
|
Packing weight
| 21kg
| 38kg
| 38kg
|
•Packing and Shipping
FAQ
1.How can I choose the suitable one?
Please tell us your detailed requirements by mail or online, We will recommend the suitable one as your request.
2.Does your price is competitive?
We make sure to offer you the best quality with competitive price.
3.How can I pay?
We accept many payment term, such as T/T, Western Union…
4.When I receive it after pay?
Normal models can be delivered with 5-7days, Please contact us to check transport time to your address.
5.How to deliver?
We can send by Express, by Sea and by Air.
6.Is will be broken during transport?
Please do not worry, We do standard export package.
7.What should I do if I do not know how to use?
Please do not worry, manual user will be sent together, you can also contact us with more technological support.
8.What should I do if some parts broken?
Please do not worry, We have 12months warranty except wear parts. You can also buy parts from us after 12months
