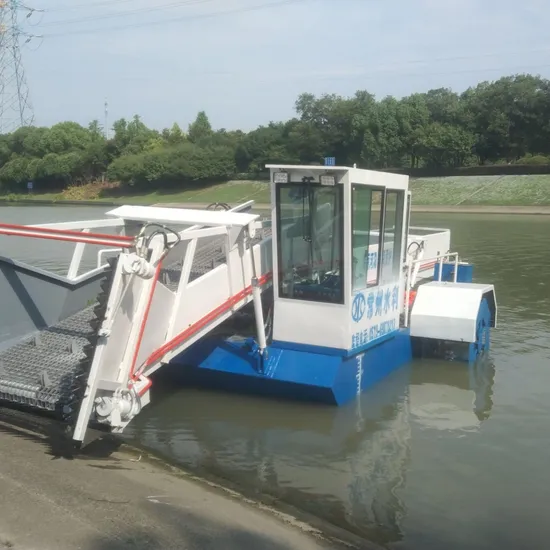

Fully Automatic Small Aquatic Grass Cutting Machine/Harvester for Water Hyacinth Cleaning

Product Description

Fully Automatic Small Aquatic Grass Cutting Machine/Harvester for Water Hyacinth Cleaning Product Description
1. The equipment can used in collect,transport,discharge water hyacinth,reed,algae and garbage in the water.
2. The operation system use full automatic centralized control, this can make the equipmend sail and go forward and back.
3. The equipment can be adjust the direction and do the unloading work by one person. this kind of harvester is famous for it simple structure,flucxible movement and easy operation.
4. The machine is made is welding steel,the material is CCSB(China Classification Society Standard) ship steel plates,the equipment pained 4 layersof anti-rust marine paint.
5. The opearion system uses remote centralized control, this can make the equipment sail,go forward and back,adjust direction and do the loading work.
Weed harvester is used for collecting the floating trash,aquatic weed in reservoirs,rivers and lakes.The machine is designed for easy operation, high efficiency, stable performance. All the collecting,conveying,draining,stocking and transporting movement can be completed by one man via controlling the buttons and swifts on the control desk. The work efficiency of the machine is thirty times as much as people cleaning.The weed harvester is controlled by hydraulic system and all the hydraulic parts have high quality sealing effect to make sure that all the working processes completely satisfy the environment protection requests without oil leakage and noise.In the course of technical designing, We have considered special requirements for local tropical climate conditions such as meteorological and waters distributing state ect.
Detailed Photos
Aquatic harvester is a kind of modern aquatic grass and
floating garbage harvesting equipment integrated with
mowing, gathering, fishing, filtering, transporting and
discharging. All operation procedures adopt hydraulic
control with simple, convenient and flexible features. It is
an indispensable cleaning equipment for urban water
surface scenic spots.

1) Simple structure in linear type ,easy in installation and
maintation.
2) Adopting advanced world famous brand components in
pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and
closing.
4) Running in a high automatization and intellectualization,no
pollution
5) Apply a linker to connect with the air conveyor ,which can
directly inline with filling machine.
Product Parameters
SH-9-1500 medium size full automatic harvester parameter

NO.	item	parameter
1	dimension	7.5mx4.3mx2.55m
	capacity	1000m2/h
	harvest depth	0.8m
	harvest width	1.4m
	continue working time	24hours
	working speed	3-5KM/h
	sail speed	5-7KM/h
	transmission way	full hydraulic
2	hull .	4.5mx2.9mx0.8m
	material	Bottom plate 4mm,side plate:4mm,deck plate:3mm.
3	main engine
	manufacturer	Weifang diesel engine
	type	490
	power	26KW
	drive cooling way	electrical
4	walking way	wheel
	wheel size	1.1mx0.55m
	quantity	2 pieces
	drive way	hydraulic motor 2 sets
5	front collecting arm
	dimension	5mx1mx1.3m
	transmission way	hydraulic motor 1 set
	lifting way	hydraulic cylinders
	chain material	stainless
6	back storage rod
	dimension	8.5mx1mx0.7m
	chain material	stainless
	storage capacity	7.5m3
	transmission way	2 hydraulic motor 2 sets
	lifting way	2 hydraulic cylinders 2 pieces
7	operation room	1 1 set
	dimension	1.5mx0.75mx1.6m

Production processing SHENG HE Aquatic harvester features
1.Shenghe aquatic weed harvester is usually used in river,river,reservoir,canal and coasts for cutting, collecting,storing and transporting,water grass and floating garbage. All the equipment of the ship can work automatically and can save much labor force for its high efficiency.
2.Its hull consists two side pontoons. All the other equipment, including operation room, conveyor belting cabin, engine, are fixed by bolts.
3. It is to be easy to dismantle for transportation by road, rail or water, and easy to reassemble at project site.
4.The machine is driven by paddle wheel instead of the screw propeller,which can make sure the wheel is not entangled by the underwater weed.The system is perfectly optimized so that the machine can work efficiently.
Company Profile
Factory introduce and certifications :

Weifang Shenghe Environmental protection Machinery manufactering Co., Ltd , is one of China leading company of sand & gold& diamond mining equipments, which has more than 10 years' experience in producing cutter suction dredgers.jet suction dredgers,bucket chain dredger.diamond.gold selection dredger, sand washing plant, gold washing plant, sand washing & screening machinery, sand transport barge,work boat and so on. Successful series of products have won the recognization and approval of general administration of Quality Supervision. Now our company's products are widely exported and used in the Aisa,Afrrica,South America,Middle Easr and other regions.

Our company covers an area of 20000 square meters. The company adopts modern enterprise management concept. seiko manufacturing. forge ahead. the product quality is superior to the domestic and foreign counterparts products. Company technical force is abundant. the craft is advanced. complete range of articles. in strict accordance with ISO9001 standards. organization.design. production. sales and management.
Company sets scientific research and development. engineering design. installation. debugging. production services for the integration of domestic comprehensive backbone enterprises. products with free-pollution disposal equipment. garbage disposal equipment. high concentration wastewater treatment equipment. organic fertilizer production equipment. air treatment equipment. sludge treatment equipment. automobile processing equipment such as environmental protection equipment . And can design according to customer demand. customization of all kinds of efficient and practical equipment and production line.

After Sales Service
1.Signs a long-time after-sales service agreement with customers.2.We provide rational and practical design according to customers' request.3.We send engineers to assemble and test the machine within the period as agreed in the contract.4.Within warranty period, we provide free repair if quality problems emerge.5.We provide free training of operation and mantenance for customers.6.We supply high quality accessories in low price.7.We make an excellent filing of customers for long-term following-up service.
FAQ
Q1:What about the delivery?
We can offer our equipment by containers or bulk ship, just depend on your actual request.
Q2:What is the warranty?
We provide 1 year warranty and free repair if quality problems emerge within warranty peride.
Q3:What's the payment methode?
We can accept T/T, L/C, WESTERN UNION and so on.
Q4:Is it factory?
Yes,we have our own factory.and welcome to visit our factory.thanks
Q5.Whether it can be customized according to customer requirements?
Yes,we can design according to customer's requirement,we have many kinds of model.you can choose the suitable one.
