Centrifugal Mining Mineral Processed Engineering Sand Coal Wholesale Zinc Slurry Pump 4" 6"

Product Description

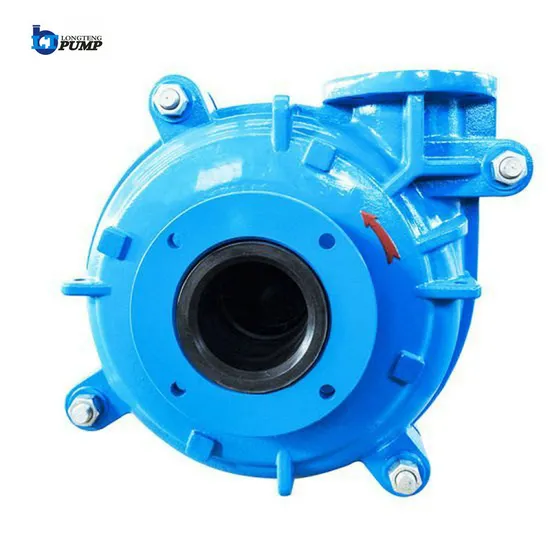

Product Description Horizontal Slurry Pump
Slurry pump are centrifugal pumps which are mainly used for pumping highly abrasive and high density slurry. These slurries are thick, viscous fluids that contain particles, which are hard to pump with traditional process chemical or water pumps. Under this situation, a heavy-duty slurry pump is used to do the work.
Slurry pumps are widely used in mining, drainage, dredging and Industrial (mineral processing) applications.
Shijiazhuang Longteng Machinery mainly produce 100% interchangeable with Well-know Brand slurry pumps, sludge pumps, mud pumps, sump pump, etc. The slurry pumps are available in a variety of sizes and configurations to satisfy the needs under different conditions. 100% interchangeable slurry pumps can pump abrasive fluids continuously, and the wearing parts can simply be replaced when worn without having to replace the whole pump, which can greatly reduce the cost.
Components(Wet End): Impeller
The impeller, either elastomer, or high-chrome material, is the main rotating component which normally has vanes to impart the centrifugal force to the liquid.
Casing
Split outer casing halves of cast contain the wear liners and provide high operation pressure capabilities. The casing shape is generally of semi-volute or concentric, efficiencies of which are less than that of the volute type.
Shaft and Bearing Assembly
A large diameter shaft with a short overhang minimizes deflection and vibration. Heavy-duty roller bearing are housed in a removable bearing cartridge.
Shaft sleeve
A hardened, heavy-duty corrosion-resistant sleeve with O-ring seals at both ends protects the shaft. A split fit allows the sleeve removed or installed quickly.
Shaft Seal
Expeller drive seal, Packing seal, Mechanical seal.
Drive Type
V-belt drive, gear reducer drive, fluid coupling drive, and frequency conversion drive devices.


The Importance of Using Horizontal Slurry Pumps in Mining Industry
1. In the mining industry, the efficient handling and transportation of high-concentration slurries containing solid particles are crucial for smooth operations. Horizontal slurry pumps have emerged as essential equipment in mining operations worldwide. This article explores the reasons why the mining industry relies on horizontal slurry pumps for its demanding applications.
2. Handling High-Concentration Slurries:
Mining operations often involve processing high-concentration slurries containing a significant amount of solid particles. Horizontal slurry pumps are specifically designed to handle these challenging slurries efficiently. With their robust construction and large capacity, these pumps can effectively transport mineral slurries, tailings, and ore concentrates, ensuring optimal production and processing.
3. Wear and Corrosion Resistance:
Mining environments are known for their abrasive and corrosive nature. Horizontal slurry pumps are engineered with wear-resistant materials and advanced internal linings that can withstand the harsh conditions encountered in mining operations. Their resistance to erosion and corrosion helps prolong pump life and reduces downtime and maintenance costs.
4. Efficient Handling of Coarse Solids:
Mineral ores and mining residues often contain coarse solid particles that can pose challenges to conventional pumps. Horizontal slurry pumps are designed with large passages and robust impellers, allowing them to handle and pump slurries with coarse solids effectively. This capability improves overall processing efficiency by minimizing blockages and ensuring uninterrupted operations.
5. Long-Distance Transportation:
Mining operations often require the transportation of slurries over long distances, such as from the mine site to processing or storage facilities. Horizontal slurry pumps are designed to handle the demands of long-distance transportation. Their high-performance design and hydraulic efficiency enable them to convey slurries over extended distances, ensuring a reliable and continuous flow of materials.
6. Adaptability to Harsh Environments:
Mining environments are characterized by challenging conditions, including high temperatures, high pressures, and harsh operating conditions. Horizontal slurry pumps are engineered to withstand these harsh environments, featuring robust construction, vibration resistance, and excellent sealing capabilities. This adaptability ensures reliable and stable pump performance, even in the most demanding mining applications.
Horizontal slurry pumps have become indispensable equipment in the mining industry due to their ability to handle high-concentration slurries, resistance to wear and corrosion, efficient handling of coarse solids, suitability for long-distance transportation, and adaptability to harsh mining environments. These pumps play a crucial role in ensuring efficient mining operations, reducing downtime, and maximizing productivity. By choosing reliable and high-quality horizontal slurry pumps, mining companies can improve their operational efficiency and achieve optimal performance in their mineral processing endeavors.
Slurry pump outline installation drawing:
SH Series Slurry Pump Details:
Motor drive include CV , CRz, ZVz, DCz four types.
Company Profile LongTeng Machinery have gained certification of ISO 9001:2000, and holds a compelte line for metal lined slurry pumps, like casting workshop, heat treatment, machining, assembling, quality testing etc.
LongTeng Machinery Co., LTD manufactures high quality metal and elastomer replacement parts which are fully interchangeable with well-know Brand pumps. With technical expertise, high quality, fair pricing, and product availability for the end-users or distributors, we got a very good reputation from customers and will continue to serve all your needs with full heart.
Regarding the operation and detailed application of Horizontal Slurry Pumps, please contact us and we will give you professional advice.
Certifications Our Advantages We are Shijiazhuang Long Teng Machinery Co. Ltd from China,a manufacturer and exporter of slurry pump and spare parts with more than 20 years experiences.We are delicated to save your cost and increase your profits.First,we can control our quality from materials until the pumps,so the quality is reliable.There are a series of test in our factory,such as Material Composition inspection,Finished parts composition inspection,Hardness test,Dimension test,Static balance and Dynamic balance testing.For pumps,we will do pressure test,so that it can be sealed and reliable,smooth operation.Next,for some commonly used spare parts,we have in stock,so the delivery time is shorter.Finally,we can provide perfect service system,including pre-sale service,after-sale service,even warranty & replacement service if any quality problems.So If choose us,you will not have any worries!
Our Project
Exhibition:
Packaging & Shipping Standard and strong Wooden Case for Exporting,in order to ensure the goods can reach you intactly
FAQ 1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.what can you buy from us?
Horizontal slurry pump, Vertical slurry pump(Submerged), Gravel/Sand pump, Dredger pump, ZGB Series Slurry pump, ZJ Series Slurrypump, Froth pump and spare parts or OEM.
3.Are you the manufacturer or trading company?We are professional manufacturer for slurry pumps and spare parts,experence more than 20 years in Shijiazhuang City.
4.What is your delivery time?
There are lots of inventory in our factory for the common pump parts.
5.What is your MOQ?
Also say no MOQ.
1 set for slurry pump and 1 piece for spare parts
In order to ensure the fastest feedback and correct quotation for you, we need to know the following information: 1. Inlet diameter 2. Outlet diameter 3. Working conditions 4. Head(m)
5. Flow(m3/h) 5. Particle size & content 6. PH
7. SG Regarding the operation and detailed application of Horizontal Slurry Pumps, please contact us and we will give you professional advice.

---
