Custom Static Dws Sorting System Dimension Weight Static Dws Machine Static Dws System for Express Parcel Warehouse Sorting

Product Description

Main Products of Gosunm Logistics Equipment
1. Loop Crossbelt Sorter
2. Linear Cross Belt Sorter
3. High Speed Narrow Belt Sorter
4. Dynamic DWS + Sorter Machine
5. Dynamic DWS
6. Static DWS Machine
7. Wheel Sorter Machine
8. Environmental Prolection Packaging
9. High-Speed Printing and Labeling Machine
10. Customized Logistics Parcel Sorting Solution Line
11. Warehouse Management System

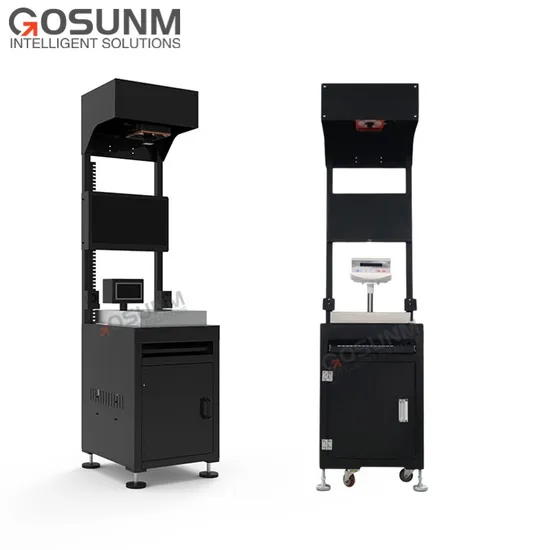

What Is Static DWS Machine
GOSUNM Static Dws Is an Intelligent Logistics Equipment Specially Developed to Realize Dimension Measurement Weighing, Code Scanning and Result Tracking of Packages Under Static Conditions. With the Code Reading Module and the Dimension Measurement Camera as the Core, The Static Weighing Module Is Matched to Collect Information Quickly and Accurately. It Can Be Used in Large-Scale Warehousing and Distribution Centers, And Can Also Be Used Separately in Retail Distribution, Express Delivery and Other Scenarios
Application Fields
E-Commerce, Express Delivery, Postal Service, Fresh Cold Chain, Distribution Center, Food, Beverage, Medicine, 3c Electronics, Daily Chemicals and Other Industries
Workflow
The Package Is Placed onto an Electronic Scale Using Either a Manual or Robotic Arm, And Subsequently Retrieved Once Data Collection Is Complete.
Features
1.Easy Deployment, Integrated Design of Camera Light Source
2.Dimension Measurement, Weighing, Code Scan and Result Tracking Are Integrated
3.Compact Overall Structure, Developed for Small Packages
4.Easy Operation, And the Operate Platform Conforms to Ergonomics.
Advantages
1.Bar width minimum 0.25mm
2.Parcel dimension maximum 500mm'500mm'500mm
3.Dimension accuracy :5mm
4.Scale maximum 50kg
5.Processing speed maximum 1000PPH
What Is Enlarged Static DWS
This Is an Enlarged Version of the Static Dws with a Weighing and Body Measurement Function, Which Can Be Docked to Larger Types of Goods, And Can Accurately Measure the Data and Upload It into the System, It Improves the Accuracy and Efficiency of Parcel Processing, Helps Companies to Reduce Costs and Improve the Quality of Service.

Equipment Technical Parameters
Body Accuracy				±20mm
Platform Size				700mm*700mm
System Docking				Customized
Camera Mounting Height				1200mm
Processing Rate				1000-1500 Pieces/Hour
Measuring Range: Maximum Size				Maximum Size (630*630*200mm) Minimum Size (200*200*20mm)
Weight Range				0.1kg-74.6kg

Guangdong GOSUNM Logistics Technology Co., Ltd
a joint venture established by three powerful logistics technology companies in China, is commited to sharing the experience of intelligent detection and sorting in logistics, e-commerce, and warehousing in China. lt has two production bases in Dongguan and Foshan, and an operation center in Hangzhou. The number of companies in the company is Over 200 people, production area over 20,000 square meters.
Customized Solutions
Provide customized design services one-on-one based on customer needs and data analysis
Assembly and Debugging
Provide One-Stop Services for Machine Transportation Assembly, Deployment, And Debugging
Professional Training
Provide Systematic Training for Machine Operators in Enterprises
After-sale Service
A Professional and Strong Operation and Maintenance Team, With Technical Guidance, Remote Services, And On-Site Services

---
