Stainless Steel Customized High Flow Cartridge Filter Housing

Product Description

Product Description
Material: SUS304/316L
Connection Type: Screw Thread Or Flange
Seal Material: Buna/Silicone/Viton
Seal Type: O-Type Seal Packing Ring
Apply To Strainer: 20"/40"/60"
Design Pressure: 1.0Mpa
Design Flow: 20-420m3/H
Surface Disposal: Sandblast or Polishing
Installation forms: Vertical / Horizontal
Product Features
- Food grade stainless steel liquid filter housing pp filter core oil filter housing
- Can be applied for most particles so it is broadly for precision filter and sterilization
- The material of the filter core is PP, PTFE, nylon, SS304/306L
- Optional hydrophilic (suitable for gas) or hydrophilic (suitable for liquid)
Product Parameters

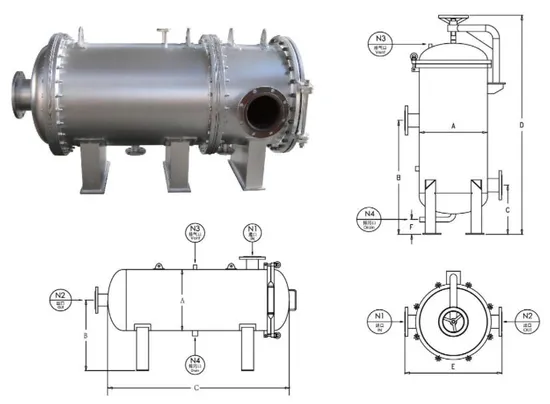

Model/Dimension

Amm

Bmm

Cmm

Dmm

Emm

Fmm

N1

N2

N3

N4

Flow

Volume

RH-1S4-L

Φ190

1320

200

1690

380

100

DN80

DN80

RC1/4"

RC1"

40m3/H

30L

RH-2S2-L

Φ400

1690

450

1970

560

100

DN80

DN80

RC1/4"

RC1"

80m3/H

150L

RH-2S3-L

Φ450

1690

450

1985

610

100

DN80

DN80

RC1/4"

RC1"

120m3/H

200L

RH-2S4-L

Φ500

1690

450

2000

700

100

DN100

DN100

RC1/4"

RC1"

160m3/H

250L

RH-2S5-L

Φ550

1740

500

2015

750

100

DN100

DN100

RC1/4"

RC1"

200m3/H

300L

RH-2S7-L

Φ650

1740

500

2040

890

100

DN125

DN125

RC1/4"

RC1"

280m3/H

440L

RH-1S4-W

Φ190

200

1500

/

/

/

DN80

DN80

RC1/4"

RC1"

40m3/H

30L

RH-2S2-W

Φ400

800

1780

/

/

/

DN80

DN80

RC1/4"

RC1"

80m3/H

150L

RH-2S3-W

Φ450

800

1790

/

/

/

DN80

DN80

RC1/4"

RC1"

120m3/H

200L

RH-2S4-W

Φ500

800

1800

/

/

/

DN100

DN100

RC1/4"

RC1"

160m3/H

250L

RH-2S5-W

Φ550

800

1820

/

/

/

DN100

DN100

RC1/4"

RC1"

200m3/H

300L

RH-2S7-W

Φ650

800

1850

/

/

/

DN125

DN125

RC1/4"

RC1"

280m3/H

440L

Product Application
Food and beverage industry: beer, wine, wine, sake, liquor, wine, fruit juice, bottled water, tea drinks, soy milk, syrup, dairy products, food additives, water filtration to clarify the process and CIP. Petrochemical industry: all kinds of lubricants and oil, glue, chemical fiber manufacturing process of various solution was filtered. Oil and gas industry: amine desulfurization, dehydration flux filter, oil field water, completion fluid filtration. Car paint, painting industry: paint, electrophoretic paint, pre-treatment fluid, paint and paint raw materials and solvent filtration Textile/printing and dyeing/paper making industry: spinning liquid, dyes, flux, water, additives, adhesives filter. Edible oils and soap industry: polishing purification of edible oil, soap raw materials and water filtration. Pharmaceutical industry: a variety of pharmaceutical intermediates, pharmaceutical raw materials, solvent filtration. The electronic and electroplating industry: a variety of plating solution and water filtration. Machining industry: a variety of cutting fluid, coolant and cleaning liquid filtration.
Etc...
Certifications
Packaging & Shipping
Company Profile
FAQ

Q: Are you manufacturer?

A: Yes, we are a manufacturer with over 15 years of history, address is located in Fengxian District, Shanghai.

Q: Can you provide sample? Free or chargeable?

A: Yes, we can provide free sample for filter elements, for filter housing need chargeable.

Q: Dose the product support customization?

A: We have a professional team of engineers, can provide customized solution plan according to customers need.

Q: What is the payment terms?

A: Usually we support the T/T.

Q: How to choose the shipping way?

A: We cooperate with professional logistics companies, and customer also can choose own freight forwarder.

---
