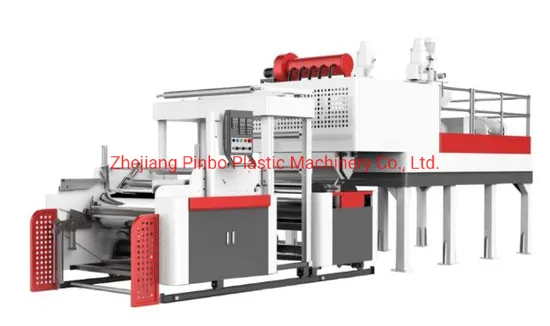

Automatic 1000 mm Cling Film Machine Group/Stretch Film Co-Extruder Machine

Product Description

PYM Double Layer Polyethylene Stretch Film Making MachineProduct Specification

Model No.	PYM-55/75*1250
Screw Diameter	55/75mm
Screw L/D	30:1
Screw Speed	50-150rpm
Layer Structure	AB/ABA
Film material	PE
Film Width	1000mm/2*500mm
Film Thickness	0.01-0.05mm
Electric power supply	Customized, Standard is 380V/50HZ/3P
Total Power	75KW
Capacity	80-150Kg/h
Total weight	8T
Dimension	7.5M*3M*3M

Product Advantages Easy operating, long life, energy saving Stable and reasonable extrusion High quality T-die for excellent film evenness and stability Enhanced cooling system
(adopts 720 mm diameter primary cooling roller and 370 mm diameter secondary cooling roller) Advanced oscillation (swing) system Highest winding speed (up to 200m/min) among similar stretch film machines High production capacity: up to 350 kgs/h at film thickness 23 microns and 150 m/min Optional full automatic thickness gauge Excellent stretch film rolls quality for both hand use rolls and stretch use rolls

---
