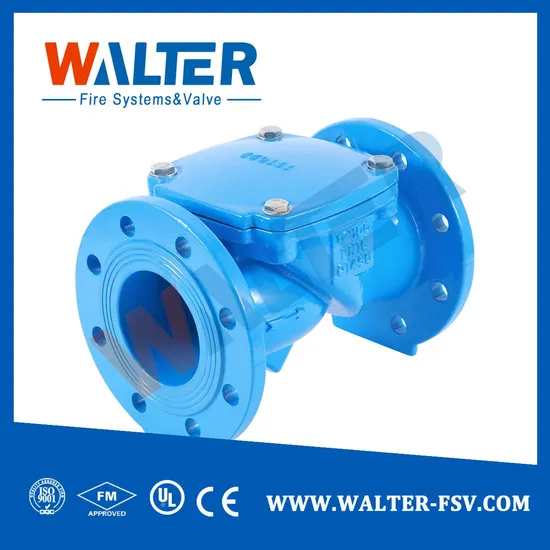

Cast Iron Non-Return Swing Check Valve for Water

US$49.00 2 Pieces (MOQ)

Basic Info.

Model NO.

H44X

Material

Cast Iron

Connection Form

Flange

Structure

Swing

Pressure

Low Pressure

Function

Nrvr Silence, Nrvz Silence

Flow Direction

Unidirection

Standard

DIN

Application

Water Industrial Usage

Name

Swing Check Valve with Lever & Weight

Body

Ggg40/45/50

Disc

D.I+EPDM Coated

Shaft

Ss420/431

Size

Dn50-600

Seal

NBR/EPDM

Coating

Epoxy Coated to 300 Microns

Connection

Flanged Bs 4504

Pressure Rate

Pn10/16

Equip

Lever and Weight

Transport Package

Bubble Bags & Wooden Case

Specification

2"-24"

Trademark

WALTER/ No Brand

Origin

Suzhou, Jiangsu

HS Code

8481300000

Production Capacity

6800 Sets Per Month

Product Description

Swing Check Valve with Lever & Weight
Cast/Ductile Iron Flex/Swing Check Valve is automatic type which are opened by the pressure of the fluid and closed by the reversing flow. The water hammer rising has been taken into consideration during design so it is reliable.
1- Body/Bonnet: GGG40/50
2- Stem: SS420/431
3- Bolts/Nuts: SS304
4- DISC: GGG40/50 + EPDM Coating
5- Epoxy Resin coating internal & external, thickness above 300 micron
7- Flanged acc to BS4504, ISO 7005. Face to Face acc. To BS 5153, DIN 3352
8- Work pressure: PN10/16; Size range: 1", 1 1/2", 2" to 24"
WALTER-FSV Company provide OEM Service for One Way Check Valve, swing check valve. Butterfly Check Valve. Etc...
