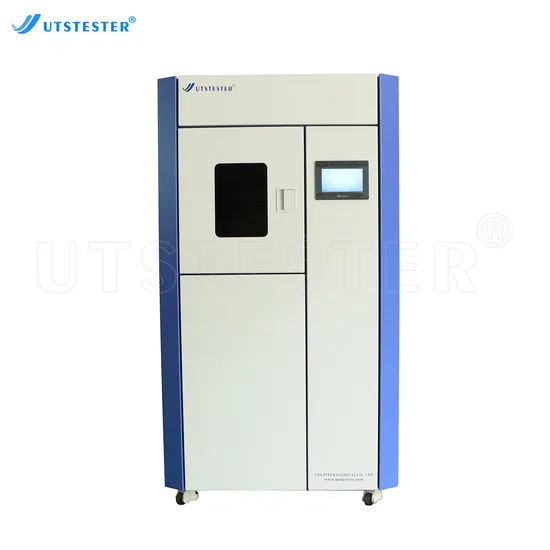

Color Fastness Testing Machine Light Fastness Tester Fabric Textile to Light

Product Description

Product Description
To do color fastness to light and weather test in the color fastness test. Also available for coatings, paper, paint, paint, rubber, plastic, wood, etc.
Standard

GB/T8427, GB/T14576 GB/T15102-2006 GB/T15104-2006 GB/T8430 AATCC TM16 ISO105-B04 ISO105-B02

Features 1.Digital light intensify settings, automatic adjustment, real-time monitor, to meet with the light resource stability requests of different standards.(420nm, 340nm or 300-400nm waveband optional)
2.Black plate thermometer(BPT), black plate standard thermometer(BST), irradiance detector and samples are measured at same position (equidistance) to show actual testing condition. Test data is transmitted synchronously with radio frequency identification technology and processed by CPU. Then display on the color screen by the means of digit, chart and curve, etc.
3.Adopts light energy technology to provide power for test and wireless transmission, which without extra power resource.
4. Equipped with parallel communication interface which is available for print test report out.
5. All of samples achieve timekeeping separately. And different samples can be tested at the same instrument, which is convenient for monitor to save operating cost.
6. Professional long arc xenon light technology to real simulate solar spectrum.
7. Industry temperature control(cooling) system to adjust temperature of inside chamber quickly and stable.
8. Ultrasonic humidification which is professional dehumidification system to ensure accurate and stable test humidity.
9. Built-in self-circular system and air filter system to reduce the requirements for environment.
10. Available to conduct continuously test for 1000 hours.
Product Parameters

Model	D002B
Test chamber temperature range	25~50ºC, resolution: 0.1ºC
Test chamber humidity range	Light cycle: 10-70%RH, humidity fluctuation: ±3%RH; Dark cycle: 30-95%RH, humidity fluctuation:±5%RH;
Test time control	0min~999:59h, accuracy: ±1min
Irradiance control	1-1.5W/m2/420nm, accuracy: ±0.03W/m2/420nm; Digit setting, auto compensation
Wave length(Can be control and monitored)	340nm, 420nm, 300-400nm, 300-800nm waveband optional
Xenon arc lamp rated power	3300W
Sample holder rotation speed	5rpm
Maximum exposure area	1755cm2
Sample holder quantity	AATCC: 100x75mm 9×2 pcs or ISO: 135x45mm 12×2 pcs
Each sample holder timing separately	≤10000h
Photoperiod	≤10000h
Spray period	≤10000h
Temperature range	(BPT) 40-80ºC, accurate ±2ºC; (BST) 40-85ºC, accurate ±2ºC
Display	10.4inch touch screen
Test data print out	Digital color screen display
Internal recycle water	High pure maximum flow: 0.5L/min
Power	AC380V±5% 50Hz 3.3kW
Dimension	920×650×1680mm
Weight	180kg

More Products
Company Profile
Our Exhibition
Our Customers
Our Advantages
FAQ
Q: How is your service?
- All of test devices will be calibrated and debugged before delivery to guaranty the quality.
- Our professional after-sale team will help you solving any problem within 24 hours* 7 days by emails or videos
- English operation manual and operation video will guide you how to use it.
- On-site machine training & installation can be provided with certain charges.
Q: What's your warranty period? A.12 months. In case of product problems, we provide needed spares parts for free during the warranty (exclude consumables and man-made damages)
Q: What's the payment term?
A: Usually TT, L/C are available. For others, please contact with us for negotiation.
Q: What's your lead time? A.We have professional production line and stuff whom can make a nice quality in a short time. Usually, within 5-25 days is ok, which is based on the stock status.
Q: Are you able to provide a ISO 17025 calibration certificate?
A: Yes, we generally provide two calibration certificates(optional).
• ISO 17025 certificate provided by a third party inspection company with charges.
• Calibration certificate provided by UTS without charges.
Q: Can you send report of fumigation report?
A: Our packing is composite board, not log, so it do not need fumigation treatment.
Thank You For Always Supporting UTS Products!

---
