1-1.2th Mzlh420 Biomass Pellet Press Machine Wood Pellet Mill Sawdust Wood Pellet Machine

Product Description

Sawdust Grass Cassava Coffee Grounds Pellet Mill Machine Rice Husk peanut shell bagasse wood pellet mill
1. Technical Parameter

Model	Constituent part	Power	Pellet size	Capacity	Weight	Dimension
		(KW)	(mm)	(Wood Sawdust ,Biomass)	(KG)	(mm)
MZLH320	Screw Feeder	1.1KW	4-12mm	0.3-0.4T/H	1500KG	2200*900*1300
	Force Feeder	0.55KW
	Pellet machine	37KW
MZLH350	Screw Feeder	1.1KW	4-12mm	0.5-0.6T/H	2200KG	2500*1100*1600
	Force Feeder	0.55KW
	Pellet machine	55KW
MZLH420	Screw Feeder	2.2KW	4-12mm	0.8- 1.2T/H	3200KG	2900*1150*2100
	Force Feeder	1.5KW
	Pellet machine	90/110KW
MZLH508	Screw Feeder	3KW	4-12mm	1.5-2.0T/H	4500KG	3000*1260*2150
	Force Feeder	1.5KW
	Pellet machine	110/132KW
MZLH678	Screw Feeder	3KW	4-12mm	2.0-2.5T/H	5800KG	3300*1450*2200
	Force Feeder	2.2KW
	Pellet machine	160/200KW
MZLH768	Screw Feeder	3KW	4-12mm	2.5-3.5T/H	6500KG	3300*1550*2200
	Force Feeder	2.2KW
	Pellet machine	200/220KW

2. Features 2.1. Main drive adopts high accurate gear drive,with an output of about 20% higher than belt drive,and the die adopts the quick removing clamps.

2.2. The drive part of the machine(including motor)optimize the high quality bearings made in Switzerland and Japan,which ensure high efficient and steady driving with low noise.

2.3. Adopts the frequency -conversion speed ,regulating control to guarantee quality pellet feed.

2.4. Main spare parts, such as ring dies& rollers etc. are produced strictly according to high quality standard. Ring dies are produced by automatic CNC gun drill machine&coutersinking machine, heat treatment by vacuum furnace, with long service life and making good feeds.

2.5. The international advanced compensation type flexible coupling is of novel and compact structure,safety,low noise and less trouble.

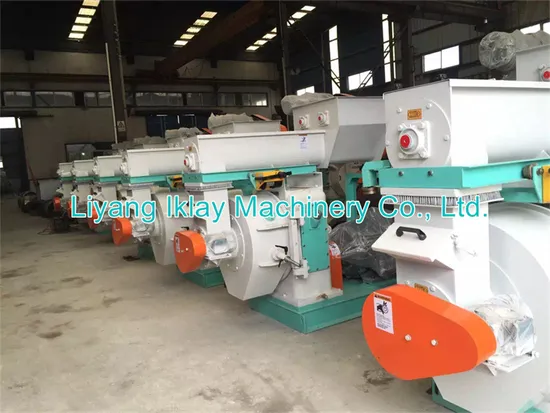

3. Photos of wood pellet mills/ wood pellet line
Liyang Iklay Machinery Co., Ltd. is a professional manufacturer and supplier specialized in designing, manufacturing, installing and commissioning: Poultry&livestock&aqua feed production line, Biomass pellet production line, Cat litter production line; Spare parts for hammer mill& pellet mill, such as ring dies, rollers, hammer blades and screens.
Our main products include precleaner, hammer mill, mixer, pellet mill, cooler, screener, automatic packing machine other auxililary equipments and spare parts etc. We have more than 10 years rich experience in the field.
We have been committed to providing customers with valuable services and high-quality products to satisfy your needs. It is for this reason that we have become a reliable and long time partner for our customer. Looking forward to our cooperation and realize win-win.

---
