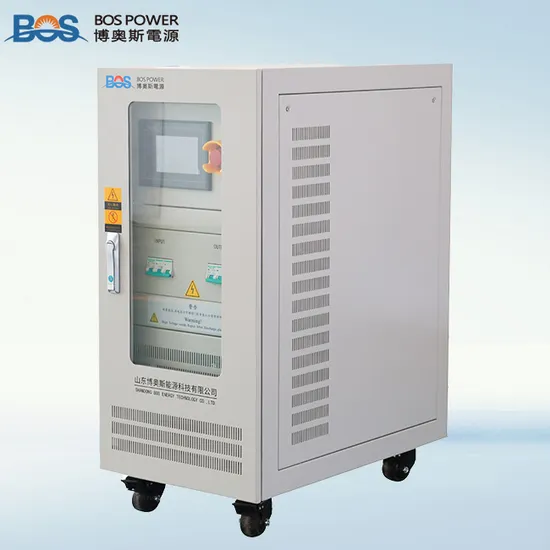

off Grid Pure Sine Wave Solar Power Inverter with Isolation Transformer

Product Description

Product Description
Product Overview
The BNSA series photovoltaic off grid inverters input direct current and output alternating current. Mainly used for solar and wind power generation systems. It has all the advantages of conventional inverters and can also provide absolute reliability for using new energy to generate electricity in mountainous areas, pastures, islands and other areas with inconvenient transportation and harsh environments without electricity.Product features
1.Low power consumption and high inverter conversion efficiency;
2.Using LCD touch screen to display various operating parameters, relevant parameters can be set;
3.Output a perfectly smooth sine wave, voltage harmonic waveform distortion rate ≤ 1%, stable on load;
4.Has a slow start function to avoid high current impact on the battery and load;
5.Strong adaptability to the environment, suitable for application in high-altitude, cold, and natural environments.The photovoltaic off-grid power generation system consists of photovoltaic modules, controllers, batteries, photovoltaic off-grid inverter power supplies, and distribution systems. Solar energy generates electricity through photovoltaic modules, charge and discharge management of the battery through the controller, and provides power to the DC load or provides power to the AC load through the off-grid inverter, This series of BNSA are suitable for places where no public power grid but solar energy resources are sufficient, such as: remote mountainous areas, islands, and plateau areas with harsh environment.
Product Parameters
1.

Device model	BNSA- 3KD	BNSA- 5KD	BNSA- 10KD	BNSA- 15KD	BNSA- 20KD	BNSA- 30KD	BNSA- 40KD	BNSA- 50KD	BNSA- 60KD
Device power	3kVA	5kVA	10 kVA	15kVA	20kVA	30kVA	40kVA	50kVA	60kVA
Input DC index
Input voltage range	DC 176 -380V							DC 304-480V
Input rated voltage	DC 220V							DC 380V
Input rated current	13A	22A	45A	68A	90A	135A	180A	131A	157A
Output AC index
Output power supply system	Single-phase two-wire
Output rated voltage	AC 220V
Output rated frequency	50Hz
Output rated current	13A	22A	45A	68A	90A	135A	180A	225A	270A
Overload capacity	120% 1min ,150% 10s ,200% 1s ,300% Protect immediately
Output voltage stability	≤±1%
Output frequency stability	≤0.01%
Output voltage distortion	THDu≤1%
Inverter efficiency	≥90%
Protection function	Input undervoltage, overvoltage, overheating protection, output undervoltage, overvoltage, overload, short circuit protection, etc
Display and communication
Display function	LCD touch screen
Communication function	RS485(standard)/RS232(optional)/Ethernet port(optional)
Use environment
Working environment	When the ambient temperature is -5 ºC -45 ºC and the relative humidity is 0-95%, it can work continuously for 24 hours
Protection level	IP20
Cooling method	Fan forced air cooling
Altitude	≤5000m
Other performance
Compressive strength	AC1500V/1min/No breakdown
Insulation resistance	≥100MΩ
Noises	≤55dB(A)
Size(W*D*H) (mm)	482*482* 266( 6U)	350*560* 600 +( 75 with wheels)	400*650* 700 +( 100 with wheels)	500*820*1000+(100 with wheels)			520*1160* 1250+ (105 with wheels)	650*1420*1365 +( 105 with wheels)

2.

Device model	BNSA- 10KS	BNSA- 20KS	BNSA- 30KS	BNSA- 40KS	BNSA- 50KS	BNSA- 60KS	BNSA- 90KS
Device power	10kVA	20kVA	30kVA	40kVA	50kVA	60kVA	90kVA
Input DC index
Input voltage range	DC 176-380V				DC 304 -480V
Input rated voltage	DC 220V				DC 380V
Input rated current	45A	90A	135A	180A	131A	157A	236A
Output AC index
Output power supply system	Three-phase four-wire
Output rated voltage	AC 380V
Output rated frequency	50Hz
Output rated current	15A	30A	45A	60A	75A	90A	135A
Overload capacity	120% 1min ,150% 10s ,200% 1s ,300% Protect immediately Protect immediately
Output voltage stability	≤±1%
Output frequency stability	≤0.01%
Output voltage distortion	THDu≤1%
Inverter efficiency	≥90%
Protection function	Input undervoltage, overvoltage, overheating protection, output undervoltage, overvoltage, overload, short circuit protection, etc
Display and communication
Display function	LCD touch screen
Communication function	RS485(standard)/RS232(optional)/Ethernet port(optional)
Use environment
Working environment	When the ambient temperature is -5 ºC -45 ºC and the relative humidity is 0-95%, it can work continuously for 24 hours
Protection level	IP20
Cooling method	Fan forced air cooling
Altitude	≤5000m
Other performance index
Compressive strength	AC1500V/1min/No breakdown
Insulation resistance	≥100MΩ
Noises	≤55dB(A)
Size(W*D*H) (mm)	500*830*1000( +105 with wheels)		520*1160*1250+( 105 with wheels)		650*1420*1365+( 105 with wheels)

3.

Device model	BNSA- 100KS	BNSA- 120KS	BNSA- 150KS	BNSA- 200KS	BNSA- 300KS	BNSA- 400KS	BNSA- 600KS	BNSA- 800KS
Device power	100kVA	120kVA	150kVA	200kVA	300kVA	400kVA	600kVA	800kVA
Input DC index
Input voltage range	DC 384-780V
Input rated voltage	DC 480V
Input rated current	208A	250A	312A	416A	625A	833A	1250A	1666A
Output AC index
Output power supply system	Three-phase four-wire
Output rated voltage	AC 380V
Output rated frequency	50Hz
Output rated current	150A	180A	225A	300A	450A	600A	900A	1200A
Overload capacity	120% 1min ,150% 10s ,200% 1s ,300% Protect immediately
Output voltage stability	≤±1%
Output frequency stability	≤0.01%
Output voltage distortion	THDu≤1%
Inverter efficiency	≥90%
Protection function	Input undervoltage, overvoltage, overheating protection, output undervoltage, overvoltage, overload, short circuit protection, etc
Display and communication
Display function	LCD touch screen
Communication function	RS485(standard)/RS232(optional)/Ethernet port(optional)
Use environment
Working environment	When the ambient temperature is -5 ºC -45 ºC and the relative humidity is 0-95%, it can work continuously for 24 hours
Protection level	IP20
Cooling method	Fan forced air cooling
Altitude	≤5000m
Other performance index
Compressive strength	AC1500V/1min/No breakdown
Insulation resistance	≥100MΩ
Noises	≤55dB(A)
Size(W*D*H)(mm)	650*1420*1365+( 105 with wheels)			1550*850 *1880 +( 105 with wheels)	1910*1160*1940		3100*900*2080

If other specifications are required, customization can be made according to requirements.Company Profile
Shandong BOS Energy Technology Co., Ltd. (referred to as BOS) is a high-tech enterprise in Shandong Province specializing in the research and development, manufacturing, sales, and service of power equipment. For more than 20 years, BOS has focused on power electronic conversion technology. Committed to providing customers with the best system solutions, our products include AC/DC test power supplies, AC/DC power supplies, shore power, and new energy product lines. The production base covering an area of 20000 square meters, built in 2010, has an annual output value of over 100 million yuan. BOS is one of the most influential "leading enterprises" among domestic high-power power supply manufacturers.
BOS has multiple national patents in the field of power supply and has passed international ISO9001 quality system certification, ISO14001 environmental management system certification, and ISO45001 occupational health and safety management system certification; And has successively won honors such as specialized and innovative, gazelle enterprise, and high-tech enterprise, as well as awards such as "Best Supplier of Small and Medium Power Bidirectional Energy Storage Inverters"; Establishing an energy conversion and energy storage engineering technology center; It is a member unit of the China Power Association, a member unit of the Port Science and Technology Committee, an executive director unit of the China Renewable Energy Association, and a qualified supplier for procurement by the Chinese Academy of Sciences.
Certifications
On Site Filming Of The Project
Packaging & Shipping
Our Advantages
FAQ
1.Q:Are you manufacturers?
--Yes, we have an independent factory covering an area of over 20000 square meters.
2. Q:Can the power of the product be customized?
--Yes, we can customize products according to your needs.
3.Q: Is there any guarantee for after-sales service after purchasing products from your store?
--Yes,during the warranty period, we will regularly visit customers and collect feedback information to continuously improve the quality of our company's products and services.
4.Q:How is your production management and quality control?
--Our company's production process for all products follows ISO9001, with professional operators controlling each production step. Quality inspectors also conduct regular inspections, and after each product undergoes performance testing, a comprehensive quality inspection will be conducted.

---
