| US$2,500.00-4,000.00 | 1 Piece (MOQ) |

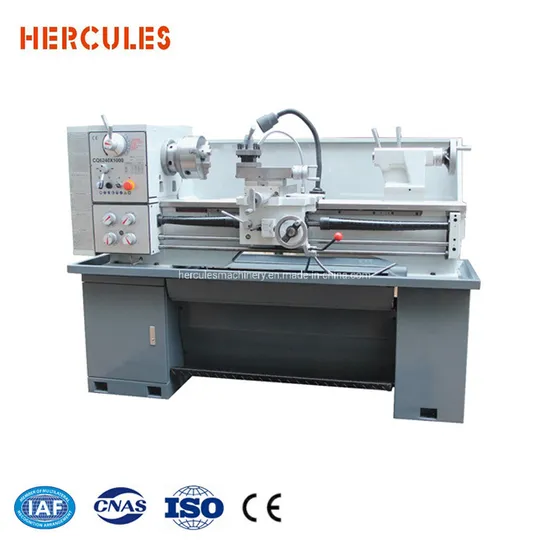

| Specification | CQ6230A | CQ6232C | C0636D | CQ6240 |
| Max. Swing over bed | Φ310mm | Φ330mm | Φ360mm | Φ400mm |
| Max. Swing over cross slide | Φ180mm | Φ224mm | Φ250mm | |
| Max. Swing over gap | Φ450mm | Φ470mm | Φ502mm | Φ520mm |
| Distance between centers | 750/910/1000mm | 1000mm | 1080mm | |
| Width of bed | 181mm | 180mm | 218mm | |
| Spindle nose | Φ38mm | Φ52mm | Φ52mm | |
| Taper of spindle bore | D1-4 | D1-5 | D1-5 | |
| Range of spindle speeds | 65-1810RPM | 70-2000RPM | 65-1810RPM | |
| Metric threads range | 0.4-7mm | 0.4-7mm | 0.4-7mm | |
| Inch threads range | 4-60T.P.I | 4-56T.P.I | 4-56T.P.I | |
| Range of longitudinal feeds | 0.0527-1.2912mm/rev | 0.052-0.392mm/rev | 0.052-0.392mm/rev | |
| Range of cross feeds | 0.011-0.276mm/rev | 0.014-0.380mm/rev | 0.014-0.380mm/rev | |
| Max. travel of cross side | 130mm | 170mm | 170mm | |
| Max. travel of top side | 75mm | 95mm | 95mm | |
| Max. travel of tailstock quill | 100mm | 100mm | 100mm | |
| Taper of tailstock | M.T.#3 | M.T.#4 | M.T.#4 | |
| motor power | 1.5kW | 1.5kW | 2.2kW or 1.5/2.4kW two speeds optional | |
| Standard Accessories: | Optional Accessories | |||
| 1.Ø200mm 3-jaw chuck | 1.Ø400mm Face plate | 6.4-position stop for saddle | ||
| 2.Thread chasing dial | 2.Ø250mm 4-jaw chuck | 7.4-position stop for cross slide | ||
| 3.Chip guard | 3.Ø20-120mm Small steady rest | 8.Micro stop for saddle | ||
| 4.Chuck cover | Ø90-200mm Large steady rest | 9.Quick change tool post | ||
| 5.Foot brake | 4.Ø20-60mm Follow rest | 10. Damping washer | ||
| 6.Oil gun | 5.Ø250mm Drive plate | 11.Taper turning attachment(TTA) | ||
