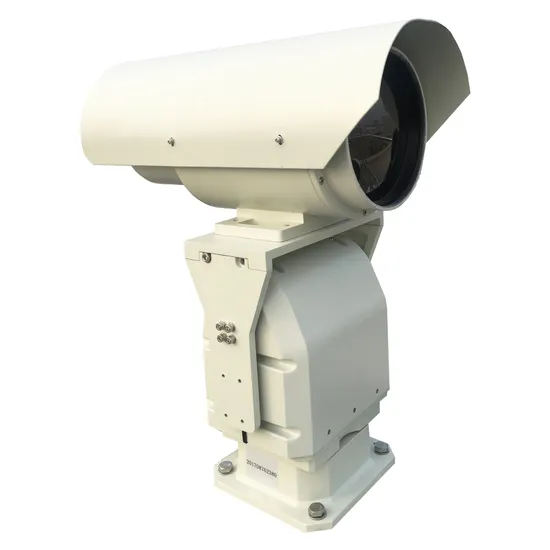

Swir Lwir PTZ Thermal Imaging Camera for Industrial Surveillance

Product Description

Main features
1. High resolution uncooled microbolometer infrared focal plane arrays, vox
2. 25µm or 17 µm pixel, image quality fine, observe small target more clearly, further detection distance
3. High sensitivity, NETD can reach 50mk and frame at 25Hz
4. Word originate 30~150mm continuous zooming,can search in a wide range as well as identify target far, not lost target
5. Image noise reduction processing, add DDE function; output hot white/ hot black/pseudo color
6. Low power consumption, quick start-up, stable performance, image clearly with high uniformity
7. RS 485 interface control, analog video signal output
8. Simple operation, easy to use and maintain
9. Precision casting aluminium alloy shell, sealed and waterproof, nitrogen inside, anti-harsh environment, overlength working lifetime
Technical indicators

Monitoring distance	Object	People(1.8m×0.5m)	Vehicle(2.3m×2.3m)
	Detect	4320m	11880m
	Recognize	1080m	2970m
	Identification	540m	1440m
Detector	Detector type	Uncooled FPA detector(vox)
	Resolution	384×288, pixel 25µm (640×512 optional)
	Spectrum	8~14μm
	NETD	≤50mK
	Frame	25Hz
	FFC	Auto/Manual/scene
	Image process	DDE, pseudo color
	Video output	PAL
Thermal lens	Focal length	36~180mm, 5x optical zoom
	FOV	2.5°×2.0°~12.7°×10.2°
	F	1.0 ~ 1.2
	Lens control	E zoom/focus(auto focus is optional)
Pan-tilt	Rotating angle	Pan:0°~ 360°continuous; Tilt:+30°~ -45°
	Rotating speed	Pan:0.1°~9°/S; Tilt:0.1~4°/S
	Presets	255
	Agreement	Pelco-D, Pelco-P Optional
	Baud rate	2400/4800/9600/19200 bps Optional
	Interface	RS485
	Power supply	AC24V±10%, 50Hz
	Power consumption	≤30W
	Working temperature	-25ºC~+55ºC
	Storage temperature	-40ºC~+65ºC
	Load capacity	20kg
	Weight	10Kg
	Size	265mm×180mm×315mm(L×W×H)
Interface	Power supply interface	DC12V
	Other interface	RS485, BNC video output
Environmental indicators	Working temperature	-25ºC~+55ºC(-40ºC~+55ºC customized)
	Storage temperature	-40ºC~+65ºC
	International protection	IP66
	Anti-vibration	GB/T 4857.10-2005
	Anti-impact	GB/T 15412-94 Free drop test method
	Anti-thunder	2000V
Power	Power supply	DC12V(equip AC220V/DC12V power adapter)
	Power consumption	≤8W
Physical features	Weight	≤7Kg
	Size	440mm×213mm×217mm(L×W×H, contain sunshield cover)
	Installation	Outdoor base installation

Thermal Camera Series
Application

Sheenrun products are widely used for outdoor surveillance such as oilfield monitoring, city monitoring project,
frontier defense, shipboard / seaport / railway / highway / airport / reservoir / tourist sites monitoring etc.

Package & Delivery
>>> PackageStandard Wooden or Carton cases >>> Delivery7-20 days after order confirned, detail delivery should be decided according to
production season and order quantity.
Our Services
1. We generally offer one year warranty. Extended warranty is also available.
2. Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed.
3. OEM available.
4. Customized product available.

Certification
Company Introduction
China Sheenrun Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment
supplier, Sheenrun adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom
infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom
thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.
