Water Glue & BOPP Thermal Lamination Film Laminate Machine

Product Description

Product Description
Feature:
1. Air pump pressure gluing is adopted, which can automatically adjust the gluing amount, apply glue evenly, recycle and save glue loss;
2. silicone rubber rollers imported materials, with sticky ink under high temperature, high pressure, non-stick characteristics of the paper;
3. magnetic clutch brake tension control, tension can be adjusted according to the need of the corresponding size;
4. photoelectric automatic tracking correction system, non-contact touch long life, high reliability, corrective effect is more ideal;
5. Manual Oil pressure booster system to provide greater composite coating roller, the pressure is sufficient to meet the needs of a variety of laminating film;
6.Tag anti-curling device(this has country been patented,patent number:2015208631878).
Teachnical Specifications:

Name:	XHM500S-J Water Glue & BOPP Thermal Lamination Film Laminate Machine(Correcting)
Model:	XHM500S-J
Max. Rewind diameter:	520mm
Roll laminating width:	100mm(min)~420mm(max)
Core Diameter:	76mm
Roller length:	500mm
Film covering method	Multifunctional (glue coating / heating coating)
Laminating Speed:	6~70m/min
Laminating Temperature:	80-130ºC
Heating Way:	Heating oil
Heat conducting oil Model:	320#
Voltage and Power:	380V,6KW
Overall Dimension:	1600×1200×1350
Weight:	0.8t

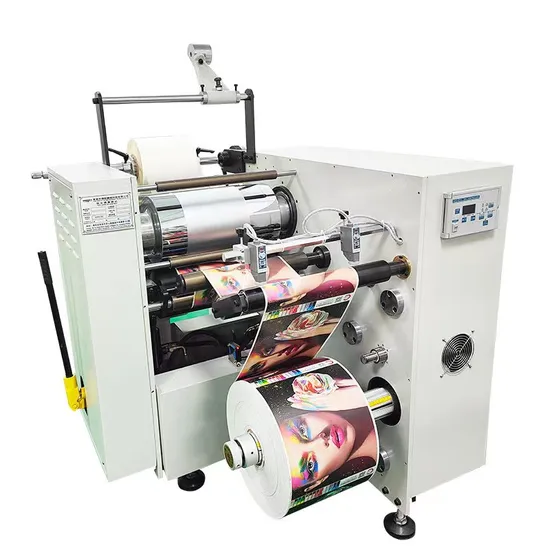

Machine Detailed Pic for Reference:
bout us Our company focus on researching and designing(R&D), quality control and after sale service, so we have the ability to provide high quality, reasonable priced products. Since so many years our printing and packaging machines have been well accepted by customers from more than 20 countries. Packing and Loading of Machine:

---
