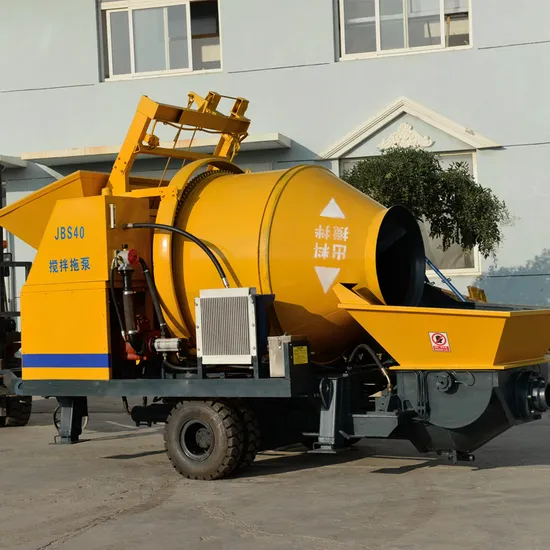

30/40 M3/H Concrete Mixer Pump Diesel or Electric High Quality and Large Flow

Product Description

Advantages of concrete mixer with pump
1.Concrete mixer and pumping are combined into one,
which reduces the procurement cost
2.On-site mixer and continuous pumping greatly improve the construction efficiency and speed up the construction process
3.In the process of stirring and pumping, only one operator is needed,and the operation is simple and the degree of mechanization is high, which greatly saves labor 4. Concrete mixer with pump is convenient and flexible to move and has strong maneuverability, which is very suitable for alternate operation of multiple construction sites
Product Specification

	Unit	JBS/JBTS 30	JBS/JBTS 40
Theoretical output	m3/h	30	40
Max. concrete pumping pressure	Mpa	10	10
Power type		Motor/Diesel engine	Motor/ Diesel engine
Main electric motor	kw	37/66	45/84
Main oil pump		Kawasaki	Kawasaki
Main oil pump capacity	ml/min	71	112
Theoretical delivery distance	m	120/350	160/500
Hopper capacity	L	550	550
Max. aggregate diameter	mm	20/30	30/40
Inside diameter of delivery pipe	mm	Φ100	Φ150
Loading capacity of the mixer	L	560	720
Unloading capacity of the mixer	L	350	450
Mixing motor	kw	5.5	5.5
Hoisting motor	kw	4.5	4.5
Dimension length x width x height	mm	4500x2200x2800	4800x2200x2800
Total weight	kg	5000	5500

Product Details
Packing & Successful Project

Certifications

Company Profile
HENAN HENGYUAN CO.,LTD
Henan hengyuan Co., Ltd. is a professional engage in the research development sale and service on construction machinery:concrete batching plant, concrete pump,concrete mixer with pump,mobile concrete batching plant,stabilized soil mixing plant and cement silo.
Our office is located in Zhengzhou City, Henan province.Our factory is located in Xingyang, Zhengzhou City.Hengyuan concrete machinery has a long history of 25 years and was established in 1999.All of hengyuan products have passed ISO9001 and the batching plant have passed CE certification.
We have professional engineer support, high efficiency sales team and competitive price superiority, and attract customers from all over the world.Our main market including Canada,Uzbekistan, Russia, Peru,Brazil and Africa.
We are equipped with the CNC cutting machine, robot welding machine to ensure machine quality. Our R&D department provide the strong technical support and enable us to receive some OEM, ODM projects.We are reliable supplier of the construction machines supply with 18 months warranty.


FAQ
Q: Are you trading company or a source factory?
A:We are factory.We mainly design and manufacture concrete equipment
(concrete batching plant, concrete pump)
Q: What are the terms of payment in your formal trade?
A:Normally we can work on T/T term.
T/T: 30%T/T prepayment , 70% paid by T/T before delivery.
Q: What about the delivery time?
A:Usually 15-20 days after receving the deposit.
Q: What's your after-sale service?
A:18 months warranty for main parts since departure.
On-site installation, debugging, workers training. Make sure that your
workers operate properly and know daily maintenance well.
Q: What should I do if I experience a problem on our equipment?
A: You could email us the photos to show what happens or call us.
Also on-site technician service available as request.

---
