L Split Frame Pipe Cutting and Beveling Machine

Product Description

Pipe & Flange | Cutting | Beveling | Facing | Drilling | Boring
OVERVIEW

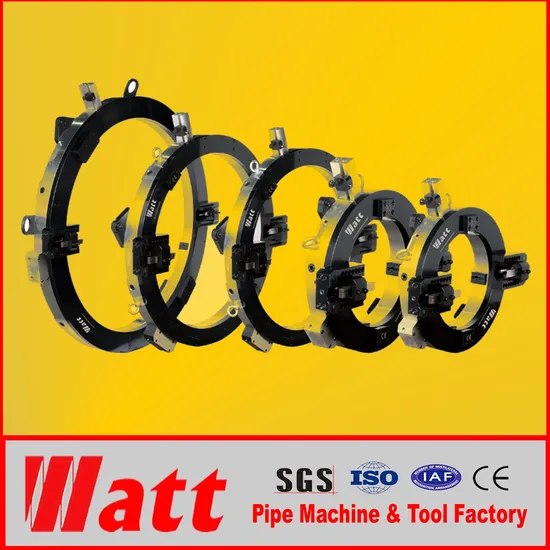

watt split frame pipe cutting and beveling machine, designed to cut, bevel, single point, counterbore and face on the pipe, tube and flanges. It is a portable pipe cutting and beveling machine tools of clamshell style. smartly designed, ability to split in half at the frame, easy to install on the pipe line. It is comprehensive used in pipework of oil, gas, food, petroleum, chemical, boiler, medicine machine, nuclear power, and power supply construction. 16 models are available in 6 inch (152.4mm) increments, with additional sizes available by special order.

Features and Advantages
1,16 models, Working range for pipe OD 1"-48"
2,Non-standard model can be customized
3,Out-mounted style, clamping by multipoint jaws.
4,Split frame technology, easy to install on the pipeline.
5,Cold cutting and beveling, don't influence the pipe's material.
6,Auto feed, cutting and beveling at the one time, cost effective.
7,Varity of beveling shape: "U","V","Y",J", double "V", compound bevels.
8,Stationary ring is steel; rotation ring is aluminum, and steel optional
9,Electric. pneumatic, numerical controller and hydraulic drive options are available.
10,Several different drive options are available to best position the motor for a specific machining application.
11,It can be equipped a wide range of accessories to increase performance and expand capabilities.

CAPABILTY
1,Pipe cut off
2,Pipe end beveling
3,Pipe facing
4,Cutting and beveling
5,Compound beveling
6,Counterboring
7,Flange facing
8,Grooving

BEVELING SHAPE

*other beveling shape, angle and pipe material, please declare before order

SPECIFICATION
Portable split frame pipe cutting and beveling machine

model				Working range		Wall thickness(mm)		Rotating speed (rpm)
				OD(mm)	OD (inch)	Single operation	Multi operation
L3	QL3	SL3	YL3	Ф10~90	3/8"~3"	≤25	/	34
L6	QL6	SL6	YL6	Ф25~168	1"~6"	≤25	≤50	24
L8	QL8	SL8	YL8	Ф50~219	2"~8"	≤25	≤50	23
L10	QL10	SL10	YL10	Ф114~273	4"~10"	≤25	≤75	23
L12	QL12	SL12	YL12	Ф168~323	6"~12"	≤25	≤75	23
L14	QL14	SL14	YL14	Ф219~355	8"~14"	≤25	≤110	23
L16	QL16	SL16	YL16	Ф254~406	10"~16"	≤25	≤110	22
L18	QL18	SL18	YL18	Ф323~457	12"~18"	≤25	≤110	20
L20	QL20	SL20	YL20	Ф355~508	14"~20"	≤25	≤110	20
L22	QL22	SL22	YL22	Ф406~559	16"~22"	≤25	≤110	14
L24	QL24	SL24	YL24	Ф457~610	18"~24"	≤25	≤110	14
L30	QL30	SL30	YL30	Ф610~762	24"~30"	≤25	≤110	13
L36	QL36	SL36	YL36	Ф762~914	30"~36"	≤25	≤110	11
L42	QL42	SL42	YL42	Ф914~1066	36"~42"	≤25	≤110	10
L44	QL44	SL44	YL44	Ф980~1160	38"~44"	≤25	≤110	9
L48	QL48	SL48	YL48	Ф1040~1240	40"~48"	≤25	≤110	9
L51	QL51	SL51	YL51	Ф1150~1300	45"~51"	≤25	≤110	8
L60	QL60	SL60	YL60	Ф1320~1540	52"~60"	≤25	≤110	5
L67	QL67	SL67	YL67	Ф1500~1700	59"~67"	≤25	≤110	4
L75	QL75	SL75	YL75	Ф1700~1910	67"~75"	≤25	≤110	4
L83	QL83	SL83	YL83	Ф1905~2100	75"~83"	≤25	≤110	3
L91	QL91	SL91	YL91	Ф2100~2310	83"~91"	≤25	≤110	2

POWER SUPPLIES

Electric: Convenient power supply Stable Performance Popular choice Electric requirement:220-240V 1PH 50/60HZ Carbon brush Motor:1.43KW,1.7KW,2.4KW Brushless Motor: 1.5KW,2.0KW,3.0KW Double motor for big model or heavy duty	Pneumatic: Explosion Proof Stable Performance Easy to maintenance Air requirement:1500-2000L/min @0.63-0.8Mpa Power:2HP,3HP,4HP Double motor for big model or heavy duty
NC: Powerful drive, High efficiency Low noise ,Stable Performance Ideal for heavy wall thickness & large size pipe Electric requirement: 230V 1PH 50/60Hz; 380V 3PH 50/60Hz Power:2.0KW or 3.0KW Double motor for big model or heavy duty	Hydraulic: Powerful drive, High efficiency Stable Performance, Low noise, Anti-explosion Ideal for heavy wall thickness & large size pipe Hydraulic requirement:28-50L/min @13Mpa Electric requirement: 380V 3PH 50/60Hz Rated Pressure:13MPa Rated flow:28L/min Max.Torque:380NM

TOOLING
Form Style and Insert Style
HSS, HSS Co, Carbide
Make more tooling on demand

Form Style Material:M42 and M35 Type:Sever,bevel,double bevel, compound bevel,counterbore Angle:0°,30°,37.5°, Double 30°,37.5°+10° Size:90mm,150mm,200mm	Insert style Material:Holder HSS ; Insert: HSS-Co or Carbide Type:Sever,bevel,double bevel,compound bevel, Angle:0°,30°,37.5°, Double 30°,37.5°+10° Size: 90mm,150mm,200mm
