Basic Info.
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Operation
Soil Preparation Machinery, Movable Operation
Arbor Configuration
Horizontal Axis
Tyre Paramter
(400/60-15.5)/4
Transport Package
Ship Delivery
Specification
1ZLD-6.3/ 7.2 /8.5
Product Description

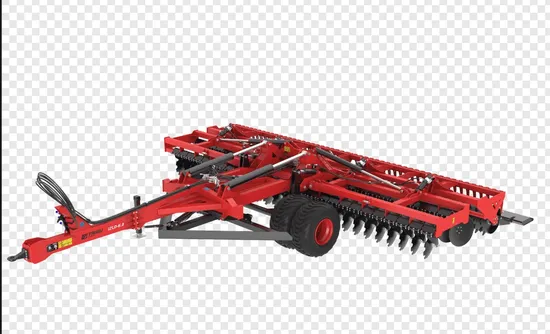

Product Overview Pull hitch Combined Tillage Machine
Taigu combined tilling machine is a comprehensive operation equipment that can finish complete soil crushing, suppression and smoothing of cultivated land. It can make the seedling bed to conserve soil moisture at one time and greatly improve operation efficiency. It is collapsible, after folding area and height is greatly reduced, reduce the difficulty of transportation and storage.
Product Advantages
1. Taigu combined tilling machine is a comprehensive operation equipment that can completly finish the soil crushing, suppression and smoothing of cultivated land, which can make the seedling bed to conserve soil moisture at one time and greatly improve the operation efficiency.
2. Collapsible, after folding area and height is greatly reduced, reduce the difficulty of transportation and storage.
3. Independent rake, using special rubber strip, in the torsion Angle of 30°, the torsion stiffness is not less than 100kg
4. Identifiable hydraulic joint, according to the color,can quickly identify the line function, can effectively reduce the risk of misconnection with the tractor interface.
5. The cultivated land depth adjustment mechanism can directly adjust the cultivated land depth by increasing or reducing the number of blocks.
| 1ZLD-6.3 | 1ZLD-7.2 | 1ZLD-8.5 |
Overall size(L*W*H) | 7600*6640*1300 | 7600*7540*1300 | 8250*8840*1300 |
Folded size(L*W*H) | 5630*3090*3350 | 6280*3090*3350 |
Power(hp) | 180 | 200 | 220 |
Connecting way | Pull hitch |
Working width(mm) | 6300 | 7200 | 8500 |
Weight(t) | 5.3 | 5.7 | 6.4 |
Tyre model/qyy. | (400/60-15.5)/4 |
DIsc diameter | 510mm/610mm |
Company Introduction
Brief introduction
Nantong TAIGU Agricultural Technology MACHINERY Co., Ltd. is a large-scale company specializing in the research and development, production and sales of intelligent agricultural machinery and tools. Grass machine, straw returning machine, orchard shredder, etc. As a professional manufacturer of seed cotton balers, our company not only has a variety of advanced equipment, but also has professional development technicians and management personnel. With excellent product quality and timely after-sales service, it has won the unanimous approval of the majority of users. Manufacture Equipment and Quality Control
1. Machining Facility 1)3 sets Germany Trumpf laser cutting machine , 4 sets Yangzhou Yawei CNC bending machine , welding robot,and CNC machining center ensure the processing accuracy of spare parts. 2)High precision balancing instrument. Coordinate detector, salt spray tester, hardness tester, test platform are used for experiment. 3)Computer-aided manufacture ensures the efficiency and accuracy. 4)Adopting precise material analyzer and advanced forging equipment. Using good quality forging steel to manufacture spare parts that features stable structure and long usage life and can ensure the accuracy. 2.Product and Technology Development Path 1. Hydraulic, transmission electric control system 2. Power system sensor Internet + 3. Hydraulic and power systems combined with market demand
3.Existing technical features and products 1.Double helix arrangement, starting load is small, ultra-high speed operation is stable 2.Special wear resistant coated blade 3.Hydraulic capping system 4.Full hydraulic power system PLC control system
Taigu Culture
We hope to keep close contact with every user, through our in-depth understanding of you, design and produce more in line with the needs of u sers. We are constantly challenging ourselves and developing new produc ts and markets. This is what keeps our Taigu team young and motivated.
Certificate
SALES AND SERVICE NETWORK
FAQ
Q1: Are you a trading company or factory? A1:We are factory. We are a large-scale company specializing in the research and development, production and sales of intelligent agricultural machinery and tools manufacturing mainly combined tillage machine, cotton picker packing wrap film, and power-driven rake.
Q2: What is your delivery time?
A2: Normally 30-45 days depends on what kind of machines.
Q3: How to install our machines when it arrives if I am new in this industry?
A3: We will send our engineers to your factory and support training and commissioning guidance to customer's engineer if needed.We also provide the online support and remote guidance with internet.
Q4: Can I get the spare parts?
A4: We will send easily-worn spare parts for free, we also have the spare parts list with details,and will send them together with the machine.
Q5: What is your guarantee?
A5: We have one year guarantee and life-long technical support. Our service also including machine maintenance.
Q6: When I can receive the quotation of product I inquired before?
A6:Once we get the details of what product you want, we will sent the quotation within 24 hours.
>>
