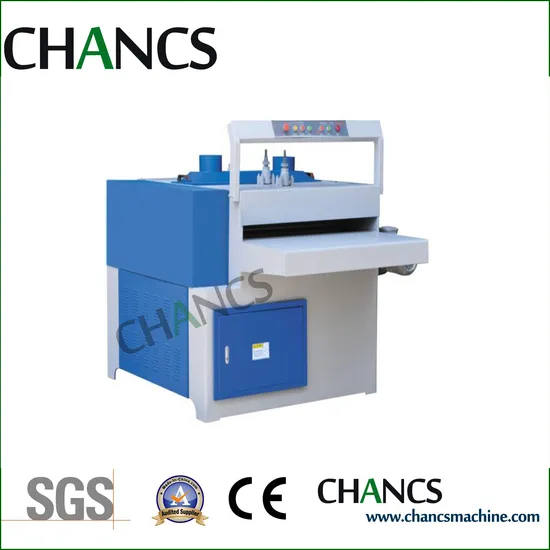

Woodworking Machine Multi Blade Rip Saw for Slab

US$1.00-2.00 1 set (MOQ)

Basic Info.

Model NO.

MJ-Q2-1250-70

Power Type

Electric

Layout

Horizontal

Controlling Mode

CNC

Automatic Grade

Semiautomatic

Precision

High Precision

Customized

Condition

New

Color

Customized

After-sales Service

Free Service on Internet

Working Thickness

10-70mm

Transport Package

PE Film

Trademark

CHANCSMAC

Origin

China

Production Capacity

15 Sets/ Month

Product Description

Multi rip saw is equipped with multi circular saw blade on same spindle. Can cut the wide slab into several pieces at the same time. The cutting width can be adjusted accordingly. And the working thickness is from 10-70mm.
Machine test before shipment

Model	MJ-Q2-1250-70	MJ-Q2-1000-70	MJ-Q2-800-70	MJ-Q2-600-70	MJ-Q2-600-50
Max working width	1250mm	1000mm	800mm	600mm	564mm
Mini working width	100mm	100mm	50mm	50mm	50mm
Working thickness	10-70mm	10-70mm	10-70mm	10-50mm	10-50mm
Mini working length	620mm	620mm	620mm	570mm	500mm
Machine power	32.2kw	32.2kw	23.5kw	19.6kw	15.75kw
Overall size (mm)	2250x2000x1600	2250x1700x1600	2250x1500x1600	2180x1300x1600	1720x1087x1600
Total weight	1850kg	1740kg	1400kg	1250kg	620kg

Model	MJ-Q1-500-50	MJ-Q1-500-25-4D	MJ-Q1-500-25-3D	MJ-Q1-500-25-A
Max working width	500mm	500mm	500mm	500mm
Mini working width	50mm	30mm	30mm	30mm
Working thickness	10-50mm	10-25mm	10-25mm	10-25mm
Mini working length	400mm	300mm	150mm	300mm
Machine power	15.75kw	4.55kw	4.55kw	6.6kw
Overall size (mm)	1098x1039x1450	1098x1039x1450	1470x890x1050	1450x890x1323
Total weight	472kg	198kg	225kg	386kg
