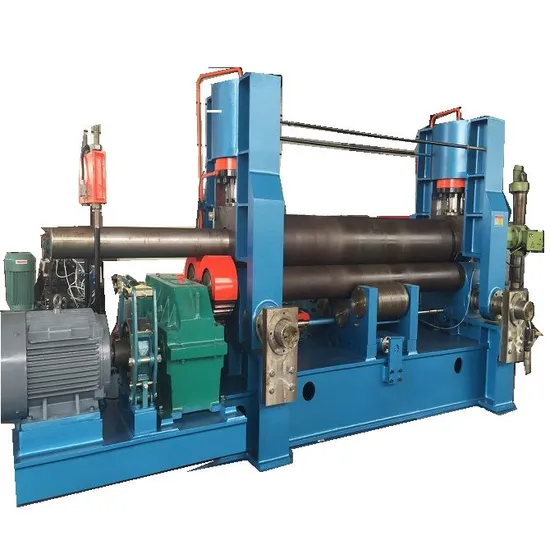

Extra Large-Size Upper-Roller Universal Plate Rolling Machine

Product Description

Up-Roller Universal Plate Rolling Machine
Product Description
Plate rolling machine: with the work roll bending sheet, and then form a shape, can form cylindrical parts, conical parts and other different shapes of parts, is a very important processing equipment.The working principle of the plate rolling machine is through the action of external forces such as hydraulic pressure and mechanical force to move the work roll, so that the plate bending or bending forming.According to the rotating motion and position change of the work roller of different shapes, the elliptic parts, arc-shaped parts, cylindrical parts and other parts can be processed.Major Component
The major structure of the device composed of up-roller part, bottom roller part, up roller level move part,support roller part, main drive part, tipping part, base board, balance part and so on.A.Up-roller part
The up-roller composed of main cylinder, bearing block of up roller, up roller, double-row ball bearing.
The two cylinder body, piston rod are all steel forging; outside surface of cylinder pump done piezo-optic treatment, the outside surface of piston rod done chromate treatment; the seals adopt YX-type seal circle. Using no stem cavity supply the work power for bending sheet plate.B.Bottom rollers and level device of up roller
The bottom rollers part composed of bottom rollers, bearing blocks of bottom rollers, input gearing of bottom rollers, slip bearings of bottom rollers and so on.
The level move part supplied power by level move motor, through worm-wheel box, screw part to let up-roller part level move, then come true the metal sheet's pre-bend.C.Support roller part
The support roller composed of support roller, nut screw part, trigonite part and so on.
D.Main drive part
The main drive part composed of main motor, shaft coupling, gear box, electro hydraulic push rod brake and so on.
E.Tipping part
The tipping part composed of ram, tipping cylinder and so on.The piston rod of tippling cylinder be done chromate treatment.The function of tippling part is to take out the workpiece from the rollers.F.Base board
Using wielding closed frame base, the function is good about bending resistance, torsion resistance, inertia moment is large, so let people easy to move and install machine.
G.Cone bend part(options)
Cone-bend part is the special spare of the rolling machine, main composed of abutment, pivoted end roller, axle sleeve, pin axle and so on. Working Principle
This model device adopts the Japanese technology. It can roll plate to cylinder, U-shape and so on. The up roller of this device can do up and down, right and left move. And all the move actions can show by figure.
The device is hydraulic 3-roller rolling machine, it used to bend plate into cylinder-shape, arc-shape in normal temperature.The up roller of the device can lift up and down, level left and right.Level move up roller to pre-bend the plate, let the up roller in asymmetrical location relative two bottom rollers.Up roller's lift movement adopts hydraulic driven, and level move adopts mechanical driven.
Product Parameters
Small size Up-Roller Universal Plate Rolling Machine

Model	Max.rolling thickness (mm)			Max.pre-rolling thickness (mm)				Plate width (mm)		Diameter of upper roller (mm)				Main motor power (kw)
W11SNC-12*2000	12			10				2000		250				5.5
W11SNC-16*2000	16			12				2000		255				7.5
W11SNC-16*2500	16			12				2500		300				11
W11SNC-18*3000	18			14				3000		350				11
W11SNC-20*3000	20			16				3000		375				15
W11SNC-25*2500	25			20				2500		380				15
W11SNC-30*2500	30			25				2500		410				22
W11SNC-30*3000	30			25				3000		450				30
W11SNC-32*3000	32			28				3000		480				30
W11SNC-35*2500	35			30				2500		460				30
W11SNC-35*3000	35			30				3000		510				37
W11SNC-40*2500	40			35				2500		500				37
W11SNC-40*3000	40			35				3000		540				45

Middle size Up-Roller Universal Plate Rolling Machine

Model	Max.rolling thickness (mm)			Max.pre-rolling thickness(mm)				Plate width(mm)		Diameter of upper roller(mm)				Main motor power(kw)
W11SNC-40*4000	40			32				4000		610				45
W11SNC-45*3000	45			40				3000		590				45
W11SNC-45*4000	45			40				4000		660				45
W11SNC-50*4000	50			45				4000		700				55
W11SNC-55*3000	55			45				3000		620				55
W11SNC-55*4000	55			50				4000		750				55
W11SNC-60*3000	60			50				3000		650				55
W11SNC-60*4000	60			55				4000		780				75
W11SNC-65*4000	65			60				4000		810				75
W11SNC-70*3000	70			60				3000		710				75
W11SNC-70*4000	70			65				4000		820				75
W11SNC-75*3000	75			65				3000		740				75
W11SNC-80*3000	80			70				3000		760				75
W11SNC-80*4000	80			75				4000		860				90
W11SNC-90*3000	90			80				3000		790				90
W11SNC-100*3000	100			90				3000		820				90

Big size Up-Roller Universal Plate Rolling Machine

Model	Max.rolling thickness (mm)			Max.pre-rolling thickness (mm)				Plate width(mm)		Diameter of upper roller (mm)				Main motor power (kw)
W11SNC-110*4000	110			90				4000		940				90
W11SNC-120*3000	120			100				3000		860				90
W11SNC-120*4000	120			100				4000		990				110
W11SNC-130*3000	130			110				3000		960				2*75
W11SNC-160*3000	160			120				3000		1080				2*75
W11SNC-160*4000	160			130				4000		1260				2*90

Detailed Photos
