| US$4,000.00 | 1 Piece (MOQ) |

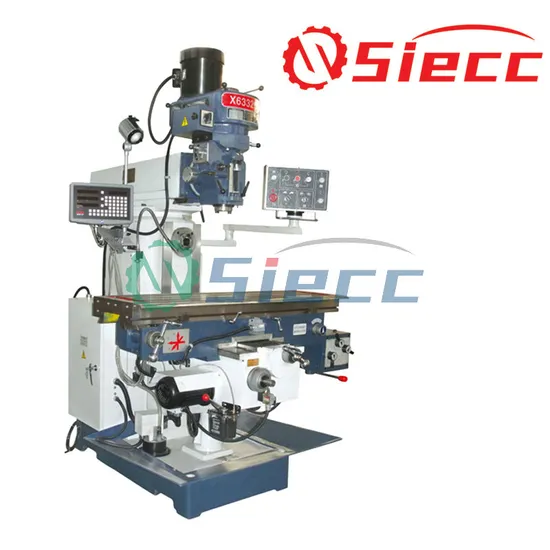

| Specifications | Unit | X6336 |
| Table size | mm | 1600×360 |
| Table travel (X/Y/Z) | mm | 1300/320/450 |
| Table feed. (X/Y/Z) | mm/min | 30-750/20-500/15-375 |
| Table rapid speed (X/Y/Z) | mm/min | 1200/800/600 |
| Spindle taper | 7:24 IS050 (H) 7:24 IS040 (V) | |
| Stroke of spindle quill | mm | 127 (V) |
| Distance between spindle nose and table surface | mm | 200-650 |
| Distance between horizontal spindle center line and table surface | mm | 20-470 |
| Distance between horizontal spindle center line and arm surface | mm | 245 |
| Spindle speed range | 12steps 60-1800 (H) 16steps 65~4660 (V) | |
| T-slots(NO./width/pitch) | mm | 3/18/80 |
| Arm travel | mm | 550 |
| Main motor power | Kw | 5.5 (H) 3.7 (V) |
| Torque of X/Y/Z axis AC servo motor | N.m | 10 |
| Overall size | mm | 2520×2100×2500 |
| Net weight | kg | 2850 |
