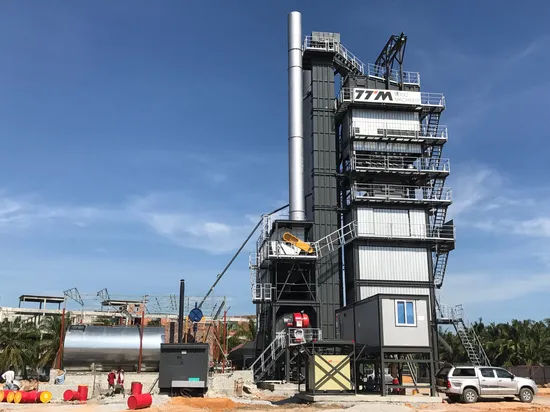

LB3000 Pavement Machinery Asphalt mixing plant

Product Description

(We can supply large range of stationary asphalt mixing plant, from 48 tons per to 320 tons per hour) --------240t/H Asphalt Mixing Plant (LB-3000)--------- 1). Type: LB-3000 2). Production: 240t/h 3). Hot Agg Bin: 50 m3 4). Capacity: 3000 kg 5). Finished Storage Bin: 100 t/200 t -------------Main Feature----------- 240t/H Asphalt Mixing Plant (LB-3000) 1). The feeding belt is designed with baffles, which makes material feeding system steady and smooth. 2). The optimized flights structure of drying drum makes the drying system more effective and stable 3). The hot elevator adopts the double Gall's chain for hoisting, which not only prolongs the service life of the hoisting machine but also improves the running stability 4). The linear-mode screen driven by imported vibrator improves the screening efficiency and reduces the failure rate of plant 5). Large capacity hot aggregate bin makes operation more convenient 6). Our unqiue designed paddles and the powerful mixer allow the mixing operation easier, effective and reliable 7). Dual-stage dust removal system and negative pressure dustproof design make our asphalt mixing plant ecofriendly and economical 8). The computer-controlled system, auto/manual switchable, and auto self-diagnosis program makes the operation easy and safe 9). Overall modular design makes the transportation and installation more convenient and fast 10). The RAP interface is reserved for upgrade hot RAP facilities
Factory Technology

Company honor
------------Service-------------- ----240t/H Asphalt Mixing Plant (LB-3000)
Fujian TTM have after staff over 80 persons now, unified manage and deployment by the specialized agencies-customer service center, and establish a detailed customer files. The electrical and mechanical after service engineer's technical level and skill were fully qualified for the installation, adjustment, commissioning, training and advice the user's operators, administrators and provide free technical advisory services etc. --------Service contents--------:
--Installation and commissioning and acceptance 1). Our company will offer the buyer assistance of the equipment installation, commission; 2). Each unit after installation will have returning visit by specialized departments; --Technical material, warranty and free service 1). We will offer the buyer free training for their operator and maintenance worker, and also provide free technical advice services; 2). And company will organize technology training courses regularly, and give free training the buyer's operator. --Spare parts supply services in time Our company offers the original, authentic, quality spare parts for the machine maintenance accessories. --------------Environment Protection----------- 240t/H Asphalt Mixing Plant (GLB-3000) 1). Total dust collection with 1st-level inertial collecting, 2ND-level bag house and dust collecting modules for various portions of facilities. 2). We establish environment protection concepts according to the European standards to achieve in dust emission, acid emission and noise control, etc. 3). The facilities are in green harmony with the environment wherever we go.

GLB Series(bottom type finished storage silo)
Type	Production	Hot Agg Bin	Capacity	Finished Storage Bin	Weighing Accuracy
LB-600	48 t/h	7 m 3	600 kg	30 t	Aggregate: ± 0.5% Filler : ± 0.25% Bitumen : ± 0.25%
LB-800	64 t/h	7 m 3	800 kg	30 t
LB-1000	80 t/h	10 m 3	1000 kg	50 t
LB-1200	96 t/h	10 m 3	1200 kg	50 t
LB-1500	120 t/h	30 m 3	1500 kg	50 t
LB-2000	160 t/h	50 m 3	2000 kg	100 t/200 t
LB-2500	200 t/h	50 m 3	2500 kg	100 t/200 t
LB-3000	240 t/h	50 m 3	3000 kg	100 t/200 t
LB-4000	320 t/h	75 m 3	4000 kg	100 t/200 t/300 t

---
