New Style Circulating Heating Automatic Food Dehydrator Banana Chips Mango Vegetable Dryer Fruit Dryer Machine

Product Description

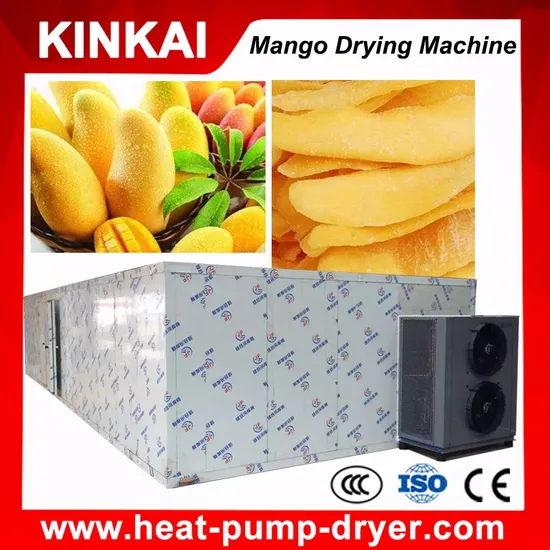

KINKAI Fruit Dryer Machine Introduction
KINKAI Heat pump fruit dryer machine takes advantage of the reversed Carnot principle, absorbing the heat from around and sending the heat to the materials which will be dried. This kind of dryer is mainly composed of heat pump dryer and drying chamber. This dryer will be controlled by touch screen controller, and the temperature can be adjusted. It has low electric consumption.
Features of KINKAI Fruit Dryer Machine 1) Horizontal Blowing 360ºC, by using the forced ventilation function, there are partition sheet and fan motors inside the drying chamber to make sure hot air cycle, so ensure a high drying efficiency and save energy, lead to a uniform drying.
2) It's batch operation, so can adjust process condition anytime. Thus can change product from time to time
3) Dry material in tray, easy for load and unload, not easy cause any damage for the raw material, clean conveniently.
4) With low noise and steady operation, and the temperature can be controlled by PLC touch screen controller.
5) It has low electric consumption.
6) The temperature: 10-75°C, Max 75°C, similar nature drying.
Technical Parameters

Single Dryer + Drying Chamber
Model	Unit	JK03RD	JK06RD	JK12RD
Power Input	KW	4.8	8.5	15
Power Supply	V/PH/HZ	380V/3PH, 50/60HZ	380V/3PH, 50/60HZ
		220V/1PH, 50/60HZ
Rated Current	A	9.6A(380V), 22A(220V)	17	30
Heating Capacity	KW	10.5	21	42
Cooling Capacity	KW	7.8	18	32
Dehumidify	L/H	12	25	50
Max. Temperature	ºC	≤75	≤75	≤75
Working Condition	ºC	0-43	0-43	0-43
Electric Shock Protection Grade		I	I	I
Max. Exhause Pressure	Mpa	3	3	3
Noise	dB(A)	75	75	75
Power Consumption/ H	KWH	4.8	8.5	15
Electric Heater	KW	3	6	12
Blowing Type	/	Horizontal Blowing 360ºC
Dimension Of Dryer	MM	1675x860x1280	1760x1060x1280	2120x1360x1590
Weight	KG	295	385	540

Our Factory
Our Product Certificate
Delivery and package
For heat pump dryer parts---with plywood
For drying chamber +trolleys
If shipped with 20ft container or 40ft container, no packing
If shipped with LCL( less than container load), packed in plywood
Our Service
A. Technical service
1, We calculate the capacity and recommend the best models.
2, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
3, We supply the spare parts and technical support in & after the warranty time.
4, We supply the training course to your workers at our factory if you need. B. After-sales service
1, Technical support for your installation, operation and maintenance.
2, One year's warranty, and you can pay for extended warranty.
3, Spare parts and technical support at most economic prices after the warranty.

---
