US$0.10
|
1,000 Pieces
(MOQ)
|
Basic Info.
Certificate
ISO9001, ISO14001, Ts16949
Transport Package
Plastic Box, Carton
Production Capacity
30000PCS/Day
Product Description

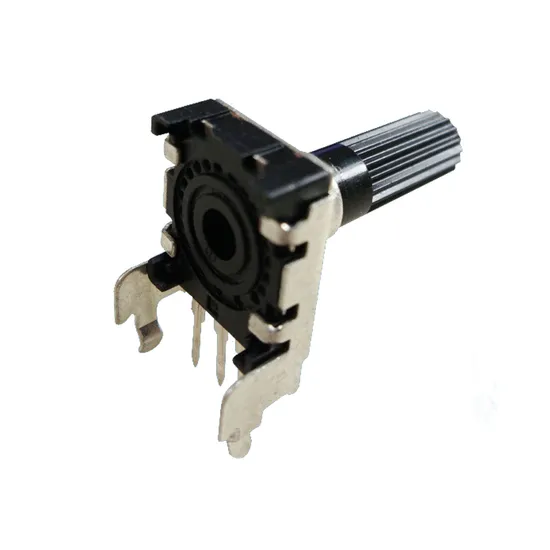

Encoder, rotary encoders, incremental encoder, audio encoder, 12mm rotary encoder
Bosin electronics is a manufacturer specializing in rotary encoders, potentiometers and switches. Our company passed ISO9001, ISO14001, ISO/TS16949.
Please check below specification.
| 1.Electrical Characteristics for rotary encoder |
1.1 Rated Power: DC 5V 10mA (1mA Min) 1.2 Fluttering: T1, T3<3ms 1.3 Insulation Resistance: More than 10MΩ at DC50V 1mA 1.4 Withstand voltage:1 minute at AC 50V 1mA 1.5 Sliding Noise (Bounce): T2<2ms 1.6 Phase Difference: >0.08T |
| 2.Mechanical Characteristics |
2.1 Rotational Torque of Detent: 50gf.cm~150gf.cm (at 5~35°C) 2.2 Rotational Torque: 10gf.cm~90gf.cm 2.3 Total Rotational Angle: 360° Continuous 2.4 Number and Position of Detent: 12 Detents (Angle: 30°±3°) 24 Detents (Angle: 15°±3°) 2.5 Push-Pull Strength of shaft: 5.0Kgf Min |
| 3.Endurance Characteristics |
| 3.1 Rotational Life: 15,000 Cycles Min |
| 4.Switch Characteristics |
4.1 Contact resistance: 100mΩ Max 4.2 Maximum ratings: DC 5V, 10mA (1mA Min) 4.3 Insulation resistance: More than 10MΩ at DC 50V, 1mA 4.4 Withstand voltage: 1 minute at AC 60V 1mA 4.5 Travel: 0.5+0.4/-0.3 mm 4.6 Operating Force: 550±300gf |
Factory
Dongguan Bosin Electronic CO.,LTD. are mainly engaged in developing, producing and marketing high-performance industry rotary encoder,potentiometer,switches,DC motor.passed ISO9001, ISO14001, ISO/TS16949.
With the strong R&D team ,our company have gained several proprietary intellectual property rights,seven software copyrights and one patent have been achieved . Three patents for invention are applied on the way.
>>
