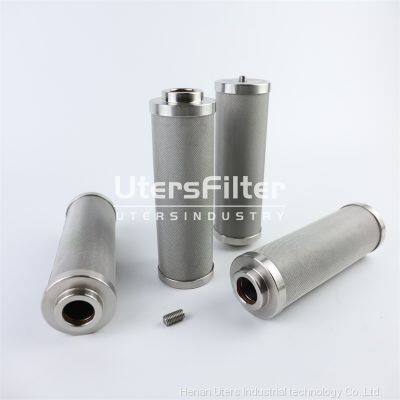

INR-S-0085-ST-NPG-F UTERS replace of INDUFIL Gas Coalescing Filter Cartridge
The coalescence filter element is processed by a variety of composite materials through a special process. It has hydrophilic characteristics. It can not only filter out the mechanical impurities in the medium, but also remove the emulsified water from the medium through demulsification and coalescence. The filter element is separated and coalesced into larger water droplets to facilitate further purification of the medium.
Product advantages
The glass fiber coalescing filter element is a high-density gradient glass fiber, which efficiently coalesces liquid mist and droplets in the airflow, and has high filtration accuracy. The structure is stable, there is no media fiber shedding, and it will not cause pollution to the environment and downstream products. It has good compatibility with various fluids; good environmental protection, 100% synthetic material, completely burned without residue.
Product specifications
The outer diameter is 3.5 inches, 4.5 inches, 6 inches;
Length 16, 18, 20, 32, 36, 40, 72 inches
Filter frame material-stainless steel and carbon steel
Product performance
The accuracy range is less than 0.3 micron, 0.3 micron, 0.5 micron, 1 micron, 5 micron, 10 micron
Initial pressure difference ≤0.15psig
Replacement pressure difference<0.6psig
Operating temperature 0~150℃
Scope of application
1. Aviation fuel, gasoline, kerosene, diesel;
2. Liquefied petroleum gas, stone tar, benzene, toluene, xylene, cumene, polypropylene, etc.;
3. Turbine oil and other low viscosity hydraulic oil and lubricating oil;
4. Cycloethane, isopropanol, cycloethanol, cycloethyl ketone, etc.;
5. Other hydrocarbon compounds
Package Pictures
Why choose us?
1) Professional hydraulic filter manufacturer ,own factory ,has a professional team .
2) Small piece of sample can be free.
3) Competitive prices and timely deliver.
4) Quality guaranteed and thoughtful after-sales service .
5) Accept any quality tests .
Trade & Market :
Over several years development , our products have reached the domestic and international advanced level in the same industry . our products are exported to Britain ,Australia,India ,Canada and other countries and regions ,the excellent quality has gotten high prise by the domestic and foreign customers ,if any new inquiry ,welcome here .
