600W Home Use Spiral Vertical Axis Wind Turbine / Wind Power Generator System

US$220.00-300.00 1 Piece (MOQ)

Basic Info.

Model NO.

RC-600SV

Output Type

AC Three Phase

Number of Blade

Multiple-Blade

Rotating Shaft

Vertical

Stress Way of Blade

Resistance

Power

600W

Phase

3-Phase

Certification

CE, ISO, RoHS

Rated Voltage

12V/24/48V AC

Start-up Wind Speed

2.5 M/S

Rated Wind Speed

12m/S

Survival Max. Wind

45m/S

Number of Blades

Rotor Height

1.28m

Rotor Diameter

0.65m

Blade Material

Casting Aluminum Alloy

Tower Connector

Flange

Generator Type

3-Phase Maglev with High Performance Neodymium Mag

Generator Case

Casting Aluminum Alloy

Controller Type

PWM/MPPT

Flange Size *

DN40

Tower Type *

Guy Cable Tower

Product Life

15 Years

Transport Package

CTN

Specification

24kg

Trademark

RexCo

Origin

China

HS Code

8502310000

Production Capacity

5000

Packaging & Delivery

Package Size

127.00cm * 31.00cm * 31.00cm

Package Gross Weight

27.000kg

Product Description

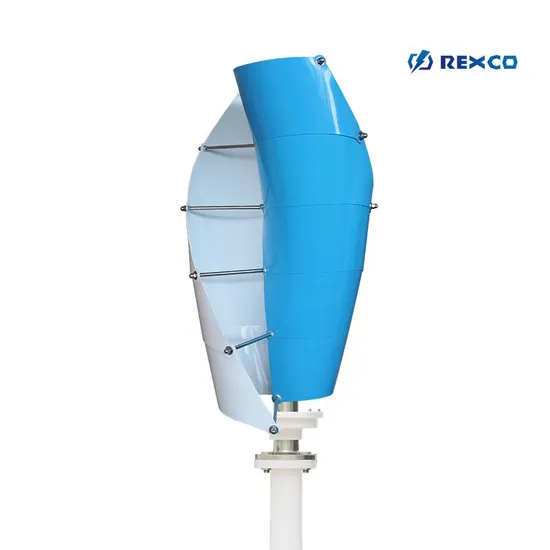

600W Home Use Spiral vertical Axis Wind Turbine / Wind Power Generator System:
Detailed Photos
Product Parameters 1,Vertical axis wind turbine are better able to harvest turbulent air flow found around buildings and other structures.
2,VAWTs are ideal for both rural and urban applications, including roof top installations. Depending on the shape of the roof, the wind flow over the roof can be concentrated, leading to an increased energy output.
3,Installation and use is simple.

Model	RC-600SV
Rated Output	600W
Peak Output	610W
Rated Voltage	12V/24/48V AC
Start-up Wind Speed	2.5m/s
Cut-in Wind Speed	3.5m/s
Rated Wind speed	12m/s
Survival Max. wind	45m/s
Number of Blades	10
Rotor Diameter	0.65m
Rotor height	1.28m
Blade Material	Casting aluminum alloy
Generator Type	3-phase Maglev with high performance Neodymium Magnets
Generator case	Casting aluminum alloy
Controller Type	PWM/MPPT
N.W	24kg
Tower Connector	Flange
Flange Size *	DN40
Tower Type *	Guy Cable Tower
Tower Size *	3mX2, φ76*4mm
Working Temp. range	from -40°C to 60°C
Product Life	15 years
Warranty	1 years
Applications	solar & wind hybrid lighting, off-grid power system etc.
