Flygoo Oxygen Concentrator Purity Meter Measures Oxygen Purity From 20.5-99.9%

US$320.00 2 Pieces (MOQ)

Basic Info.

Model NO.
FG-100-O2
Brand
Flygoo
Customized
Customized
Portable
Portable
Certification
CE, RoHS
Gas
O2
Type
Oxygen Purity Analyzer
Model
Fg-100-O2
Range
20.5 % ~99.9 %
Measurement
Ultrasonic
Repeatability
<± 1%
Accuracy
<± 1% Fs
Analog Output
4-20mA
Operating Ambient Humidity
5~80%Rh
Temperature
-40°c~+85°c
Response Time
T90 ≤ 30 Seconds
Embedded Installation
150*75mm
Weight
2.0kg
Power Supply
110-220VAC
Max. Pressure
14psi (1bar)
Input Flow Rate
0.2L-3.0L/Min
Sampling Method
Flow Type
Transport Package
Carton Case
Specification
150*75*120mm
Trademark
FG
Origin
China
HS Code
9027100090
Production Capacity
100 Pieces / Month

Packaging & Delivery

Package Size
20.00cm * 10.00cm * 18.00cm
Package Gross Weight
6.000kg

Product Description

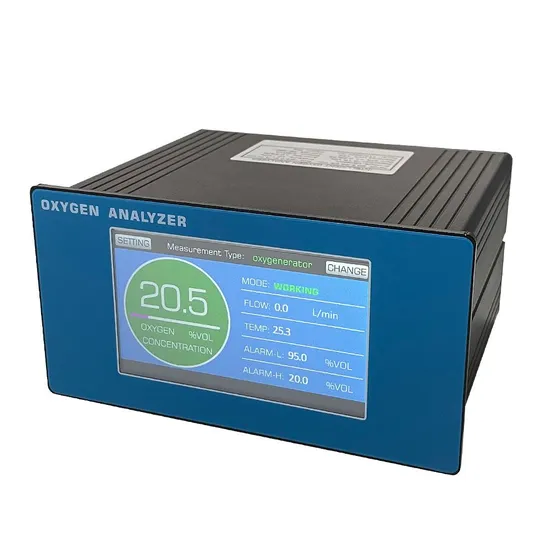

Flygoo Oxygen Concentrator Purity Meter Measures Oxygen Purity From 20.5-99.9%
Product Description Online oxygen purity analyzer measures oxygen purity from 20.5-99.9% at flows up to 3 L/Min. Perfect for verifying oxygen purity from your oxygen generator real-time.
Product Feature 1.The measurement range is 20.5-99.9% O2 2. Adopting original imported gas sensors, with accurate measurement results 3. The entire machine meets EMC design standards 4. Signal output 4-20mA and RS485 digital signals 5. Long calibration interval, high accuracy, stability and reliability 6. Touch screen operation interface 7. Longer service life and faster response speed
Product Parameters
Model FG-100-O2
Concentration Indication Range 20.5 % ~99.9 %
Measurement Principle Ultrasonic
Repeatability <± 1%
Measurement Accuracy <± 1% FS
Analog output 4-20mA
Operating Ambient Humidity 5~80%RH
Environmental Temperature -40°C~+85°C
Response Time T90 ≤ 30 Seconds
Dimension 150*75*120mm
Embedded Installation 150*75mm
Weight 2.0KG
Power Supply 110-220VAC
Max. Pressure 14Psi (1Bar)
Input Flow Rate 0.2L-3.0L/min

Sampling method 		Flow type
Detailed Photos
Front Side
Back Side
