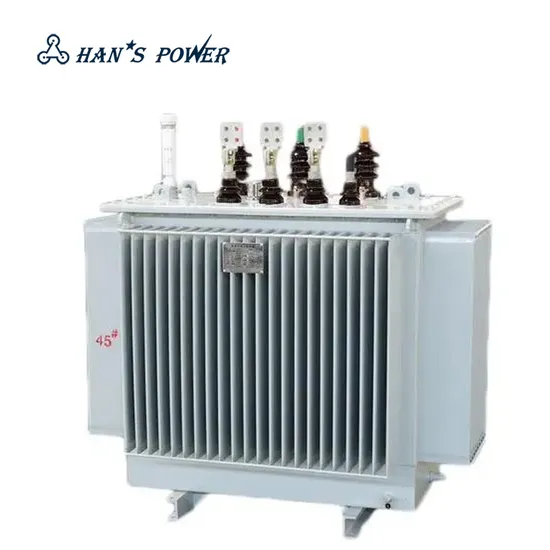

S11-M 3 Phase 30-3150kVA Oil Immersed Distribution Transformer

Product Description

Overview
S(B)11/13/20/22-M
Fully sealed oil immersed transformer
Capacities from 100kVA to 10000kVA

Product Description Features:
Voltage level: 10~35/0.4kV Capacity: 30~3150kVA With silicon steel laminated iron core, three-phase balance, no third harmonic. Significant reduction in no-load loss and no-load current, with excellent energy saving effect. Fully sealed oil tank and vacuum oil injection technology prevent oil aging, no oil leakage, and maintenance free. External corrugated heat sink for oil tank, good heat dissipation and adjustable oil volume change, no need to install oil storage tank. The high and low voltage leads are soft connected, equipped with pressure release valve and temperature measuring device to ensure the safe operation of the transformer. High ignition point oil can be filled according to user's requirements, safer and more reliable, with a long service life. Range of application:
Suitable for urban and rural power grid construction and renovation projects, as well as other distribution engineering projects, such as high-rise buildings, densely populated residential areas, important government agencies, airports, subways, stations, ports, petrochemicals, metallurgical mining, power plants, and places that require fire and explosion prevention.
Specifications

Roted capacity (kVA)	Voltage combination			Conntction	No-load loss (W)				Load loss (W)			No-load current (%)				Short circuit impedance (%)	Weight (KG)
	High voltoge (kV)	Topping range (%)	Low voltage (kV)		11#	13#	20#	22#	11/13#	20#	22#	11#	13#	20#	22#		11#	13#	20#	22#
30	6 6.3 6.6 10 10.5 11	±5 or ±2X2.5	0.4	Dyn11 or Yyn0	100	80	70	65	630/600	505/480	455/430	0.3	0.3	0.24	0.23	4	280	290	450	460
50					130	100	90	80	910/870	730/695	655/625	0.24	0.23	0.24	0.23		350	385	470	480
80					180	130	115	105	1310/1250	1050/1000	945/900	0.22	0.18	0.21	0.20		440	465	690	710
100					200	150	135	120	1580/1500	1265/1200	1140/1080	0.21	0.16	0.21	0.20		490	545	865	885
125					240	170	150	135	1890/1800	1510/1440	1360/1295	0.2	0.15	0.19	0.18		600	610	935	955
160					280	200	180	160	2310/2200	1850/1760	1665/1585	0.19	0.14	0.18	0.17		670	695	1020	1050
200					340	240	215	190	2730/2600	2185/2080	1970/1870	0.18	0.12	017	0.16		760	860	1150	1250
250					400	290	260	230	3200/3050	2560/2440	2300/2195	0.16	0.12	0.14	0.13		880	1000	1450	1550
315					480	340	305	270	3830/3650	3065/2920	2760/2630	0.16	0.11	0.13	0.12		1030	1145	1750	1850
400					570	410	370	330	4520/4300	3615/3440	3250/3095	0.16	0.11	0.13	0.12		1230	1345	2275	2450
500					680	480	430	385	5410/5150	4330/4120	3900/3710	0.16	0.1	0.12	0.11		1410	1580	2310	2480
630					810	570	510	460	6200	4960	4460	0.15	0.09	0.12	0.11	4.5	1800	2020	2650	2790
800					980	700	630	560	7500	6000	5400	0.15	0.09	0.1	0.1		2020	2300	3210	3360
1000					1150	830	745	665	10300	8240	7415	0.14	0.09	0.1	0.09		2250	2430	3750	3950
1250					1360	970	870	780	12000	9600	8640	0.13	0.08	0.1	0.09		2620	3070	4370	4520
1600					1640	1170	1050	940	14500	11600	10440	0.12	0.07	0.09	0.08		3030	3705	5150	5300
2000					1940	1550	1225	1085	18300	14640	13180	0.11	0.09	0.09	0.08	5.5	3570	3855	6350	6450
2500					2290	1830	1440	1280	21200	14840	13360	0.11	0.08	0.09	0.08		4120	4560	7200	7400
3150					2750	2200			24100			0.11	0.08			6	5100	5500
