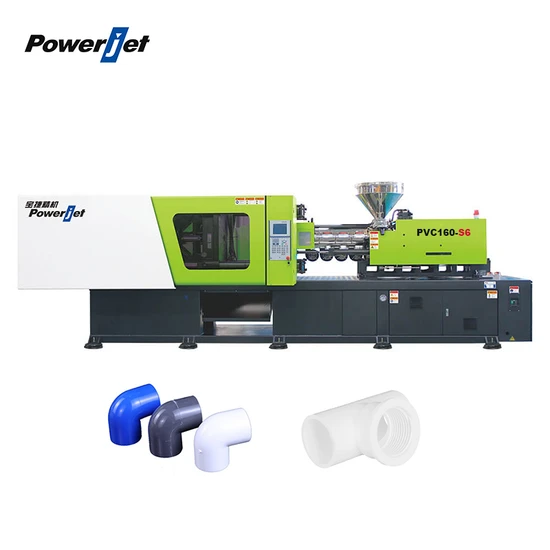

Horizontal PVC Plastic Injection Machine 170 Tons

Product Description

Products Description
PVC Fitting Injection Molding Machine
Powerjet new type PVC fitting injection molding machines are specialized for different sizes of PVC fitting. Saving 30%~50% of energy by using a servo motor and more device options are available to fulfill customer requirements.
Clamping Force - 90~680(Ton)
Shot Weight(PVC) - 179~2847(g)
Applications - PVC Fitting




Product Paramenters

	DESCRIPTION	UNIT	PVC160-V6/S6
CLAMPING UNIT	Clamping Force	kN	1600
	Opening Stroke	mm	440
	Max. Daylight	mm	940
	Movable Platen Size	mm	705X705
	Space Between Bars	mm	460X460
	Max.Mold Height	mm	500
	Min. Mold Height	mm	160
	Ejector Stroke	mm	140
	Ejector Force	kN	49
INJECTION UNIT	Screw Diameter	mm	45	50
	Screw L/D Ratio	L/D	22	17.4
	Injection Pressure	Mpa	185	150
	Shot Volume	cm³	326	403
	Shot Weight(PVC)	g	291	360
		oz	10.3	12.7
	Injection Speed	g/s	116	160
	Plasticizing Capacity	g/s	24	34
	Screw Stroke	mm	205
	Screw Speed	rpm	165
POWER UNIT	Hydraulic System Pressure	Mpa	17.5
	Pump Motor Power	kW	15/16.1
	Heater Power	kW	12
GENERAL	Oil Tank Capacity	L	260
	Machine Weight	T	4.6
	Machine Dimensions(L*W*H)	m	4.8X1.75X1.8

Why Choose Us
POWERJET PLASTIC MACHINERY CO., LTD. is a high and new technology enterprise of R&D, manufacturing, sales, after-sales service of injection molding machine and blow molding machine. Powerjet was founded in 2000,occupying an area of 130,000 square meters. Annual production capacity has reach to 4000-5000 injection sets of. More than 20 offices have been set up in the global market, machines have been exported to more than 60 countries in the world. The machine specifications are complete, adapt to a variety of industries, cost-effective, and create high returns for customers. One-stop whole-process caring service.
Established distributors in multiple countries like Thailand, Malaysia, Indonesia, Vietnam, Uzbekistan, USA, Mexico, Brazil, and Pakistan, etc. With a global sales network, our local offices and agents can provide more convenient and sincere services. Agent In Worldwide
Setting Up Agent In More Than 20 Countries For Sales And Support
Lifetime Support
24 Hours Online Service And Overseas Installation & Maintenance
Spare Parts
We Supplying Screw, Motor, Control Panel And Plastic Mold For Machines
Operation Training
Support Training To Engineer For Setup, Processing & Troubleshooting
Plastic Mold Testing
Provide Testing Mold Service Before Customer Receiving The Machine
Project Cases


FAQ
Q1: Are you a manufacturer or trading company?
A1: We are a factory for plastic machines. Over 20 Years Experience In Manufacturing Injection Molding Machine And Blow Molding Machine.
Q2: Delivery time
A2: Normally Machine Delivery from the factory in 0-60 days after receiving the down payment. (During Chinese Public Holidays like National Day or Chinese New Year, the delivery time should be 10-30days longer accordingly).
Q3: Where is your factory located?
A3: Our factory is located in No.5 Chuangxin Xi Road, Leping Town, Sanshui District, Foshan City, Guangdong Province, China. 1h drive from Guangzhou to our factory. Welcome to visit our factory.

---
