Xq6032 Good Quality Horizontal Milling Machine for Sale

Product Description

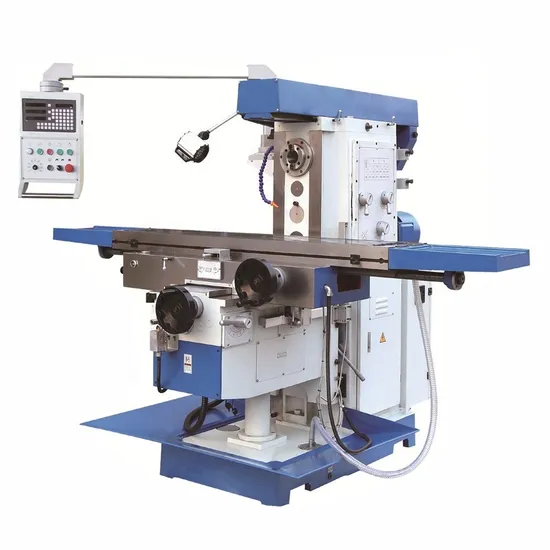

XQ6032 Good Quality Horizontal Milling Machine for Sale
Product Description

√ wide range 12 steps spindles speed, driven by gearbox directly, ensures powerful milling√ X/Y/Z-axis feedings are driven by servo motor, good accuracy & low noise√ machine is easy to operate (as shown in figure: A knob select manual / automatic feeding mode, B lever select X/Y/Z feeding, C lever select +/- feeding direction)√ brief design control panel, easy to operate√ water cooling system, lubrication system are included


Product Parameters

Items	XQ6032	XQ6032A	XQ6032B	XQ6032C
Working area
Worktable size (L×W)	1270x320mm	1370x320mm	1270x320mm	1370x320mm
T slot (Width x No. x pitch)	14x3x80mm
Max. load of table	300kg
Table rotation	optional: ±45˚
Distance from horizontal spindle axis to table surface	65-465mm
Travels
Worktable longitudinal travel (X)	720mm	820mm	900mm	1000mm
Worktable cross travel (Y)	300mm (If with DRO:280mm)		380mm (If with DRO:360mm)
Worktable vertical travel (Z)	400mm
Spindle
Spindle speed	12 steps; 35-1500rpm
Spindle taper	7:24, ISO40
Motor power	3kW
Feed
Rapid feed (X/Y/Z)	1335/1335/1000mm/min
Feed range (X/Y)	30-830mm/min
Feed range (Z)	23-625mm/min
Others
Machine size (L×W×H)	1720x1680x1730mm	1820x1680x1730mm	1720x1680x1730mm	1820x1680x1730mm
Net weight	1500kg	1550kg	1600kg	1650kg

Standard Configuration

No.	Item	Specification
1	lubrication system with manual oil pump	-
2	water cooling system with spray nozzle	-
3	work lamp	-
4	horizontal milling arbor	φ27
5	machine vise	5"
6	draw bar	-
7	tools & metallic tool box	-

Optional Configuration

No.	Item	Specification
1	3-aixs Digital Read Out	-
2	Dividing head	100mm
3	Rotary table	160mm
4	Machine vise	6"
5	Clamping kits	-
6	New design aluminum hang arm	-
7	±45° titling work-table	-
8	Worktable protection cover	-
9	LED work lamp	-
10	Automatic centralized oil lubrication	-
11	Schnider electric components	-

Packaging & Shipping
Delivery time: generally 60 days production time after confirmation of orderPacking type: machine is covered with damp-proof plastic film, then packed in plywood case (with steel pallet)Delivery type: 20GP container is enough to load
Certifications
products are strictly according to European standard, with CE certificate


Company Other Products

Company has mainly 12 series products include hundreds of models:
CNC gantry type machining center,
VMC machining center,
Simple NC milling machine,
conventional Vertical milling machine,
conventional Horizontal milling machine,
conventional Universal swivel head milling machine,
conventional Sliding ram milling machine,
conventional Bed type milling machine,
conventional Tool milling machine,
conventional Gantry milling machine etc.
FAQ
1. What is the MOQ ?Minimum order quantity is 1 set.2. What is the payment term ?Usually we prefer T/T. 30% deposit, 70% balance payment against machine ready to delivery photos and videos.Other payment terms are also acceptable after discussion.3. What is the trade terms ?Usually is FOB.Others like CIF, CFR, EXW...... are also acceptable.4. How long is the guarantee ?12 month after machine's delivery from factory.Within warranty, we guarantee spare parts free of charge and online supports for installation, operation, maintance and trouble shooting etc.5. What kinds of machines do you supply?Company specialized in producing CNC & manual milling machines. Include:CNC gantry machining centerVertical machining centerSimple NC milling machineConventional manual milling machines (Vertical, Horizontal, Universal, Turret mill, Swivel head mill, Power sliding ram type, Bed type, Tool milling machine, Gantry type etc.)5. How can I believe your company ?XILI Machine Tool has more than 20 years milling machine production history, covers an area of about 50000 square meters, with 20 million CNY fixed assets and more than 200 employees.Xili Machine Co., Ltd. is a ISO9001 company, all products are with CE certificate.Welcome your inquiry and visiting.

---
